| 制造商 | Amphenol Corporation |

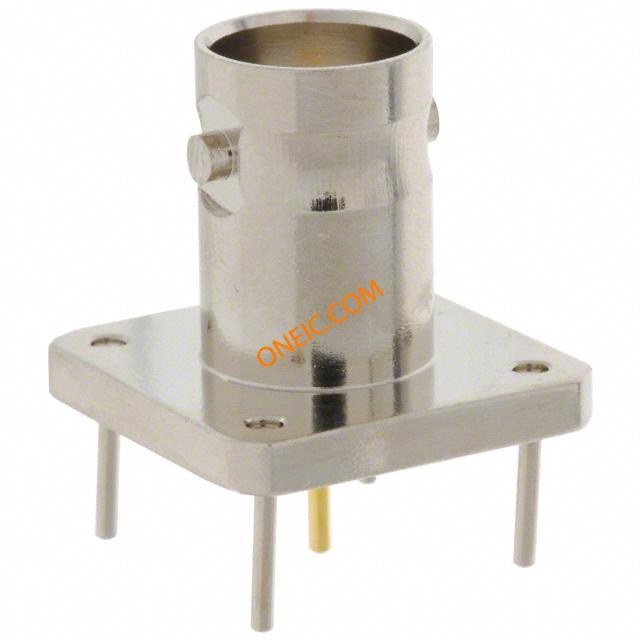

| 描述 | Conn BNC RCP 0Hz to 4GHz 50Ohm Solder ST Thru-Hole Gold CONN BNC JACK STR 50 OHM PCB connector;rf coaxial;bnc str pcb mount recept jack;sq flange;4 legs;.690 length RF Connectors / Coaxial Connectors BNC ST PCB JACK 50 OHM TF SQUARE RF/COAXIAL, BNC JACK, STR, 50 OHM, SOLDER connector, rf coaxial, bnc str pcb mount recept jack, sq flange, 4 legs, .690 length |
| 分类 |
商业参数
| 产品 | PCB Connectors | 其他名称 | ACX1053 |
| 零件号别名 | 319-0047 99H4450 | 产品类别 | RF Connectors / Coaxial Connectors |
| 标准包装数量 | Bag | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85366910 | ||
电气参数
| 频率 | 0 to 4 GHz | 阻抗 | 50 Ohm |
| 额定电压 | 500V | 耦合系数 | Bayonet |
| 最大频率 | 4GHz | ||
机械参数
| 深度 | 17.5 | 高度 | 15.88 |
| 重量 | 0.328048 oz | 包装方式 | Bulk |
| 电缆类型 | :- | 本体表面处理 | Nickel |
| 方向 | Straight | 端接方式 | Solder |
| 基体材料 | Brass | 外壳颜色 | Silver |
| 安装类型 | Through Hole | 行程角度 | Straight |
| 连接器类型 | Jack, Female Socket | 接触镀层 | Gold |
| 紧固类型 | Bayonet Lock | 外壳涂层 | Nickel |
| 壳体镀层 | Nickel | 连接器样式 | BNC |
| 连接器用途 | Bayonet | 触头材料 | Phosphor Bronze |
| 壳体材料 | Brass | 总长度 | 17.5 |
| 主要材料 | BNC | 端接样式 | PCB - Through Hole |
| 屏蔽层端接方式 | Solder | 接触件端接 | Solder |
| 介电材料 | Polytetrafluoroethylene (PTFE) | 绝缘材料 - 类型 | Polytetrafluoroethylene |
| 中心触点镀层工艺 | Gold | 中心触点材料 | Phosphor Bronze |
| 供应商器件封装 | :Straight Jack | ||
产品信息
| 类型 | BNC | 连接器性别 | RCP |
| 系列 | :- | 极性 | Standard |
| 连接类型 | PCB | 射频系列/标准 | BNC |
| 应用细节 | Commercial | ||
环境参数
| 插拔次数 | 500 | 工作温度 | - 65 C to + 165 C |
文档与媒体
