10120-3000PE
| 制造商 | |
| 描述 | Conn SCSI PL 20 POS 2.54mm Solder Cup ST Cable Mount 20 Terminal 1 Port D-Sub Micro-D Connectors 2OP PLUG WIREMOUNT MDR Wiremount Plug, Solder, Shielded CONN MDR PLUG 20POS SLD CUP 20 way shielded I/O solder plug,1A MINI D RIBBON CONN, PLUG, 20POS, SOLDER Conn;D-Sub;Mini-D-Ribbon;CablePlug;20Pos;STR;101Series;Solder;30-24AWG;0.050In. Connector: MDR; plug; male; shielded; PIN:20; 1.27mm; 24÷30AWG; 1A MDR plug 20P, 10120-3000PE, 3M 3M 101 系列 电缆安装 20 路 焊接 D-sub 连接器 插头 , 1A |
| 分类 |
商业参数
| 零件号别名 | 54548623744945 54745239793 54862374494 JE150332821 JE150429981 | 产品类别 | D-Sub Micro-D Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | RoHS Compliant | 标准 | UL94V-0 |
| 海关税号 | 85369010 | 材料阻燃等级 | UL94V-0 |
电气参数
| 测试电压 | 0.5kV | 最大额定电流 | 1 A |
| 触点额定电流 | 1A | 连接器类型 - 电压输入 | shielded |
机械参数
| 深度 | 19.3mm | 间距 | 2.54 mm |
| 宽度 | 9.1mm | 长度 | 22mm |
| 重量 | 0 | 包装方式 | Bulk |
| 导线线规 | 30-24 | 端接方式 | Solder Cup |
| 柱间距 | 1.27mm | 基体材料 | polyester |
| 安装类型 | Cable Mount | 行程角度 | Straight |
| 连接器类型 | Plug | 接触镀层 | Gold |
| 安装样式 | Wire | 排数 | 2 |
| 连接器样式 | Center Strip Contacts | 插入件材料 | Polyester |
| 触头材料 | Copper Alloy | 壳体材料 | Steel |
| 包装数量 | 100 | 主要材料 | Mini-D-Ribbon |
| 连接器 - 电缆 | plug | 端接样式 | Solder |
| 触点数 | 20 | 接触件端接 | :Solder |
| 位数 | 20 | 接触镀层厚度 | 20µin (0.51µm) |
| 触点材料 - 镀层 | nickel plated, gold plated | 第一连接器安装类型 | :Cable |
产品信息
| SPG | 100 | 类型 | SCSI |
| 连接器性别 | PL | 系列 | :- |
| 产品特性 | Shielded | CAD图纸 | 3D CAD Model |
| 制造商全称 | 101 | 单元数量 | 1 |
环境参数
| 工作温度 | +105°C | ||
文档与媒体
相关型号
N10220-52B2PC
3M Electronic Solutions Division
D-Sub Micro-D Connectors 20P R/A SHLD RECEPT BOARDMNT M2.5 THREAD Boardmount Receptacle, Through-hole, Right Angle, Shielded, Diecast Body CONN MINI-D 20POS R/A RECPT Receptacle MDR PCB 90deg 20 pin 3M MDR 102 系列 1.27mm 节距 20 路 直角 通孔安装 Micro-D 印刷电路板连接器 插座
10220-0210EC
3M Electronic Solutions Division
D-Sub Micro-D Connectors 20P RECEPT SHIELDED IDC WIREMNT PANELMNT Wiremount/Panelmount Receptacle, IDC, Shielded CONN MDR RECPT 20POS IDC GOLD Plug IDC Panel Mount MDR Series 20 way PlugIDCPanelMountMDRSeries20way 3M 102 系列 1.27mm 节距 20 路 IDC Mini-D 带状电缆连接器, 插头, 钢外壳
10220-1210PE
3M Electronic Solutions Division
D-Sub Micro-D Connectors 20P R/A SHLD RECEPT SURFACE MOUNT Boardmount Receptacle, Surface Mount, Right Angle, Shielded CONN MDR RECEPT 20POS R/A SMD RECEPTACLE, MDR, SMT, 20WAY RECEPTACLE,SHIELDED,SURFACEMOUNT,RIGHTANGLE,20CONTACTS Connector: MDR; socket; female; horizontal; shielded; PIN:20; 1A MDR socket 20P, 10220-1210PE, 3M
10220-55G3PC
3M Electronic Solutions Division
D-Sub Micro-D Connectors 20P R/A SHLD RECEPT BOARDMNT M2.5 THREAD Boardmount Receptacle, Through-hole, Right Angle, Shielded, Molded Body CONN MDR RCPT 20POS R/A M2.5 Socket MDR 102 Series SMT 20 way SOCKET, MDR, THT, RA, 30WAY SocketMDR102SeriesSMT20way 3M MDR 102 系列 1.27mm 节距 20 路 直角 通孔安装 Micro-D 印刷电路板连接器 插座
3829
3M Electronic Solutions Division
Crimpers HAND PRESS TOOL HAND FOR MINI-D PLUG MiniDRibbon(MDR)IDCHandtoolKit(forterminatingcabletoMDRIDCplugs)
10220-6212PC
3m interconnect solutions
Conn SCSI RCP 20 POS 2.54mm Solder ST Thru-Hole 20 Terminal 1 Port D-Sub Micro-D Connectors 20P VERT SHLD RECEPT BOARDMNT M2.5 THREAD Boardmount Receptacle, Through-hole, Vertical, Shielded CONN MDR RECPT 20POS VERT T/H Receptacle MDR PCB straight 20 pin .050 Mini D Ribbon Connector (20 Pos) Receptacle Vertical Boardmount Shielded .050MiniDRibbonConnector(20Pos)ReceptacleVerticalBoardmountShielded 3M MDR 102 系列 1.27mm 节距 20 路 直向 通孔安装 Micro-D 印刷电路板连接器 插座
10220-55H3PC
3m interconnect solutions
Conn SCSI RCP 20 POS 2.54mm Solder RA Thru-Hole 20 Terminal 1 Port D-Sub Micro-D Connectors 20P R/A SHLD RECEPT BOARDMNT 4-40 THREAD Boardmount Receptacle, Through-hole, Right Angle, Shielded, Molded Body CONN MDR RCPT 20POS R/A 4-40 .050MiniDRibbon(MDR)20Pos.Thru-HoleRightAngleReceptacle-Shielded
10220-2210PE
3m interconnect solutions

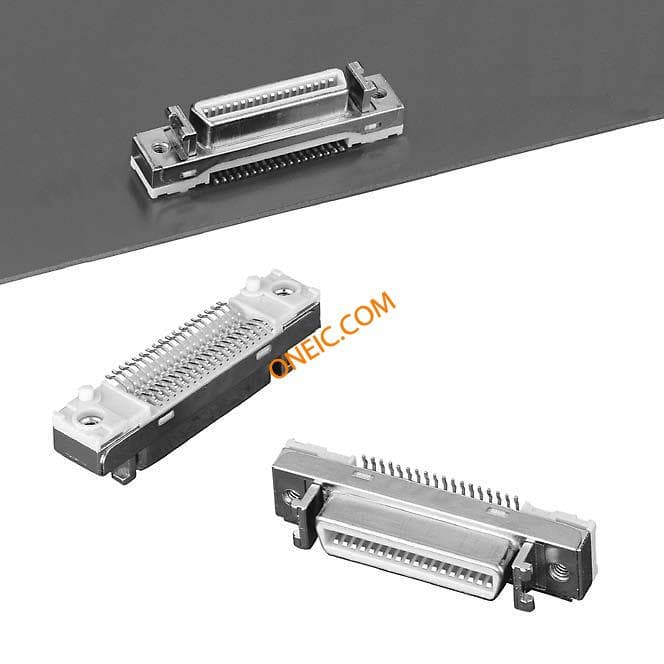

Conn SCSI RCP 20 POS 1.27mm Solder ST SMD 20 Terminal 1 Port D-Sub Micro-D Connectors 20P SMT SOCKET VERTICAL SHIELDED Boardmount Receptacle, Surface Mount, Vertical, Shielded CONN MINI-D 20POS VERT RECPT 3M 102 Series 0.5in 20 Way 2 Row Right Angle PCB Socket Surface Mount RECEPTACLE, MDR, SMT, 20WAY Conn;D-Sub;Mini-D-Ribbon;CableSocket;20Pos;STR;102Series;SMT;.050In. 3M 102 系列 2行 20路 直角 12.7mm节距 表面贴装 印刷电路板插座
10220-R21TS
3m interconnect solutions

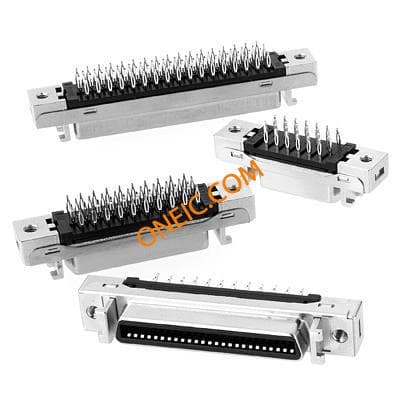

Conn SCSI RCP 20 POS 2.54mm Press Fit ST Thru-Hole 20 Terminal 1 Port D-Sub Micro-D Connectors 20POS VERT RECPT Boardmount Receptacle, Compliant Pin, Vertical, Shielded CONN MDR RCPT 20POS VERT M2.5 AU
10220-1S10PE
3m interconnect solutions

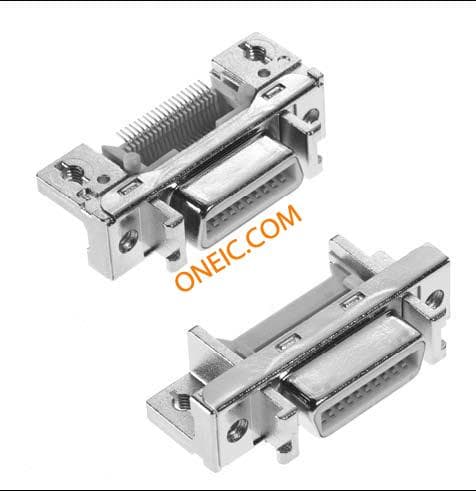

Conn SCSI RCP 20 POS 1.27mm Solder RA SMD 20 Terminal 1 Port D-Sub Micro-D Connectors 20P SMT RA RECEPT .050" Surface Mount Right Angle Die-Cast Receptacle â Shielded CONN MDR RCPT 20POS R/A SMD 20AU MINI D RIBBON CONN, RECEPTACLE 20POS SMD
