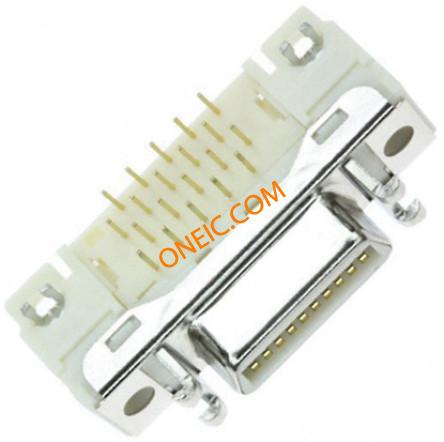

10220-55G3PC
| 制造商 | |
| 描述 | D-Sub Micro-D Connectors 20P R/A SHLD RECEPT BOARDMNT M2.5 THREAD Boardmount Receptacle, Through-hole, Right Angle, Shielded, Molded Body CONN MDR RCPT 20POS R/A M2.5 Socket MDR 102 Series SMT 20 way SOCKET, MDR, THT, RA, 30WAY SocketMDR102SeriesSMT20way 3M MDR 102 系列 1.27mm 节距 20 路 直角 通孔安装 Micro-D 印刷电路板连接器 插座 |
| 分类 |
商业参数
| 零件号别名 | 54745226246 JE150318333 | 产品类别 | D-Sub Micro-D Connectors |
| 标准包装数量 | 100 | 工厂包装数量 | 100 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85366990 |
电气参数
| 量程（°/s） | :3M - 102 Series | 额定电压 | 500 V |
| 最大额定电流 | 1 A | ||
机械参数
| 深度 | 9.4mm | 间距 | 1.27mm |
| 宽度 | 16.7mm | 长度 | 33.4mm |
| 重量 | 0.85 | 包装方式 | Bulk |
| 端接方式 | Solder | 安装类型 | Right |
| 外壳镀层 | Gold | 连接器类型 | Receptacle |
| 接触镀层 | Gold | 法兰特征 | Insert, Threaded (M2.5); Latchblocks |
| 安装样式 | Through Hole | 排数 | 2 |
| 连接器样式 | Outer Shroud Contacts | 触头材料 | Copper Alloy |
| 壳体材料 | Glass Fibre Reinforced PET | 尺寸/外形 | 33.4 x 16.7 x 9.4mm |
| 端接样式 | Solder | 触点数 | 20 |
| 接触件端接 | :Through Hole Right Angle | 位数 | 20 |
| 接触镀层厚度 | 30µin (0.76µm) | ||
产品信息
| 连接器性别 | Female | 系列 | 102 |
| 产品特性 | Board Lock, Shielded | ||
环境参数
| 工作温度 | +105°C | ||
