点击放大查看

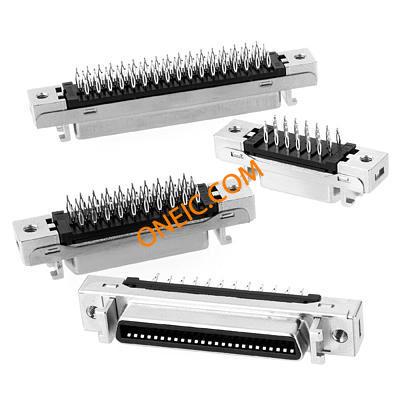

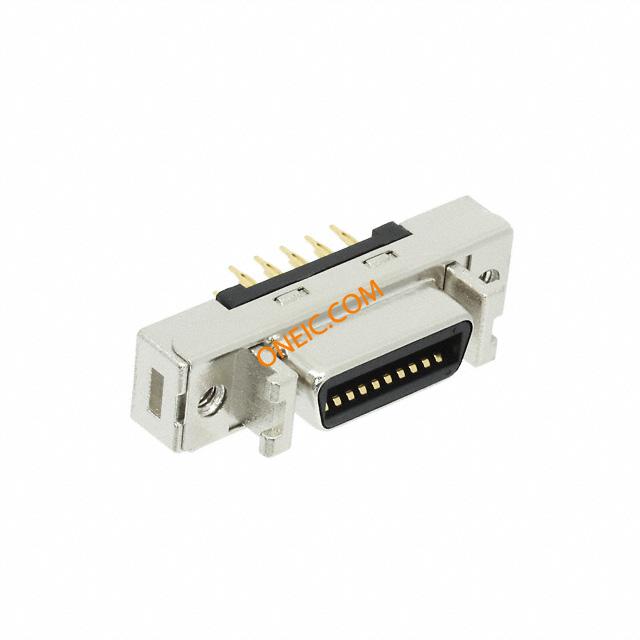

10220-R21TS
| 制造商 | |
| 描述 | Conn SCSI RCP 20 POS 2.54mm Press Fit ST Thru-Hole 20 Terminal 1 Port D-Sub Micro-D Connectors 20POS VERT RECPT Boardmount Receptacle, Compliant Pin, Vertical, Shielded CONN MDR RCPT 20POS VERT M2.5 AU |
| 分类 |
商业参数
| 零件号别名 | 54745283625 JE150375770 | 产品类别 | D-Sub Micro-D Connectors |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
机械参数
| 间距 | 2.54 mm | 端接方式 | Press Fit |
| 安装类型 | Through Hole | 连接器类型 | Receptacle |
| 接触镀层 | Gold | 法兰特征 | Insert, Threaded (M2.5); Latchblocks |
| 安装样式 | Through Hole | 排数 | 2 |
| 连接器样式 | Outer Shroud Contacts | 端接样式 | Solder |
| 触点数 | 20 | 位数 | 20 |
| 接触镀层厚度 | 30µin (0.76µm) | ||
产品信息
| 类型 | SCSI | 连接器性别 | RCP |
| 产品特性 | Shielded | ||
