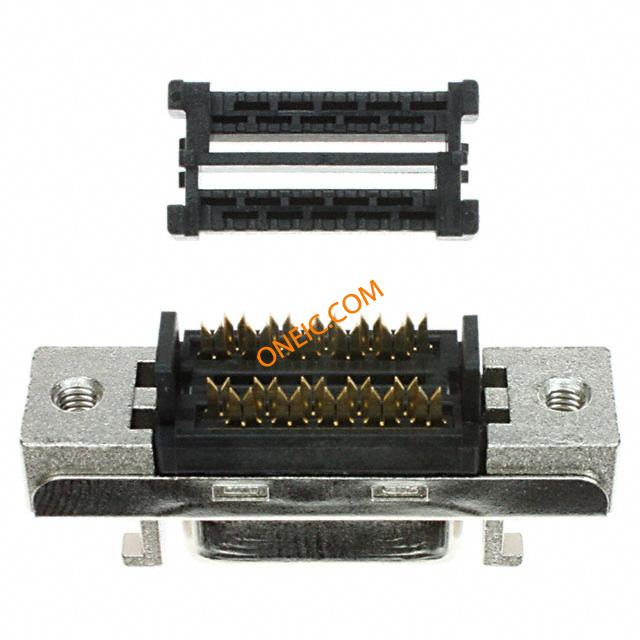

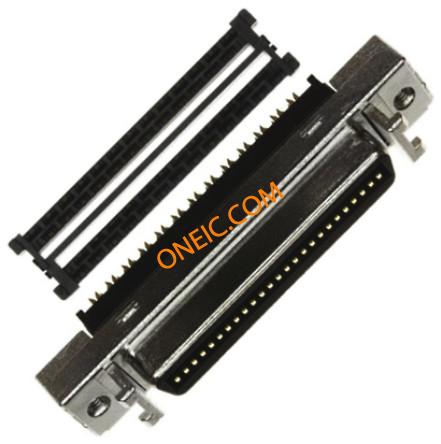

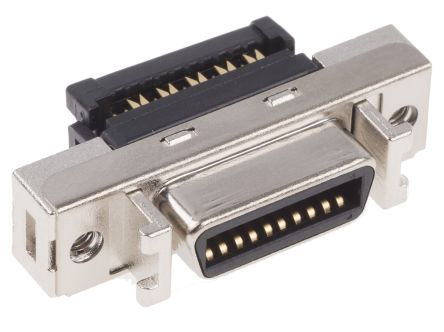

10220-0210EC
| 制造商 | |
| 描述 | D-Sub Micro-D Connectors 20P RECEPT SHIELDED IDC WIREMNT PANELMNT Wiremount/Panelmount Receptacle, IDC, Shielded CONN MDR RECPT 20POS IDC GOLD Plug IDC Panel Mount MDR Series 20 way PlugIDCPanelMountMDRSeries20way 3M 102 系列 1.27mm 节距 20 路 IDC Mini-D 带状电缆连接器, 插头, 钢外壳 |
| 分类 |
商业参数
| 零件号别名 | 90169009056 JE150182382 | 产品类别 | D-Sub Micro-D Connectors |
| 标准包装数量 | 100 | 工厂包装数量 | 100 |
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 最大额定电流 | 1 A | ||
机械参数
| 深度 | 9.1mm | 间距 | 1.27mm |
| 宽度 | 12.7mm | 长度 | 22mm |
| 重量 | 1 lb | 方向 | 直角 |
| 端接方式 | IDC | 安装类型 | Straight |
| 外壳镀层 | Nickel | 连接器类型 | Receptacle |
| 接触镀层 | Gold | 法兰特征 | Insert, Threaded (M2.5); Latchblocks |
| 安装样式 | Panel | 排数 | 2 |
| 连接器样式 | Outer Shroud Contacts | 触头材料 | Beryllium Copper |
| 壳体材料 | Glass Fibre Reinforced PET | 尺寸/外形 | 22 x 12.7 x 9.1mm |
| 端接样式 | IDC | 触点数 | 20 |
| 位数 | 20 | 接触镀层厚度 | 30µin (0.76µm) |
产品信息
| 连接器性别 | Female | 系列 | 101 |
| 产品特性 | Shielded | ||
环境参数
| 工作温度 | +85°C | ||
文档与媒体
相关型号
10120-6000EC
3M Electronic Solutions Division
D-Sub Micro-D Connectors 20P PLUG SHIELDED IDC WIREMOUNT Wiremount Plug, IDC, Shielded CONN MDR PLUG 20POS IDC GOLD Plug MDR IDC shielded 20 pin .050 Mini D Ribbon (MDR) 20 Pos. IDC Wiremount Plug-Shielded .050MiniDRibbon(MDR)20Pos.IDCWiremountPlug-Shielded 3M 101 系列 1.27mm 节距 20 路 IDC Mini-D 带状电缆连接器, 插头, 钢外壳
