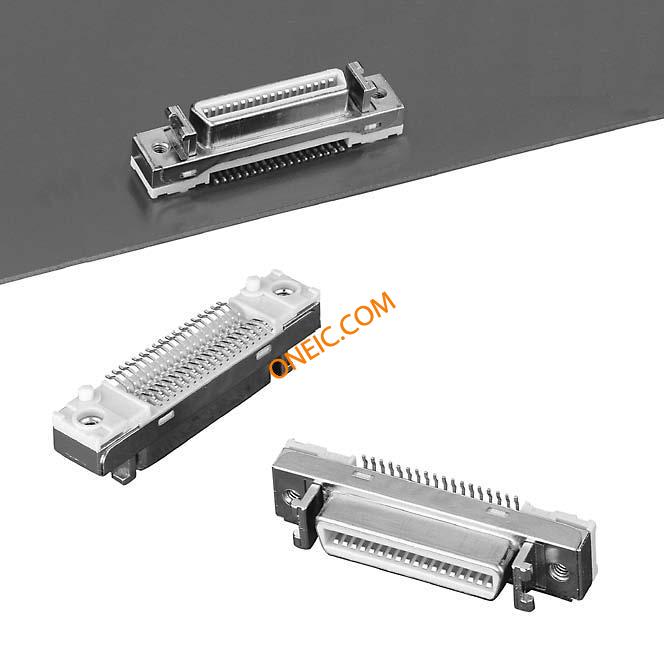

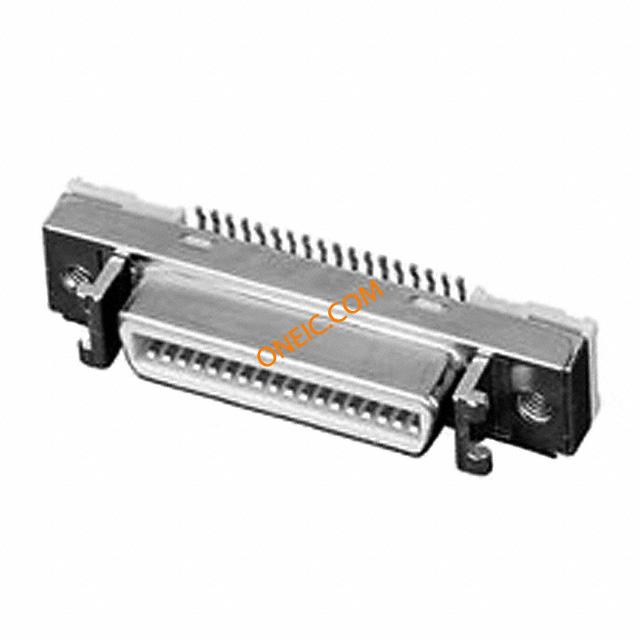

10220-2210PE
| 制造商 | |
| 描述 | Conn SCSI RCP 20 POS 1.27mm Solder ST SMD 20 Terminal 1 Port D-Sub Micro-D Connectors 20P SMT SOCKET VERTICAL SHIELDED Boardmount Receptacle, Surface Mount, Vertical, Shielded CONN MINI-D 20POS VERT RECPT 3M 102 Series 0.5in 20 Way 2 Row Right Angle PCB Socket Surface Mount RECEPTACLE, MDR, SMT, 20WAY Conn;D-Sub;Mini-D-Ribbon;CableSocket;20Pos;STR;102Series;SMT;.050In. 3M 102 系列 2行 20路 直角 12.7mm节距 表面贴装 印刷电路板插座 |
| 分类 |
商业参数
| 零件号别名 | 54745250800 JE150343679 | 产品类别 | D-Sub Micro-D Connectors |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | RoHS Compliant | 标准 | UL94V-0 |
| 海关税号 | 85366990 | ||
电气参数
| 最大额定电流 | 1 A | ||
机械参数
| 间距 | 1.27 mm | 重量 | 0.098 |
| 包装方式 | Tray | 端接方式 | Solder |
| 安装类型 | Surface Mount | 外壳镀层 | Nickel |
| 行程角度 | Straight | 连接器类型 | Receptacle |
| 接触镀层 | Gold | 法兰特征 | Insert, Threaded (M2.5); Latchblocks |
| 安装样式 | SMD/SMT | 排数 | 2 |
| 外壳材料（壳体） | Steel | 连接器样式 | Outer Shroud Contacts |
| 插入件材料 | Polyester | 触头材料 | Copper Alloy |
| 主要材料 | Mini-D-Ribbon | 端接样式 | Solder |
| 触点数 | 20 | 接触件端接 | :Surface Mount Vertical |
| 位数 | 20 | 接触镀层厚度 | 20µin (0.51µm) |
| 第一连接器安装类型 | :PCB | ||
产品信息
| 类型 | SCSI | 连接器性别 | RCP |
| 系列 | MDR 102 | 产品特性 | Board Guide, Shielded |
| 制造商全称 | 102 | ||
