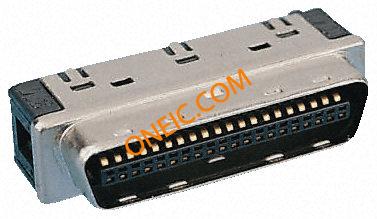

10120-6000EL
| 制造商 | |
| 描述 | MDR 20 way cable mount plug,1A Conn SCSI PL 20 POS 1.27mm IDT RA Cable Mount 20 Terminal 1 Port PLUG, MDR, CABLE MOUNT, 20WAY MDR20-WAYPLG Connector: MDR; plug; male; shielded; PIN:20; Contacts ph:1.27mm 3M 101 系列 1.27mm 节距 20 路 IDC Mini-D 带状电缆连接器, 插头, 钢外壳 |
| 分类 |
合规参数
| RoHS | RoHS Compliant Part | 海关税号 | 85369010 |
| 材料阻燃等级 | :UL94V-0 | ||
电气参数
| 测试电压 | 0.5kV | 额定电压 | 150 V ac, 200 V dc |
| 击穿电压 | :500V | 最大额定电流 | 1A |
| 绝缘电阻 | :500Mohm | 最小供电电压 | 200VDC/150VAC |
| 触点额定电流 | 1A | 连接器类型 - 电压输入 | shielded |
机械参数
| 深度 | 9.1mm | 间距 | 1.27mm |
| 宽度 | 12.7mm | 高度 | 12.7 mm |
| 长度 | 22mm | 重量 | 0.004 |
| 导线线规 | 28...30AWG | 端接方式 | IDT |
| 柱间距 | 1.27mm | 基体材料 | polyester |
| 安装类型 | Right Angle | 连接器类型 | :Micro D |
| 接触镀层 | Gold over Nickel | 安装样式 | Cable |
| 触头材料 | Copper Alloy | 壳体材料 | Glass Fibre Reinforced PET |
| 总长度 | 22 mm | 包装数量 | 100 |
| 尺寸/外形 | 22 x 12.7 x 9.1mm | 连接器 - 电缆 | plug |
| 触点数 | 20 | 接触件端接 | :IDC / IDT |
| 位数 | 20 | 触点材料 - 镀层 | nickel plated, gold plated |
| 第一连接器安装类型 | :Cable | ||
产品信息
| SPG | 100 | 类型 | SCSI |
| 连接器性别 | Male | 系列 | 101 |
| 端口数 | 1 Port | 单元数量 | 1 |
环境参数
| 工作温度 | +85°C | 结工作温度 | 85C |
文档与媒体
相关型号
10320-52F0-008
3M Electronic Solutions Division
D-Sub Backshells 20P JUNCTION SHELL SLDR PLUG NON-SHIELD Shell for Solder, Plastic, Round Cable, Straight Exit, Latches, Non-Shielded CONN JUNCTION SHELL 20POS STRGT 20 way finger release plastic backshell BACKSHELL, MDR, 20WAY, Q/REL Hood;D-Sub;20Pos;StraightExit;103Series;Plastic;0.050In.CblDia;MDR Plug housing; PIN:20; Locking: lock Grip cover for MDR plug Glass fibre (GF) / Polybutylene terephthalate (PBT), 10320-52F0-008, 3M 3M 103 系列 20 路 直 黑色 聚碳酸酯 (PBT) D-sub 连接器底壳 , 带应力消除
10320-3210-000

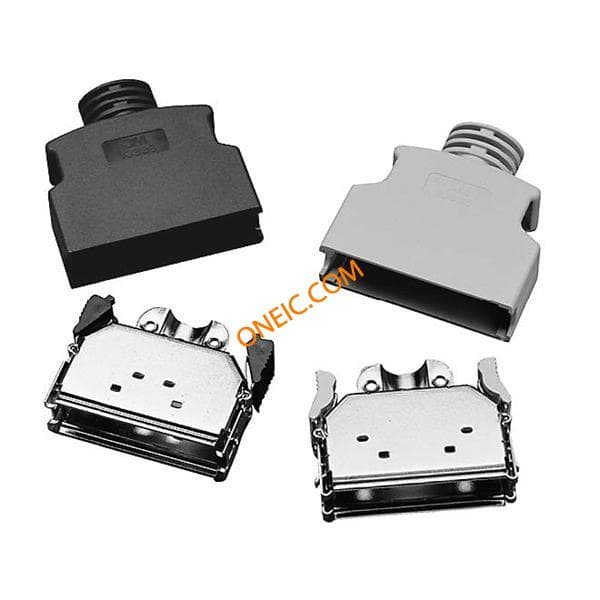

3M Electronic Solutions Division
D-Sub Backshells 20P JUNCTION SHELL IDC WIREMOUNT SHIELD Shell for IDC, Plastic, Round Cable, Straight Exit, Latches, Shielded CONN JUNCTION SHELL 20POS STRGT 20 way finger release plastic hood Connector Accessories Shielded Junction Shell 20 POS Acrylonitrile Butadiene-Styrene Beige BACKSHELL, MDR, 20WAY, SHIELDED Hood;D-Sub;20Pos;StraightExit;103Series;Plastic;0.050In.CblDia;MDR,Shielded Plug housing; shielded; PIN:20; Locking: lock 3M 103 系列 20 路 直 米色 ABS D-sub 连接器底壳 , 带应力消除
10220-1210PE
3M Electronic Solutions Division

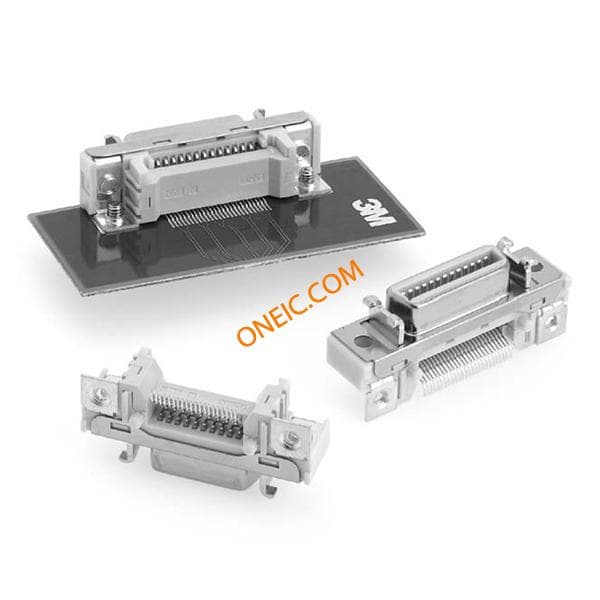

D-Sub Micro-D Connectors 20P R/A SHLD RECEPT SURFACE MOUNT Boardmount Receptacle, Surface Mount, Right Angle, Shielded CONN MDR RECEPT 20POS R/A SMD RECEPTACLE, MDR, SMT, 20WAY RECEPTACLE,SHIELDED,SURFACEMOUNT,RIGHTANGLE,20CONTACTS Connector: MDR; socket; female; horizontal; shielded; PIN:20; 1A MDR socket 20P, 10220-1210PE, 3M
10220-6212PL
3m interconnect solutions
Conn SCSI RCP 20 POS 2.54mm Solder ST Thru-Hole 20 Terminal 1 Port D-Sub Micro-D Connectors 20P SKT BD MT CONN MDR SCKT 20POS PC MNT 3M Female 20 Way Straight Through Hole SCSI Connector 2.54mm Pitch, Solder RECEPTACLE, MDR, STRAIGHT, 20WAY MDRPCBSKT20W MDR socket 20P, 10220-6212PL, 3M 3M 20 路 2.54mm节距 直 通孔 母 SCSI 连接器, 焊接 20P MDR CONNECTOR STRAIGHT

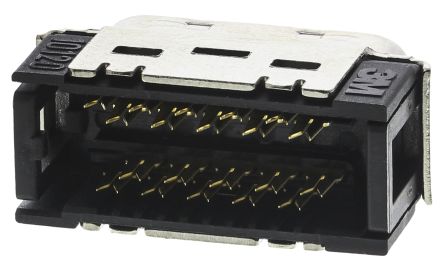

10220-5212PL
3M

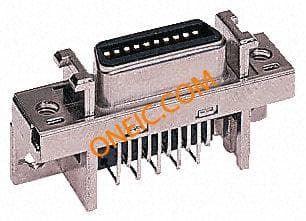

20 way panel right angle PCB I/O socket RECEPTACLE, MDR, R/A, 20WAY 20WPCBRECEPTACLE Connector: MDR; socket; female; angled 90°; shielded; PIN:20; 1A MDR socket 20P, 10220-5212PL, 3M 3M MDR 102 系列 2.54mm 节距 20 路 直角 通孔安装 Micro-D 印刷电路板连接器 插座
