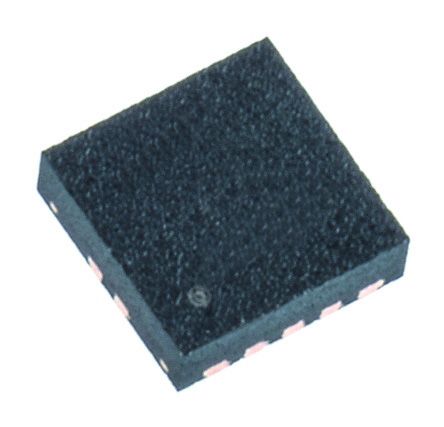

点击放大查看
TPS40210DRCT
| 制造商 | Texas Instruments Incorporated |
| 描述 | Current Mode PWM Controller 5V to 260V 400mA 10-Pin VSON EP T/R IC REG CTRLR BST FLYBK PWM 10SON Switching Controllers Wide Inp Rng Crnt Mode Boost Cntrlr IC, NON-SYNC BOOST CTRLR 10-SON Wide Input Range Current Mode Boost Controller , 升压控制器 转换器, 6A, 可调输出, 5 → 260 V, 1000 kHz, 10针 SON封装 |
| 分类 |
商业参数
| 其他名称 | 296-23413-2 | 产品类别 | Switching Controllers |
| 标准包装数量 | Tape & Reel | 工厂包装数量 | 250 |
| 标准封装名称 | SON | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423190 |
| 零件状态 | ACTIVE | 抗辐射加固 | No |
电气参数
| PWM类型 | Current Mode | 频率 | :1000kHz |
| 占空比 | 95 % | Cuk转换器 | No |
| 降压转换器 | No | 隔离电源 | No |
| 稳压器类型 | :Step Up (Boost) | 额定电压 | 5 to 260 V |
| 升压转换器 | Yes | 最大频率 | 1MHz |
| 输出电流 | 400 mA | 占空比（最大） | 95 % |
| 供电电压 | 4.5 V ~ 52 V | 倍压转换器 | No |
| 反激转换器 | Yes | 输出数量 | 1 |
| 分频/倍频 | No | 反相转换器 | No |
| 最大额定电流 | Catalog | 开关频率 | 35 to 1000 kHz |
| 同步整流 | No | 最小输入电压 | :12V |
| 最小供电电压 | 52 V | 输出数量与类型 | 1 |
| 最大持续工作电压（MCOV） | :52V | 电压输出差（典型值）@ 距离 | :5V |
机械参数
| 宽度 | 3.1(Max) | 重量 | 0.000921 oz |
| 包装方式 | Tape and Reel | 引脚样式 | No Lead |
| 端接方式 | :SMD | 触点形式 | Yes |
| 安装类型 | Surface Mount | 安装样式 | SMD/SMT |
| 引脚数 | :10 | 封装形式 | 10VSON EP |
| 冷却的封装 | VSON EP | 材料表面处理 | :MSL 2 - 1 year |
| 总长度 | 3.1(Max) | 包装数量 | VSON EP |
| 位数 | 10 | 外壳尺寸-插件 | 0.95(Max) |
产品信息
| 类型 | Current Mode PWM Controllers | 系列 | TPS40210 |
| 产品特性 | Enable Frequency Synchronization | 软件 | SLUS772F |
| 拓扑 | Boost|Flyback | 基本单元 | :40210 |
| 应用领域 | Industrial | 控制方式 | Current Mode PWM Controller |
| 图案编号 | Y | 功能框图 | fbd_slus772f.gif |
| 使用的IC/零件 | View | 输出配置 | Yes |
| 印刷电路板数量 | 10 | ||
环境参数
| 测试温度 | -40 to 125 | 工作温度 | -40 to 125 °C |
