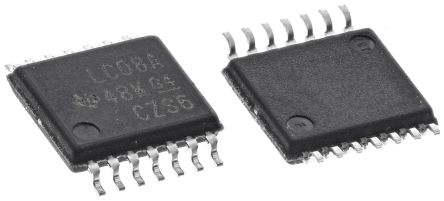

SN74LVC08APWR
| 制造商 | Texas Instruments Incorporated |
| 描述 | AND Gate 4-Element 2-IN CMOS 14-Pin TSSOP T/R IC QUAD 2-IN AND GATE 14-TSSOP Logic Gates Quad 2-Input. IC, 74LVC, SMD, 74LVC08, TSSOP14 Quadruple 2-Input Positive-AND Gate Logic IC TSSOP-14, SN74LVC08, SN74LVC08APWR, Texas Instruments Texas Instruments 逻辑门, 24mA, 1.65 → 3.6 V, 14针 TSSOP封装 |
| 分类 |
商业参数
| 产品 | AND | 其他名称 | 296-1221-1 |
| 产品类别 | Logic Gates | 标准包装数量 | Tape & Reel |
| 工厂包装数量 | 2000 | 标准封装名称 | TSSOP |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423990 |
| 零件状态 | :74LVC08 | 抗辐射加固 | No |
电气参数
| 电压 | 1.8 2.5 2.7 3.3 | 输入类型 | TTL |
| 逻辑类型 | LVC | 输出类型 | TTL |
| 位数 | 4 | 额定电压 | 1.65 V |
| 输出电流 | :24mA | 输入数量 | 2-IN |
| 供电电压 | 1.65 V ~ 3.6 V | 输出数量 | 1 |
| 元件数量 | 4 | 最大额定电流 | Catalog |
| 输出1频率 | 70 | 最小供电电压 | 3.6 V |
| 静态电流 (Iq) | 1 uA | 传播延迟时间 | 4.6 ns |
| 逻辑电压 - VIL, VIH | 0.7 V ~ 0.8 V | 静态电流（最大） | 1µA |
| 输出高/低电流 | 24mA, 24mA | 输出源/灌电流 | -24/24 |
| 最大传播延迟 @ V, 最大CL | 4.6@2.7V|3.9@3.3V ns | 传播延迟 tpLH / tpHL（最大） | 9.8 6.9 4.8 4.1 |
机械参数
| 宽度 | 4.5(Max) | 重量 | 0.002018 oz |
| 包装方式 | Tape and Reel | 引脚样式 | Gull-wing |
| 端接方式 | :SMD | 安装类型 | Surface Mount |
| 安装样式 | SMD/SMT | 引脚数 | :14 |
| 封装形式 | 14TSSOP | 冷却的封装 | TSSOP |
| 材料表面处理 | :MSL 1 - Unlimited | 总长度 | 5.1(Max) |
| 包装数量 | TSSOP | 位数 | 14 |
| 外壳尺寸-插件 | 1.05(Max) | 供应商器件封装 | 14-TSSOP |
产品信息
| 系列 | SN74LVC08A | 工艺（或'制程'，根据具体值如CMOS） | CMOS |
| 功能 | AND | 软件 | SCAS283R |
| 基本单元 | :74 | 技术 | CMOS |
| 门数量 | 4 | 功能框图 | alt_scas283r.gif |
| 电路数 | 4 | 射频系列/标准 | LVC |
| 使用的IC/零件 | View | 印刷电路板数量 | 14 |
| 输入数量及类型 | 0 | ||
环境参数
| 测试温度 | -40 to 125 | 工作温度 | -40 to 125 °C |
文档与媒体
相关型号
