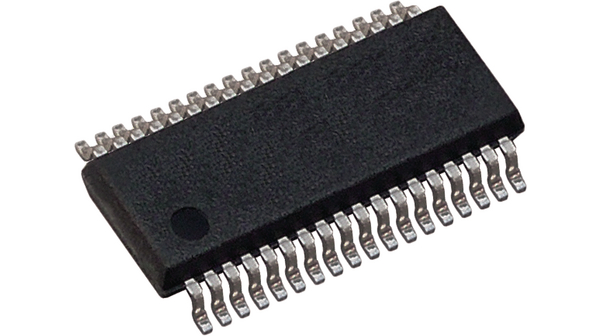

点击放大查看
TPS23851DCE
| 制造商 | Texas Instruments Incorporated |
| 描述 | PSE Controller 36-Pin SSOP Tube POE Controller 3V 3.5V 36-Pin SSOP IC QUAD-PORT EQUIP MGR 36SSOP TPS23851DCE, Ethernet Controller I2C, 3.3V, 36-Pin SSOP Hot Swap Voltage Controllers Quad Port Ethernet Pwr Sourcing Equ Mgr IC, POE, QUAD-PORT, 36SSOP PoE IC SSOP-36, TPS23851DCE, Texas Instruments |
| 分类 |
商业参数
| 产品 | PoE / LAN Solutions | 其他名称 | 296-27845-5 |
| 产品类别 | Hot Swap Voltage Controllers | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 25 | 标准封装名称 | SSOP |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| 欧盟RoHS | Compliant | 标准 | IEEE802.3at |
| 海关税号 | 85423990 | 抗辐射加固 | No |
电气参数
| 频率 | :110Hz | 接口 | I2C |
| 最大功率 | 34.2W | 额定电压 | 3.3 V |
| 输出电流 | 2mA | 供电电压 | 44 V ~ 57 V |
| 通道数量 | 4 | 断态电压 | 2.3 |
| 最大额定电流 | 70(Typ) | 释放电压 | :31V |
| 短路电流 | Adj | 共模瞬态抗扰度（最小） | Commercial |
机械参数
| 宽度 | 7.5mm | 高度 | 2.54mm |
| 长度 | 15.39mm | 重量 | 0.00027 |
| 包装方式 | Tube | 引脚样式 | Gull-wing |
| 安装类型 | Surface Mount | 安装样式 | SMD/SMT |
| 引脚数 | :36 | 封装形式 | 36SSOP |
| 冷却的封装 | SSOP | 材料表面处理 | :MSL 3 - 168 hours |
| 总长度 | 15.39 | 包装数量 | SSOP |
| 尺寸/外形 | 15.39 x 7.5 x 2.54mm | 位数 | 36 |
| 外壳尺寸-插件 | 2.54 | 供应商器件封装 | 36-SSOP |
产品信息
| 类型 | Controller (PSE) | 系列 | TPS23851 |
| 基本单元 | :23851 | 辅助检测 | No |
| 内部开关 | No | DigiKey可编程 | Yes |
| 印刷电路板数量 | 36 | ||
环境参数
| 工作温度 | -20 to 85 °C | 结工作温度 | 85C |
