点击放大查看

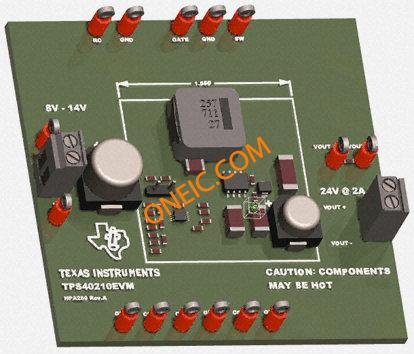

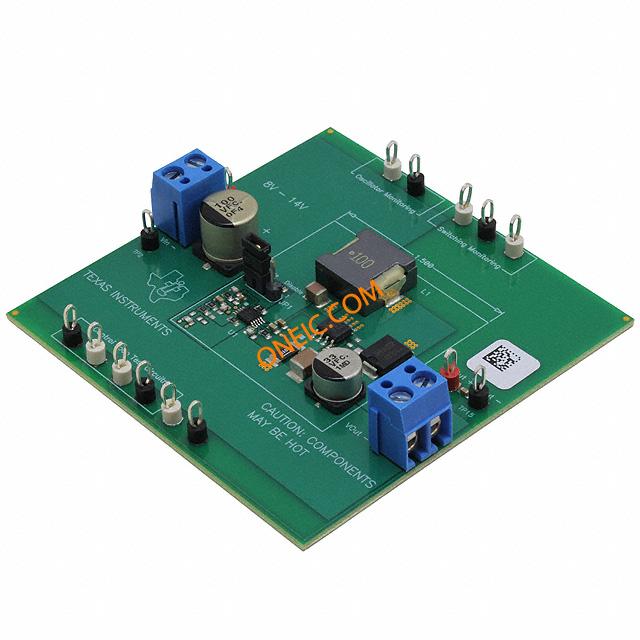

TPS40210EVM
| 制造商 | Texas Instruments Incorporated |
| 描述 | Evaluation Module For TPS40210 Power Management IC Development Tools TPS40210 Eval Module EVAL MODULE FOR TPS40210EVM TPS40210 Evaluation Module TPS40210, DC/DC, BOOST CONVERTER, EVAL MODULE TPS40210, DC/DC, BOOST, EVAL MODULE Texas Instruments TPS40210 升压转换器 评估测试板 |
| 分类 |
商业参数
| 产品 | Power Management Modules | 产品类别 | Power Management IC Development Tools |
| 标准包装数量 | Boxed | 工厂包装数量 | 1 |
合规参数
| RoHS | No | SVHC | :No SVHC (16-Dec-2013) |
| 欧盟RoHS | RoHS Not Applicable | 海关税号 | 85423190 |
电气参数
| 额定电压 | 12 V | 输出电流 | 2A |
| 元件数量 | :TPS40210 | 稳压器拓扑 | Boost |
| 开关频率 | 600kHz | 最小输入电压 | 24V |
机械参数
| 重量 | 0.417 | 电路板厚度 | Fully Populated |
| 尺寸/外形 | 76.2 mm x 76.2 mm | ||
产品信息
| 类型 | Development Kit | 内容 | Board |
| 产品特性 | :Evaluation Module for TPS40210 Boost Converter with N Channel FET Driver | 套件类型 | :Power Management - Voltage Regulator |
| 技术 | Current Mode PWM Controller | 套件内容 | :TPS40210EVM eval module and literature |
| 主要用途 | DC/DC, Step Up | 输出及类型 | 1, Non-Isolated |
| 工具类型/特性 | TPS40210 | 使用的IC/零件 | TPS40210 |
| 芯片组制造商 | :Texas Instruments | 应用细节 | :Current Mode Boost Controller |
