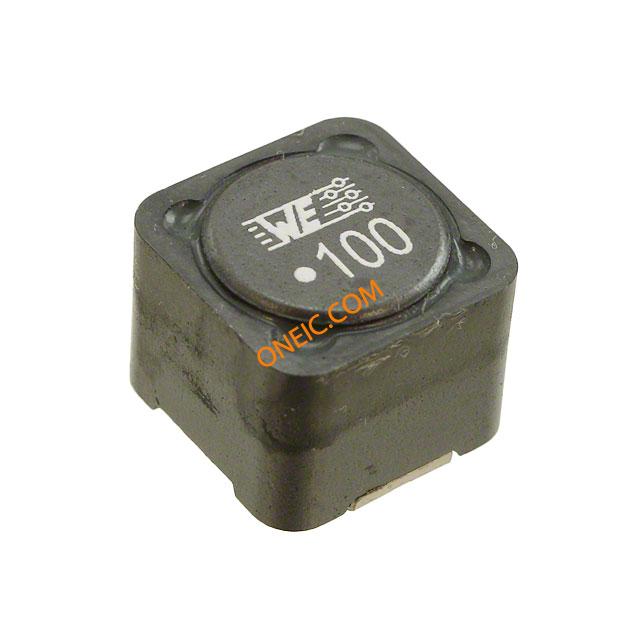

7447709100
| 制造商 | Würth Elektronik GmbH & Co. KG |
| 描述 | Fixed Inductors WE-PD Inductor 10uH 1kHz 7.1A INDUCTOR POWER 10UH 7.1A SMD Power inductor SMD WE-PDXXL 10uH 7.1A CHOKE, SMD, 10UH Wurth WE-PD 系列 屏蔽 铁氧体芯材 绕线贴片电感器, 10 μH ±20%, 7.1A Idc |
| 分类 |
商业参数
| 产品 | SMD Power Inductors | 其他名称 | 732-1241-2 |
| 标准包装数量 | 250 | 工厂包装数量 | 250 |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85045095 | ||
电气参数
| 核心类型 | :Shielded | 阻抗 | :0.01294ohm |
| 容差 | ±20% | 电感量 | 10µH |
| 量程（°/s） | :WURTH ELEKTRONIK - WE-PD Series | 测试频率 | 1kHz |
| 电感量范围 | :± 20% | 直流电阻（DCR） | 21 mOhm Max |
| 最大额定电流 | 7.1A | 直流电阻（DCR）（最大） | :0.021ohm |
| 自谐振频率 | 21MHz | 饱和电流（Isat） | :10.5A |
| 串联饱和电流 | 10.5A | 初始电阻（最小） | 21mΩ |
| 通态电流（It (RMS)）（最大） | :7.1A | ||
机械参数
| 深度 | 12mm | 宽度 | 12 mm |
| 长度 | 12mm | 重量 | 0.0048 |
| 包装方式 | Tape & Reel (TR) | 屏蔽 | Shielded |
| 磁芯材料 | Ferrite | 安装类型 | Surface Mount |
| 引脚数 | :2 | 封装形式 | Non Standard |
| 磁芯材质 | Ferrite | 主要材料 | :Metal |
| 尺寸/外形 | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 端接样式 | SMD/SMT |
| 总体尺寸 | :12mm x 12mm x 10mm | 安装高度（最大） | 0.394" (10.00mm) |
产品信息
| 类型 | Wirewound | 系列 | WE-PD |
环境参数
| 工作温度 | -40°C ~ 125°C | ||
