点击放大查看

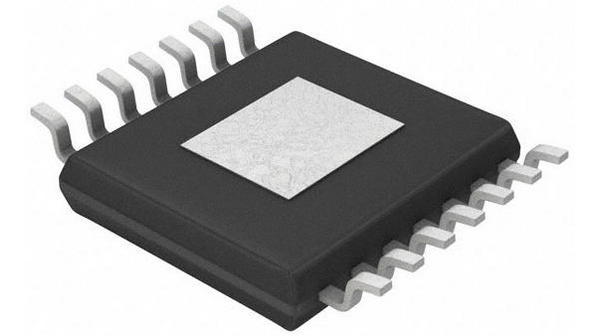

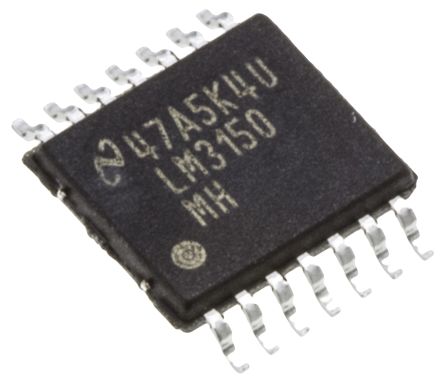

LM3150MHE/NOPB
| 制造商 | Texas Instruments Incorporated |
| 描述 | DC DC Cntrlr Single-OUT Step Down 6V to 42V Input 14-Pin TSSOP EP T/R IC REG CTRLR BUCK PWM 14-TSSOP LM3150MHE/NOPB, DC-DC Controller, 12A, 42V Step-Up, Synchronous, 1000kHz, 14-Pin, TSSOP Switching Controllers 42V SYNC STEP-DOWN SIMPLE SWITCHER® CONTROLLER, 42V Synchronous Step-Down Switching Regulator HTSSOP-14, LM3150, LM3150MHE/NOPB, Texas Instruments Texas Instruments 直流-直流降压控制器, 12A, 42 V 降压，同步, 1000 kHz, 14针 TSSOP封装 |
| 分类 |
商业参数
| 商标名 | Simple Switcher | 标准包装数量 | Tape & Reel, Cut Tape |
| 工厂包装数量 | 250 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 零件状态 | ACTIVE |
| 抗辐射加固 | No | ||
电气参数
| 输出端 | 1 | PWM类型 | Current/Voltage Mode |
| 占空比 | 96% | 输出类型 | Adjustable |
| Cuk转换器 | No | 降压转换器 | Yes |
| 隔离电源 | No | 额定电压 | 0.6(Min) V |
| 升压转换器 | No | 最大频率 | 1MHz |
| 输出电流 | 12(Max) A | 供电电流 | 3.5 mA |
| 供电电压 | 6 to 42 V | 倍压转换器 | No |
| 反激转换器 | No | 输出数量 | 1 |
| 分频/倍频 | No | 稳压器拓扑 | Step Down |
| 反相转换器 | No | 最大额定电流 | Catalog |
| 开关频率 | 1000 kHz | 静态电流 (Iq) | 3.5 |
| 输出电压（最小/固定） | 0.6 V | ||
机械参数
| 宽度 | 4.4mm | 高度 | 0.8mm |
| 长度 | 5mm | 包装方式 | Tape & Reel (TR) |
| 安装类型 | Surface Mount | 安装样式 | SMD/SMT |
| 引脚数 | 14 | 封装形式 | 14TSSOP EP |
| 冷却的封装 | TSSOP | 包装数量 | 250 | SMALL T&R |
| 尺寸/外形 | 5 x 4.4 x 0.8mm | 位数 | 14 |
产品信息
| 类型 | Step Down | 系列 | LM3150 |
| 产品特性 | Adjustable Current Limit Dynamic Voltage Scaling Enable Frequency Synchronization Light Load Efficiency Pre-Bias Start-Up | 功能 | Controller |
| 软件 | SNVS561F | 拓扑 | Buck |
| 应用领域 | Communications & Telecom Computing & Multimedia Consumer & Portable Electronics Industrial | 控制方式 | COT with emulated ripple |
| 图案编号 | Y | 控制器类型 | Buck Controller, Synchronous |
| 功能框图 | fbd_snvs561f.gif | 使用的IC/零件 | View |
环境参数
| 测试温度 | -40 to 125 | 工作温度 | -40 to 125 °C |
| 结工作温度 | 125C | ||
文档与媒体
相关型号
7447709150
Wurth Electronics
Fixed Inductors Shielded Pwr Inductr 6.5A 0.11Ohms 15uH INDUCTOR POWER 15UH 6.5A SMD SMD Inductor WE-PD XXL 15uH 8A Fixed Inductors WE-PD Inductor 15uH 1kHz 6.5A CHOKE, SMD, 15UH Wurth WE-PD 系列 屏蔽 铁氧体芯材 绕线贴片电感器, 15 μH ±20%, 8A Idc
CSD17306Q5A
texas instruments
Trans MOSFET N-CH 30V 24A 8-Pin SON EP T/R MOSFET N-CH 30V 100A 8SON MOSFET, N CH, 30V, 100A, 8SON 30V N Channel NexFET™ Power MOSFET Texas Instruments N沟道 Si MOSFET 晶体管 , 100 A, Vds=30 V, 8针 SON封装 MOSFET 30V N Channel NexFET Power MOSFET
CSD17307Q5A
texas instruments
Trans MOSFET N-CH 30V 14A 8-Pin SON EP T/R MOSFET N-CH 30V 73A 8SON MOSFET 30V N Channel NexFET Power MOSFET MOSFET, N CH, 30V, 73A, 8SON 30V N Channel NexFET™ Power MOSFET Texas Instruments , N沟道 MOSFET 晶体管, 73 A, Vds=30 V, 8针 SON封装

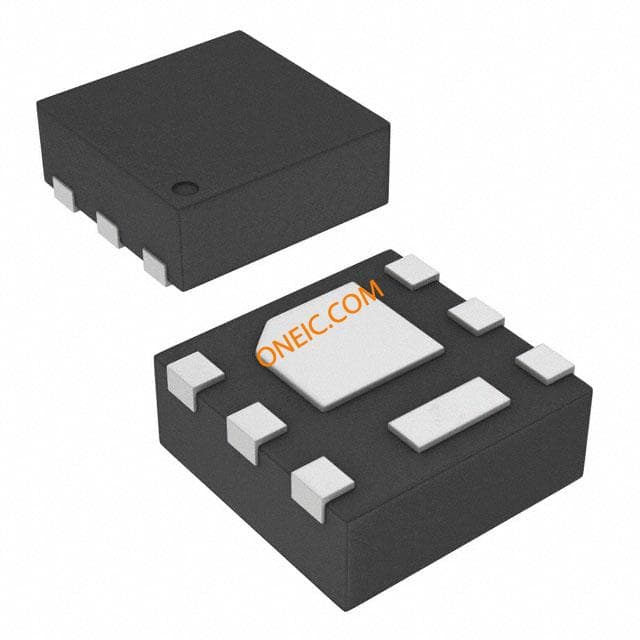

CSD16301Q2
texas instruments
Trans MOSFET N-CH 25V 5A 6-Pin SON T/R MOSFET N-CH 25V 6-SON MOSFET N-Channel NexFET Power MOSFET MOSFET,N CH,25V,5A,SON-6 N-Channel NexFET™ Power MOSFET Texas Instruments , N沟道 MOSFET 晶体管, 5 A, Vds=25 V, 6针 SON封装
CSD16322Q5C
texas instruments
Trans MOSFET N-CH 25V 21A 8-Pin SON EP T/R MOSFET N-CH 25V 97A 8SON MOSFET, N CH, 25V, 21A, 8SON DualCool™ N-Channel NexFET™ Power MOSFET Texas Instruments , N沟道 MOSFET 晶体管, 21 A, Vds=25 V, 8针 SON封装 MOSFET DualCool N-Channel NexFET Power MOSFET
LM3150-250EVAL/NOPB
Texas Instruments
Power Management IC Development Tools LM3150-250 EVAL BOARD BOARD EVAL FOR LM3150-250 EVAL BOARD, LM3150 3.3V, 10A REGULATOR
551600142-002/NOPB
Texas Instruments Incorporated
. 551600142-002/NOPB - LM3150 WEBENCH® Buildit Board 1 Non-Isolated Output DC/DC, Step Down Evaluation Board from Texas Instruments. from now!
LM3150-500EVAL/NOPB
Texas Instruments
Power Management IC Development Tools LM3150-500 EVAL BOARD BOARD EVAL LM3150-500 EVAL BOARD, LM3150, ADJ, 12A SYNC STEP-DOWN CTRL

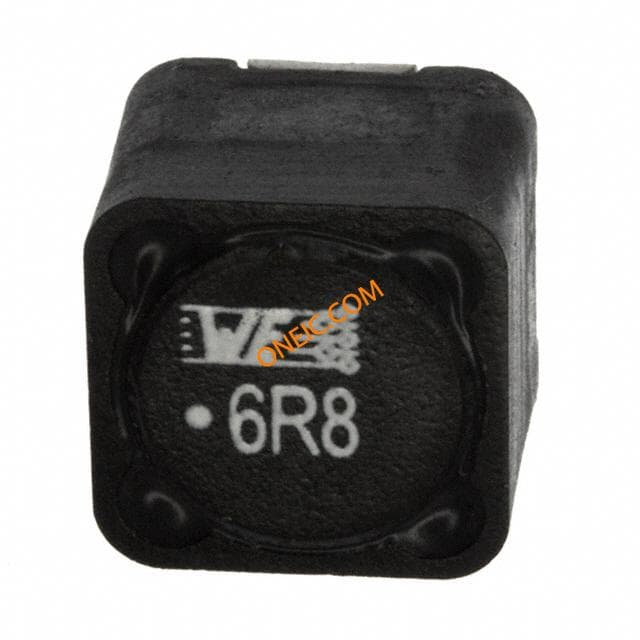

7447709006
Wurth Electronics
Fixed Inductors WE-PD Inductor 6.8uH 1kHz 8.4A INDUCTOR POWER 6.8UH 8.4A SMD WE-PD SMD Shielded Power Inductor CHOKE, SMD, 6.8UH Wurth WE-PD 系列 屏蔽 绕线贴片电感器, 6.8 μH ±20%, 8.4A Idc

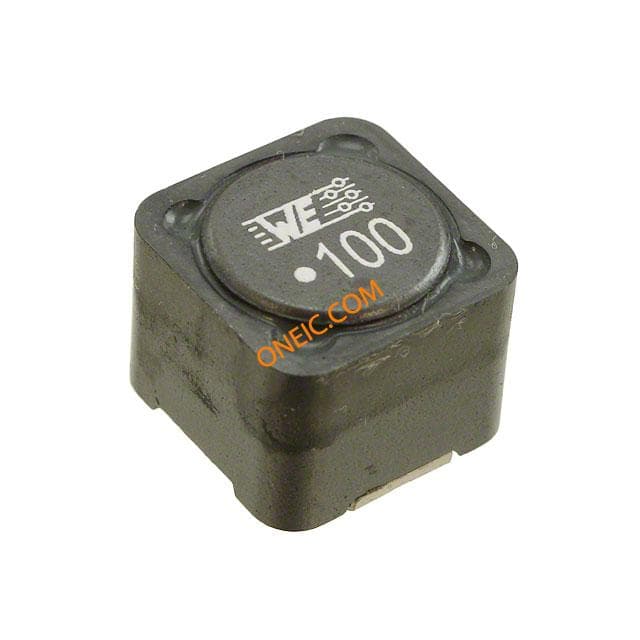

7447709100
