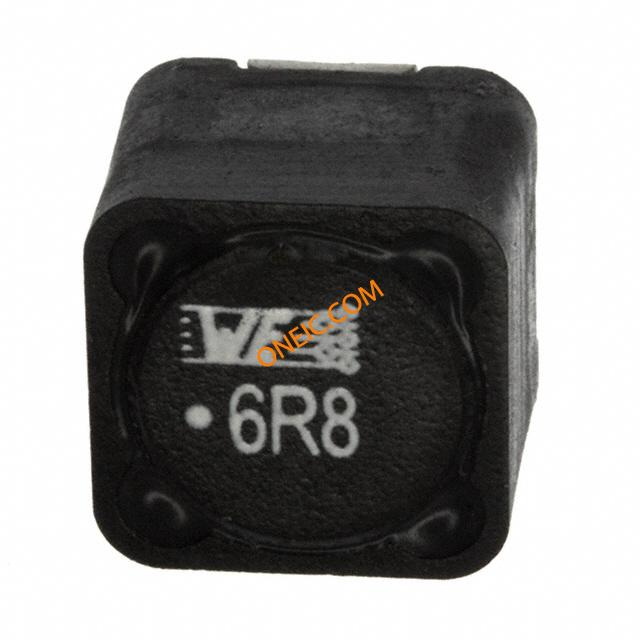

7447709006
| 制造商 | Würth Elektronik GmbH & Co. KG |
| 描述 | Fixed Inductors WE-PD Inductor 6.8uH 1kHz 8.4A INDUCTOR POWER 6.8UH 8.4A SMD WE-PD SMD Shielded Power Inductor CHOKE, SMD, 6.8UH Wurth WE-PD 系列 屏蔽 绕线贴片电感器, 6.8 μH ±20%, 8.4A Idc |
| 分类 |
商业参数
| 产品 | SMD Power Inductors | 其他名称 | 732-1240-2 |
| 标准包装数量 | 250 | 工厂包装数量 | 250 |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85045095 | ||
电气参数
| 核心类型 | :Shielded | 阻抗 | :0.0091ohm |
| 容差 | ±20% | 电感量 | 6.8µH |
| 量程（°/s） | :WURTH ELEKTRONIK - WE-PD Series | 测试频率 | 1kHz |
| 电感量范围 | :± 20% | 直流电阻（DCR） | 14 mOhm Max |
| 最大额定电流 | 8.4A | 直流电阻（DCR）（最大） | :0.014ohm |
| 自谐振频率 | 23MHz | 饱和电流（Isat） | :12.8A |
| 串联饱和电流 | 12.8A | 初始电阻（最小） | 0.014Ω |
| 通态电流（It (RMS)）（最大） | :8.4A | ||
机械参数
| 深度 | 12mm | 宽度 | 12 mm |
| 高度 | 10mm | 长度 | 12mm |
| 重量 | 0.0048 | 包装方式 | Tape & Reel (TR) |
| 屏蔽 | Shielded | 屏蔽类型 | Yes |
| 磁芯材料 | Ferrite | 安装类型 | Surface Mount |
| 引脚数 | :2 | 封装形式 | Non Standard |
| 磁芯材质 | Ferrite | 主要材料 | :Metal |
| 尺寸/外形 | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 端接样式 | SMD/SMT |
| 总体尺寸 | :12mm x 12mm x 10mm | 安装高度（最大） | 0.394" (10.00mm) |
产品信息
| 类型 | Wirewound | 系列 | WE-PD |
环境参数
| 工作温度 | -40°C ~ 125°C | ||
文档与媒体
相关型号
LM3151MHE-3.3/NOPB
texas instruments
DC DC Cntrlr Single-OUT Sync Step Down 6V to 42V Input 14-Pin TSSOP EP T/R DC DC Cntrlr Single-OUT Sync Step Down 6V to 42V Input 14-Pin HTSSOP EP T/R IC REG CTRLR BUCK PWM 14-TSSOP Switching Controllers SIMPLE SWITCHER? CONTROLLER, 42V Synchronous Step-Down 14-HTSSOP -40 to 125 Voltage Regulat SIMPLE SWITCHER® CONTROLLER, 42V Synchronous Step-Down
744770
Wurth Electronics

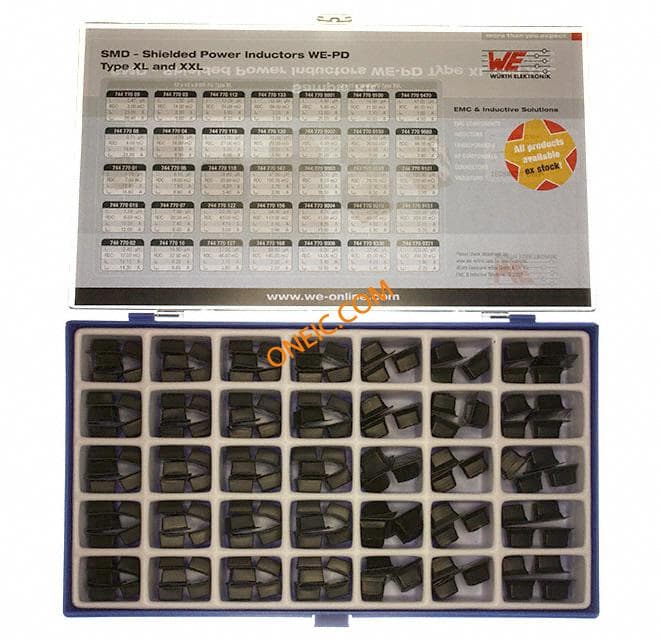

インダクタキットおよびアクセサリ IND Kit PD Series L KIT INDUCTOR PD SERIES LARGE Inductor Kits & Accessories IND Kit PD Series L INDUCTORS, ASSORTMENT, SMDLARGE Wurth Elektronik 电感器设计套件, 套件包含1280/1210 WE-PD SMD 功率电感器
