点击放大查看

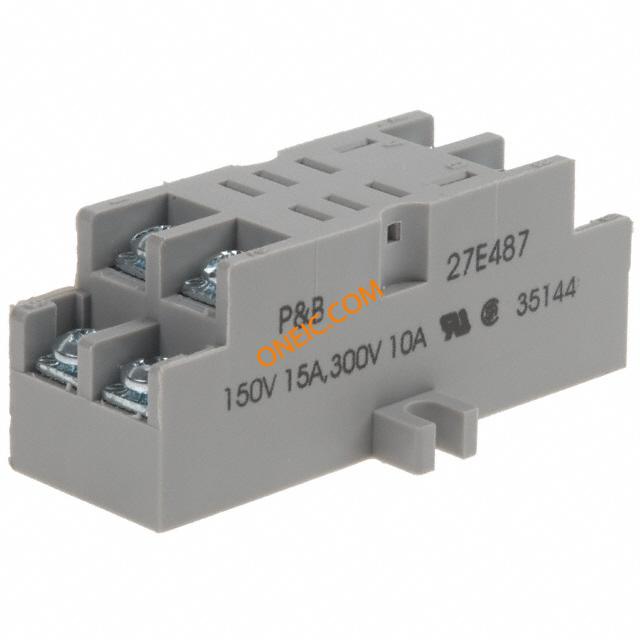

27E487
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Relay Socket SKT 8 POS Screw ST Panel Mount Relay Sockets & Hardware SCREW TERM SCKT K10 SOCKET TERM FOR K10 RELAYS Socket; Screw; 2; Potter and Brumfield Brand; RoHS Compliant; ELV Compliant Conn Relay Socket SKT 8 POS Screw ST Panel Mount Product Highlights:SocketK10 SeriesNumber of Poles = 2Terminal Type = ScrewWithout Grounding Provision RELAY SOCKET Socket,Relay;Screw;2;PotterandBrumfield;RoHSCompliant,ELVCompliant 27E487=SOCKET,K10,8,SCW,PHEN,G |
| 分类 |
商业参数
| 交货时间 | 52 Days | 子类别 | Connector Socket |
| 零件号别名 | 1-1419106-9 | 产品类别 | Relay Sockets & Hardware |
| 标准包装数量 | Trays | 工厂包装数量 | 50 |
合规参数
| RoHS | RoHS Compliant | 标准 | RoHSCompliant,ELVCompliant |
| 海关税号 | 85366910 | 零件状态 | 1-1419106-9 |
电气参数
| 极数 | 2 | 最大额定电流 | :10A |
机械参数
| 重量 | 0.032 | 端接方式 | Screw |
| 安装类型 | Panel Mount | 连接器类型 | :Screw |
| 排数 | 2 | 端接样式 | Screw |
| 触点数 | 8 | 接触件端接 | :Screw |
| 位数 | 8 | 接线端子类型 | Screw |
产品信息
| 类型 | Relay Socket | 连接器性别 | SKT |
| 系列 | K10 | 制造商全称 | PotterandBrumfieldBrand |
| 附件类型 | Socket | 行业别名 | 1-1419106-9, 27E487 |
| 应用细节 | UL Class B coil insulation system | 适用产品/相关产品 | K10 Series |
