点击放大查看

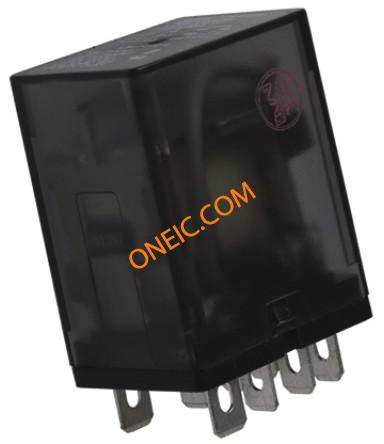

K10P-11A15-12
| 制造商 | TE Connectivity Ltd. |
| 描述 | General Purpose Relays DPDT SOCKET MT 12VAC RELAY GEN PURPOSE DPDT 15A 12V Relay,E-Mech,GenPurp,DPDT,Cur-Rtg15A Electromechanical Relay DPDT 15A 12VAC 43Ohm Socket Electromechanical Relay DPDT 15A 12VAC 43Ohm Socket Product Highlights:K10 SeriesContact Arrangement = 2 Form C, DPDT, 2 C/OContact Current Rating = 15 Amps.Monostable Coil Magnetic SystemInput Voltage = 12 VAC POWER RELAY, DPDT, 12VAC, 15A, PLUG IN Relay;E-Mech;GenPurp;DPDT;Cur-Rtg15A;Ctrl-V12AC;Vol-Rtg120/30AC/DC;6Pin K10P-11A15-12=K10/K20 |
| 分类 |
商业参数
| 交货时间 | 94 Days | 子类别 | Electromechanical Relay |
| 零件号别名 | 3-1393144-9 | 产品类别 | General Purpose Relays |
| 标准包装数量 | 25 | 工厂包装数量 | 25 |
合规参数
| RoHS | RoHS Compliant By Exemption | 标准 | UL,CSA,RoHS |
| 海关税号 | 85364190 | 零件状态 | 3-1393144-9 |
电气参数
| 线圈类型 | Monostable | 线圈功率 | 1.2 VA |
| 量程（°/s） | :TE - K10 Series | 线圈电流 | 1 mA |
| 释放时间 | 10ms | 额定电压 | 120VAC |
| 线圈电阻 | 43 Ohms | 承载电流 | :15A |
| 输出电流 | :15A | 供电电压 | 12 V |
| 开关电压 | 120VAC - Max | Vgs(th)（最大）@ Id | 1.2 VAC |
| 最大额定电流 | 15A | 触点电压（最大） | :277V |
| 平均正向功率 | 1.2 VA | 集电极-发射极饱和电压（最大）@ Vge, Ic | 10.2 VAC |
| 触点额定电流 | 15 A | 数字供电电压 | :30V |
| 驱动电压（最大Rds On，最小Rds On） | 12VAC | ||
机械参数
| 深度 | 0.858in | 宽度 | 21.8 mm |
| 高度 | 34.9 mm | 长度 | 28.2 mm |
| 重量 | 0.032 | 包装方式 | Bulk |
| 端接方式 | QuickConnect | 触点形式 | 2 Form C (DPDT-BM) |
| 安装类型 | Socketable | 端子类型 | Quick Connect |
| 安装样式 | Socket | 引脚数 | 6 |
| 触头材料 | Silver Cadmium Oxide | 尺寸/外形 | 1.111in.Lx0.858in.Wx1.375in.H |
| 端接样式 | PCB | 接触件端接 | Quick Connect |
| 典型触点布局 | DPDT | ||
产品信息
| 类型 | Ice Cube Style Relay | 系列 | K10 |
| 产品特性 | Insulation - Class B | 功能 | GeneralPurpose |
| 继电器类型 | General Purpose | 制造商全称 | K10Series |
| 行业别名 | 3-1393144-9, K10P-11A15-12 | 应用细节 | General Purpose |
环境参数
| 动作时间 | 13ms | 工作温度 | -45°C ~ 70°C |
