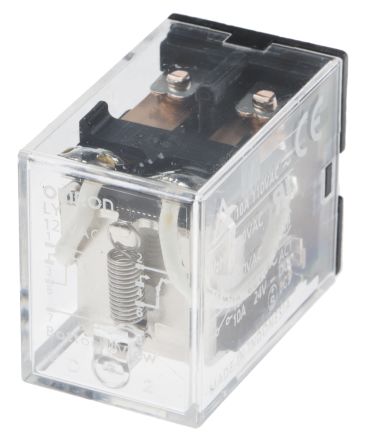

LY2-AC12
| 制造商 | Omron Corporation |
| 描述 | General Purpose Relays DPDT 12VAC Electromechanical Relay DPDT 10A 12VAC 46Ohm Socket RELAY GEN PURPOSE DPDT 10A 12V POWER RELAY, DPDT, 12VAC, 10A, PLUG IN RELAY;E-MECH;GENPURP;DPDT;CUR-RTG10A;CTRL-V12AC;VOL-RTG250/125AC/DC;8PIN Relay General Purpose Standard Single contact Standard bracket mounting Base: Plug-in/solder terminals Amperage: 10 AMP Coil Voltage: 12 Vac Configuration: DPDT Omron E5AN-C3ML-500-N AC100-240 双刀双掷 插入式 非闭锁继电器, 10 A, 12V ac |
| 分类 |
商业参数
| 交货时间 | 20 Days | 其他名称 | LY2AC12 |
| 子类别 | Electromechanical Relay | 零件号别名 | 1536188 |
| 产品类别 | General Purpose Relays | 标准包装数量 | 1 |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85364110 | ||
电气参数
| 线圈类型 | Non-Latching | 线圈功率 | 1.2 VA |
| 量程（°/s） | :OMRON - LY Series | 线圈电流 | 106.5 mA |
| 释放时间 | 25ms | 额定功率 | 240W|1.1kVA |
| 可见输出 | No | 额定电压 | 125 |
| 线圈电阻 | 91 Ohms | 承载电流 | :10A |
| 推频（MHz/V） | No | 输出电流 | :10A |
| 供电电压 | 12 VAC | 开关电压 | 250 VAC, 125 VAC |
| Vgs(th)（最大）@ Id | 3.6 VAC | 钳位电压 | 9.6VAC |
| 二极管配置 | No | 最大额定电流 | 10 |
| 触点电压（最大） | :110V | 最小输入电压 | 3.6VAC |
| 平均正向功率 | 1 VA to 1.2 VA | 集电极-发射极饱和电压（最大）@ Vge, Ic | 9.6 VAC |
| 触点额定电流 | 10 A | 数字供电电压 | :24V |
机械参数
| 密封 | Unsealed | 深度 | 21.5 |
| 宽度 | 27.94 mm | 高度 | 36.06 mm |
| 长度 | 21.59 mm | 重量 | 0.032 |
| 包装方式 | Bulk | 触点形式 | DPDT |
| 安装类型 | Socket | 安装样式 | Through Hole |
| 冷却的封装 | Dust Cover | 触头材料 | Silver Alloy |
| 总长度 | 28 | 端接样式 | Quick Connect |
| 触点数 | 8 | 接触件端接 | Pin |
| 典型触点布局 | DPDT | ||
产品信息
| 类型 | General Purpose Relay | 系列 | LY |
| 继电器类型 | Non-Latching | 行业别名 | LY2-AC12 |
环境参数
| 动作时间 | 25ms | 工作温度 | -25°C ~ 55°C |
文档与媒体
相关型号
PT08
omron electronics
Conn Relay Socket SKT 8 POS Solder ST Panel Mount Relay Sockets & Hardware SOCKET FOR LY SP DP RELAY SOCKET SLDR EAR LY SER Socket, back-connecting, 8-pin, solder terminals, PT08 ACCESSORY,RELAY;SOLDER;1;CHASSIS;LY1AND2POLERELAY;GENERALPURPOSE LY1 SOCKET/SOLDER TERM. Relays Accessories
PT08-0
Omron Industrial
Relay Sockets & Hardware SOCKET FOR LY SP DP Conn Relay Socket SKT 8 POS Solder ST Thru-Hole RELAY SOCKET PCB MNT LY SER Relay Socket For Use With LY1-0, LY2-0, LY2Z-0 RELAY SOCKET SOCKET, PCB, LY2, RELAY ACCESSORY,RELAY;PCB;1;PCB;LY1AND2POLERELAY;GENERALPURPOSE Socket; PIN:8; 10A; 250VAC; H:12mm; W:22mm; Mounting: PCB; -25÷55°C 继电器插座, 适用于LY1-0, LY2-0, LY2Z-0
PTF08A-E
Omron Industrial
Relay Sockets & Hardware SOCKET FOR LY SP DP RELAY SOCKET TRACK MNT LY SER Relay Socket For Use With Various Series Conn Relay Socket SKT 8 POS Screw ST RELAY SOCKET ACCESSORY,RELAY;SOCKET;1;TRACK;LY1AND2POLERELAY;GENERALPURPOSE Socket; PIN:8; 10A; 250VAC; H:30mm; W:28.5mm; Mounting: DIN LY1/2 SOCKET/TRACK MOUNT Relay socket, PTF08A-E, Omron Electronic Components 继电器插座, 适用于各种系列
PT08QN
Omron Industrial
Relay Sockets & Hardware LY1 SOCKET WIRE WRAP TERM. SOCKT BACK-CONNCTNG FOR LY RELAY Conn Relay Socket SKT 8 POS Wire Wrap ST Panel Mount
