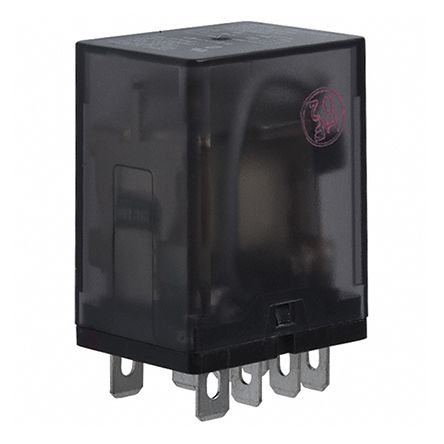

K10P-11A15-240
| 制造商 | TE Connectivity Ltd. |
| 描述 | General Purpose Relays DPDT 15Amp Mini RELAY GEN PURPOSE DPDT 15A 240V Electromechanical Relay DPDT 15A 240VAC 12KOhm Socket Electromechanical Relay DPDT 15A 240VAC 12KOhm Socket Product Highlights:K10 SeriesContact Arrangement = 2 Form C, DPDT, 2 C/OContact Current Rating = 15 Amps.Monostable Coil Magnetic SystemInput Voltage = 240 VAC POWER RELAY, DPDT, 240VAC, 15A, PLUG IN Relay;E-Mech;GenPurp;Cur-Rtg10A;Ctrl-V240AC;2Pole TE Connectivity 双刀双掷 插入式 非闭锁继电器, 15 A, 240V ac K10P-11A15-240=K10/K20 |
| 分类 |
商业参数
| 零件号别名 | 4-1393144-2 | 产品类别 | General Purpose Relays |
| 标准包装数量 | 25 | 工厂包装数量 | 25 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85364900 |
电气参数
| 线圈类型 | Monostable | 线圈功率 | 1.5 VA |
| 量程（°/s） | :TE - K10 Series | 线圈电流 | 6mA |
| 释放时间 | 10ms | 线圈电阻 | 12000 Ohms |
| 极数 | :2 | 输出电流 | :15A |
| 供电电压 | 240 VAC | 开关电压 | 120VAC - Max |
| Vgs(th)（最大）@ Id | 24 VAC | 触点电压（最大） | :277V |
| 平均正向功率 | 1.2 VA | 集电极-发射极饱和电压（最大）@ Vge, Ic | 204 VAC |
| 触点额定电流 | 15A | 数字供电电压 | :30V |
机械参数
| 宽度 | 21.8 mm | 高度 | 34.9 mm |
| 长度 | 28.2 mm | 重量 | 0.032 |
| 包装方式 | Tray | 触点形式 | 2 Form C (DPDT-BM) |
| 安装类型 | Socketable | 安装样式 | Socket |
| 触头材料 | Silver Cadmium Oxide | 端接样式 | Plug In, QC - 0.187" (4.7mm) |
| 接触件端接 | Tabs | 典型触点布局 | :DPDT |
产品信息
| 类型 | Ice Cube Style Relay | 系列 | K10 |
| 产品特性 | Insulation - Class B | 继电器类型 | General Purpose |
环境参数
| 动作时间 | 13ms | 工作温度 | -45°C ~ 70°C |
文档与媒体
相关型号
27E489
TE Connectivity / P&B
Relay Sockets & Hardware 2 POLE PCB SOCKET SOCKET RELAY PC MNT FOR K10 SER Conn Relay Socket SKT 8 POS Solder ST Thru-Hole Conn Relay Socket SKT 8 POS Solder ST Thru-Hole Product Highlights:SocketK10 SeriesNumber of Poles = 2Terminal Type = PCWithout Grounding Provision RELAY SOCKET Socket,Relay;PC;2;PotterandBrumfield;RoHSCompliant,ELVCompliant 27E489=SOCKET,K10,8,QC.187,NYL
27E895
TE Connectivity / P&B
Relay Sockets & Hardware DIN 8P K10 SERIES SOCKET DINRAIL W/SCREW TERM K10 Socket; Screw; DIN Rail Snap-Mount; 2; Potter and Brumfield Brand Conn Relay Socket SKT 2 POS Screw ST Panel Mount Conn Relay Socket SKT 2 POS Screw ST Panel Mount Product Highlights:SocketK10 SeriesNumber of Poles = 2Terminal Type = Screw, DIN Rail Snap-MountWithout Grounding Provision Socket,Relay;Screw,DINRailSnap-Mount;2;PotterandBrumfieldBrand 27E895=SOCKET,K10,8,QC,POLY,NA
27E487
te connectivity / p&b
Conn Relay Socket SKT 8 POS Screw ST Panel Mount Relay Sockets & Hardware SCREW TERM SCKT K10 SOCKET TERM FOR K10 RELAYS Socket; Screw; 2; Potter and Brumfield Brand; RoHS Compliant; ELV Compliant Conn Relay Socket SKT 8 POS Screw ST Panel Mount Product Highlights:SocketK10 SeriesNumber of Poles = 2Terminal Type = ScrewWithout Grounding Provision RELAY SOCKET Socket,Relay;Screw;2;PotterandBrumfield;RoHSCompliant,ELVCompliant 27E487=SOCKET,K10,8,SCW,PHEN,G
27E488
te connectivity / p&b
Conn Relay Socket SKT 8 POS Solder ST Relay Sockets & Hardware 2 POLE SOLDER SOCKET SOCKET RELAY SOLD TERM K10 SER Conn Relay Socket SKT 8 POS Solder ST Product Highlights:SocketK10 SeriesNumber of Poles = 2Terminal Type = SolderWithout Grounding Provision RELAY SOCKET Socket,Relay;Solder;2;PotterandBrumfield;RoHSCompliant,ELVCompliant
