点击放大查看

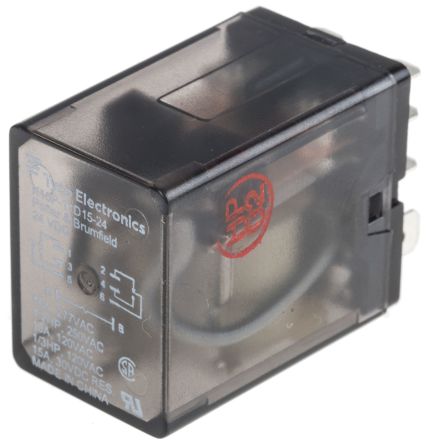

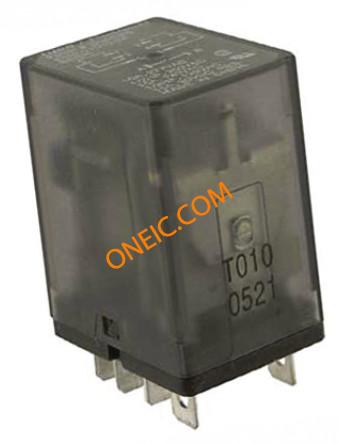

K10P-11D15-24
| 制造商 | TE Connectivity Ltd. |
| 描述 | General Purpose Relays DPDT SOCKET MT 24VDC RELAY GEN PURPOSE DPDT 15A 24V Relay,E-Mech,GenPurp,DPDT,Cur-Rtg15A Electromechanical Relay DPDT 15A 24VDC 650Ohm Socket Electromechanical Relay DPDT 15A 24VDC 650Ohm Socket Product Highlights:K10 SeriesContact Arrangement = 2 Form C, DPDT, 2 C/OContact Current Rating = 15 Amps.Monostable Coil Magnetic SystemWithout Coil Suppression Diode PLUG-IN RELAY, CONTACTS DPDT Relay;E-Mech;GenPurp;DPDT;Cur-Rtg15A;Ctrl-V24DC;Vol-Rtg120/30AC/DC;6Pin TE Connectivity 双刀双掷 插入式 非闭锁继电器, 24V K10P-11D15-24=K10/K20 |
| 分类 |
商业参数
| 交货时间 | 94 Days | 子类别 | Electromechanical Relay |
| 零件号别名 | 5-1393144-7 | 产品类别 | General Purpose Relays |
| 标准包装数量 | 25 | 工厂包装数量 | 25 |
合规参数
| RoHS | RoHS Compliant By Exemption | 标准 | UL,CSA,RoHS |
| 海关税号 | 85364110 | 零件状态 | 5-1393144-7 |
电气参数
| 线圈类型 | Monostable | 线圈功率 | 900 mW |
| 量程（°/s） | :TE - K10 Series | 线圈电流 | 37 mA |
| 释放时间 | 10ms | 核心电压 | :120V |
| 额定电压 | 120VAC | 线圈电阻 | 650 Ohms |
| 极数 | :2 | 输出电流 | :15A |
| 供电电压 | 24 V | 开关电压 | 120VAC - Max |
| Vgs(th)（最大）@ Id | 2.4 VDC | 最大额定电流 | 15A |
| 触点电压（最大） | :277V | 最大触点电流 | :15A |
| 平均正向功率 | 0.9 W | 集电极-发射极饱和电压（最大）@ Vge, Ic | 18 VDC |
| 触点额定电流 | 15A | 数字供电电压 | :30V |
| 供电电压 (Vcc/Vdd) | :30V | 驱动电压（最大Rds On，最小Rds On） | 24VDC |
| 额定交流电压（相对地/中性线） | :277V | ||
机械参数
| 深度 | 0.858in | 宽度 | 21.8 mm |
| 高度 | 34.9 mm | 长度 | 28.2 mm |
| 重量 | 0.96 | 包装方式 | Bulk |
| 端接方式 | QuickConnect | 触点形式 | 2 Form C (DPDT-BM) |
| 高度（最大） | :28.2mm | 安装类型 | Socketable |
| 端子类型 | Quick Connect | 安装样式 | Socket |
| 引脚数 | 6 | 触头材料 | Silver Cadmium Oxide |
| 尺寸/外形 | 1.111in.Lx0.858in.Wx1.375in.H | 端接样式 | Plug In, QC - 0.187" (4.7mm) |
| 接触件端接 | Plug | 典型触点布局 | DPDT |
产品信息
| 类型 | Ice Cube Style Relay | 系列 | K10 |
| 产品特性 | Insulation - Class B | 功能 | GeneralPurpose |
| 继电器类型 | General Purpose | 制造商全称 | K10Series |
| 行业别名 | 5-1393144-7, K10P-11D15-24 | 应用细节 | General Purpose |
环境参数
| 动作时间 | 13ms | 工作温度 | -45°C ~ 70°C |
文档与媒体
