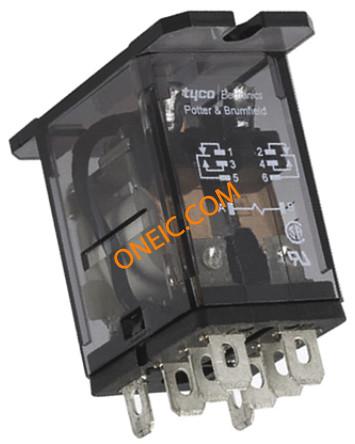

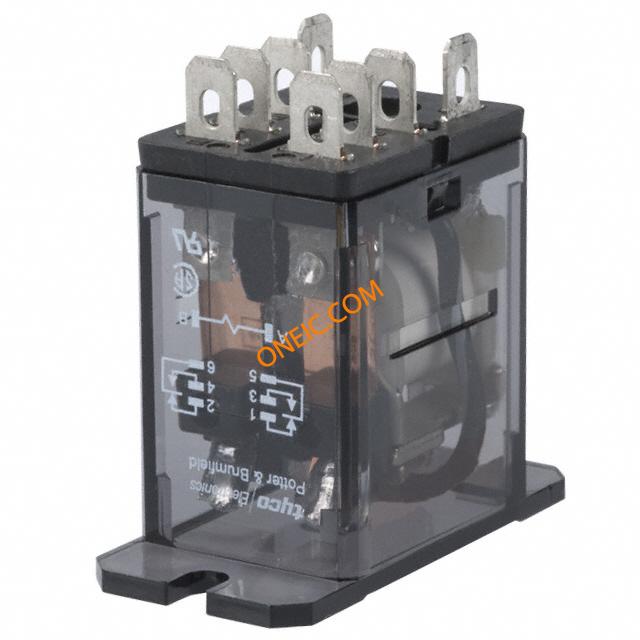

K10P-11D15-110
| 制造商 | TE Connectivity Ltd. |
| 描述 | General Purpose Relays DPDT SOCKET MT 110DC RELAY GEN PURPOSE DPDT 15A 110V RELAY, MONOSTABLE MAGNETIC COIL SYSTEM Electromechanical Relay DPDT 15A 110VDC 11KOhm Socket Electromechanical Relay DPDT 15A 110VDC 11KOhm Socket Product Highlights:K10 SeriesContact Arrangement = 2 Form C, DPDT, 2 C/OContact Current Rating = 15 Amps.Monostable Coil Magnetic SystemWithout Coil Suppression Diode POWER RELAY, DPDT, 110VDC, 15A, PLUG IN RELAY,MONOSTABLEMAGNETICCOILSYSTEM,15A,2FORMC,DPDT,2C/O K10P-11D15-110=K10/K20 |
| 分类 |
商业参数
| 交货时间 | 94 Days | 子类别 | Electromechanical Relay |
| 零件号别名 | 5-1393144-4 | 产品类别 | General Purpose Relays |
| 标准包装数量 | 25 | 工厂包装数量 | 25 |
合规参数
| RoHS | RoHS Compliant By Exemption | 海关税号 | 85364110 |
| 零件状态 | 5-1393144-4 | ||
电气参数
| 线圈类型 | Monostable | 线圈功率 | 1.1 W |
| 量程（°/s） | :TE - K10 Series | 线圈电流 | 11 mA |
| 释放时间 | 10ms | 线圈电阻 | 11000 Ohms |
| 极数 | :2 | 输出电流 | :15A |
| 供电电压 | 110 V | 开关电压 | 120VAC - Max |
| 最大额定电流 | 15A | 触点电压（最大） | :277V |
| 平均正向功率 | 0.9 W | 集电极-发射极饱和电压（最大）@ Vge, Ic | 82.5 VDC |
| 触点额定电流 | 15 A | 数字供电电压 | :30V |
| 驱动电压（最大Rds On，最小Rds On） | 110VAC | ||
机械参数
| 宽度 | 21.8 mm | 高度 | 34.9 mm |
| 长度 | 28.2 mm | 重量 | 0.027 |
| 包装方式 | Bulk | 触点形式 | 2 Form C (DPDT-BM) |
| 安装类型 | Chassis Mount | 安装样式 | Socket |
| 触头材料 | Silver Cadmium Oxide | 端接样式 | PCB |
| 接触件端接 | Quick Connect | 典型触点布局 | DPDT |
产品信息
| 类型 | Ice Cube Style Relay | 系列 | K10 |
| 产品特性 | Insulation - Class B | 功能 | MagneticSystem |
| 继电器类型 | General Purpose | 行业别名 | 5-1393144-4, K10P-11D15-110 |
环境参数
| 动作时间 | 13ms | 工作温度 | -45°C ~ 70°C |
