点击放大查看
87631-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 6 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 6POS .100 POL DUAL Housing FH 6way 2row Rec 2.54mm AmpModu Headers & Wire Housings 06 MODIV HSG COMP DR Conn Housing RCP 6 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 6Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR RECEPTACLE, 6POS, 2.54MM RECEPTACLE,AMPMODU,MODIV,6POSITION,.100IN,DUALROW,LATCHED Crimp housing Pitch2.54 mm Poles 6 straight / with polarization / with detent latching / Double row AMPMODU MOD IV, 87631-1, TE Connectivity TE Connectivity AMPMODU Mod IV 系列 2 行 2.54mm 节距 6 路 直 母 电缆安装 PCB 壳体 06 MODIV HSG COMP DR .100 POL |
| 分类 |
商业参数
| 商标名 | AMPMODU | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
电气参数
| 量程（°/s） | :TE - AMPMODU Mod IV Series | 额定电压 | 250 V |
| 开关功能 | Detent Latching | 最大额定电流 | 3 A |
| 最小供电电压 | 250VAC | ||
机械参数
| 颜色 | Black | 深度 | 15.24mm |
| 间距 | 2.54 mm | 宽度 | 6.1mm |
| 长度 | 7.62mm | 重量 | 0.002 |
| 包装方式 | Bulk | 导线线规 | 20-30 AWG |
| 排间距 | 0.100" (2.54mm) | 触头类型 | Female Socket |
| 外壳颜色 | Black | 安装类型 | Straight |
| 连接器类型 | Receptacle | 接触镀层 | :- |
| 紧固类型 | Locking Ramp | 排数 | 2 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Nylon |
| 总长度 | 7.62 mm | 主要材料 | InterconnectSystem |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 触点数 | 6 | 接触件端接 | Crimp |
| 位数 | 6 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | Mod IV |
| 制造商全称 | AMPMODU/MODIVSeries | 产品子类型 | Receptacles / Sockets - Housings |
| 应用细节 | Board to Board | 适用产品/相关产品 | PCB Connector |
环境参数
| 工作温度 | - 65 C to + 105 C | ||
文档与媒体
相关型号
104354-3
te connectivity / amp
Conn Unshrouded Header HDR 6 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HDR BRKWAY 6POS R/A DUAL Headers & Wire Housings 06 MODII HDR DRRA B/A W/HLDWN 06 MODII HDR DRRA B/A W/HLDWN 06 MODII HDR DRRA B/A W/HLDWN Search Keywords:board to board, AMPMODU, pcb connectors,
5-103166-1
te connectivity / amp
Conn Shrouded Header HDR 6 POS 2.54mm Solder RA Thru-Hole Tube .100 inch AMPMODU Headers CONN HEADER R/A .100 6POS 30AU Headers & Wire Housings SHROUDED RA DUAL 6 detent windows Conn Shrouded Header HDR 6 POS 2.54mm Solder RA Thru-Hole Tube Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 6Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, HEADER, RIGHT ANGLE, 2ROW, 6WAY 06 MODII HDR DRRA SHRD LF
5-103168-1
te connectivity / amp
Conn Shrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT .100 6 POS 30AU TE Connectivity AMPMODU Series 2.54mm Pitch 6 Way 2 Row Straight PCB Header, Solder Termination, 3A Headers & Wire Housings SHROUDED VERT DUAL 6 detent windows Conn Shrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 6Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, HEADER, VERTICAL, 2ROW, 6WAY MODUTHRUDRHDRSHRD,06MODIIHDRDRSTSHRD.100CL TE Connectivity AMPMODU Mod II 系列 2.54mm节距 6路 (2排) 直 PCB 针座, 焊接端接, 3A , 通孔 06 MODII HDR DRST SHRD .100CL
146257-3
te connectivity / amp
Conn Unshrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER BRKWAY 6POS DL GOLD

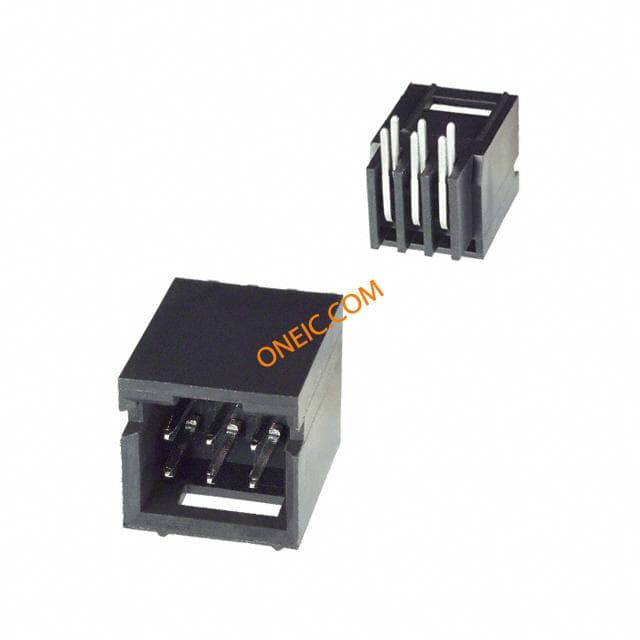

3-87579-5
