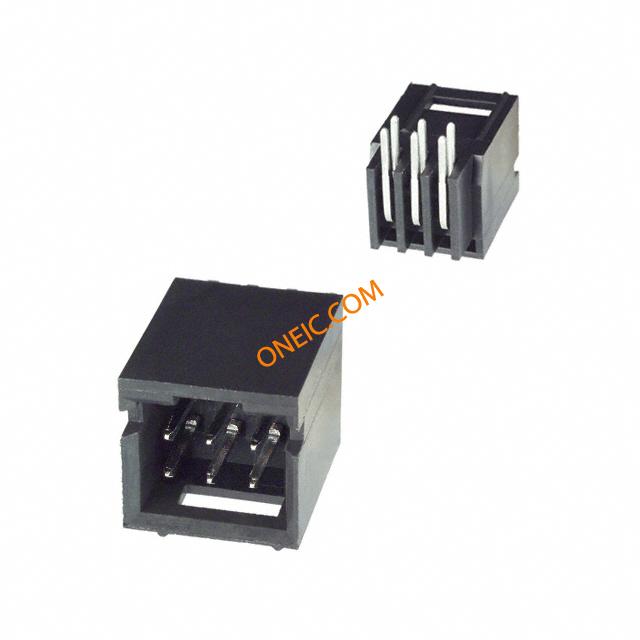

3-87579-5

点击放大查看

3-87579-5

制造商
TE Connectivity Ltd.
描述Conn Shrouded Header HDR 6 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER RTANG 6POS PCB TIN Headers & Wire Housings SHROUDED RA DUAL 6 detent windows Conn Shrouded Header HDR 6 POS 2.54mm Solder RA Thru-Hole Product Highlights:ConnectorHousing Gender = Header - PinContact Gender = PinHeader Type = Shrouded6 PositionsSearch Keywords:board to board, AMPMODU, pcb connectors, 06 MODII HDR DRRA SHRD .100CL
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

商标名AMPMODU其他名称A26758
产品类别Headers & Wire Housings标准包装数量Trays
工厂包装数量464

合规参数

RoHSContains lead / RoHS non-compliant标准编号CSA LR7189, UL E28476
材料阻燃等级UL 94 V-0

电气参数

开关功能Detent Windows连接器阻抗制动器窗口
最大额定电流3 A绝缘电阻5000 MOhms
保护额定电压（VPR）750 Vrms

机械参数

颜色Black深度16.23 mm
间距2.54 mm高度10.49 mm
底座类型带有锁定类型带有
包装方式Tray壳体颜色黑色
引脚样式正方形稳定器不带
排间距0.100" (2.54mm)端接方式Solder
触头类型Male Pin第一连接器否
外壳颜色Black安装类型Through Hole, Right Angle
连接器类型Header, Shrouded接触镀层Bright Tin Over Nickel
紧固类型Detent Lock安装样式Through Hole
排数2外壳材料（壳体）4- 面
插入件材料磷青铜触头材料Phosphor Bronze
壳体材料Thermoplastic总长度10.46 mm
包装数量464面板安装类型通孔
端接样式Through Hole第一连接器类型带罩
第一触头极性Pin (Male)外径.64 mm [ .025 in ]
触点数6端接表面处理带有
位数6柱体长度（配合）8.08 mm
安装孔直径带有接触长度 - 配合0.318" (8.08mm)
端子柱长度3.43 mm接触镀层厚度100µin (2.54µm)
静电放电屏蔽不带外壳尺寸，连接器布局1.68 mm [ .066 in ]
第一连接器安装特征否接触件镀层 - 插柱（配合端）锡铅：亮光

产品信息

类型Shrouded Header连接器性别HDR
系列AMPMODU MOD II钥匙类型否
产品子类型Headers加载位置数All

环境参数

密封等级不带防护等级带罩
工作温度- 55 C to + 105 C封装热阻1.397 mm [ .055 in ]
结工作温度否
