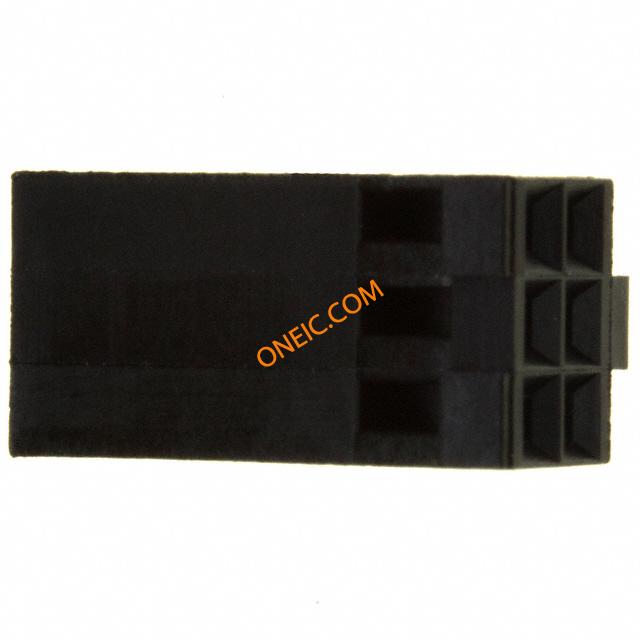

2-87977-8

制造商	TE Connectivity Ltd.
描述	Conn Housing RCP 6 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 6POS .100 POL DUAL Headers & Wire Housings .100 MODIV HSNG Conn Housing RCP 6 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 6Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 06 MODIV HSG COMP DR .100 POL
分类	连接器解决方案矩形连接器FPC/FFC矩形连接器

对参数有疑问？问 AI 助手

商业参数

商标名	AMPMODU	产品类别	Headers & Wire Housings
标准包装数量	Bulk	工厂包装数量	1

合规参数

RoHS	Lead free / RoHS Compliant	标准编号	CSA LR7189, UL E28476
材料阻燃等级	UL 94V-0

电气参数

额定电压	250 VAC	开关功能	Detent Latching
供电电压	250 VAC	接触电阻	12 mΩ
输入电阻	5000	连接器阻抗	压接
最大额定电流	3 A	保护额定电压（VPR）	750 V

机械参数

颜色	Black	间距	2.54 mm
高度	6.1 mm [ .24 in ]	长度	7.6 mm [ .3 in ]
锁定类型	带有	包装方式	Bulk
壳体颜色	黑色	导线线规	20-30 AWG
排间距	0.100" (2.54mm)	触头类型	Female Socket
安装类型	Straight	连接器类型	Receptacle
紧固类型	Locking Ramp	排数	2
插入件材料	铍铜	壳体材料	Nylon
包装数量	1	端接样式	Crimp
第一触头极性	Socket (Female)	触点数	6
接触件端接	Crimp	位数	6
兼容外壳尺寸（如TM-700等）	公端	安装孔直径	带有
静电放电屏蔽	不带

产品信息

备注	Contacts Not Provided	类型	Housing
连接器性别	RCP	系列	AMPMODU MOD IV
产品子类型	Connectors	其他规格	否
应用细节	Board-to-Board

环境参数

测试温度

标准部件 - 非辉光导线

工作温度

- 65 C to + 105 C

文档与媒体

在线文档

2-87977-8?RQPN=2-87977-8

相关型号

104354-3

te connectivity / amp

Conn Unshrouded Header HDR 6 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HDR BRKWAY 6POS R/A DUAL Headers & Wire Housings 06 MODII HDR DRRA B/A W/HLDWN 06 MODII HDR DRRA B/A W/HLDWN 06 MODII HDR DRRA B/A W/HLDWN Search Keywords:board to board, AMPMODU, pcb connectors,

¥2.1080

详情

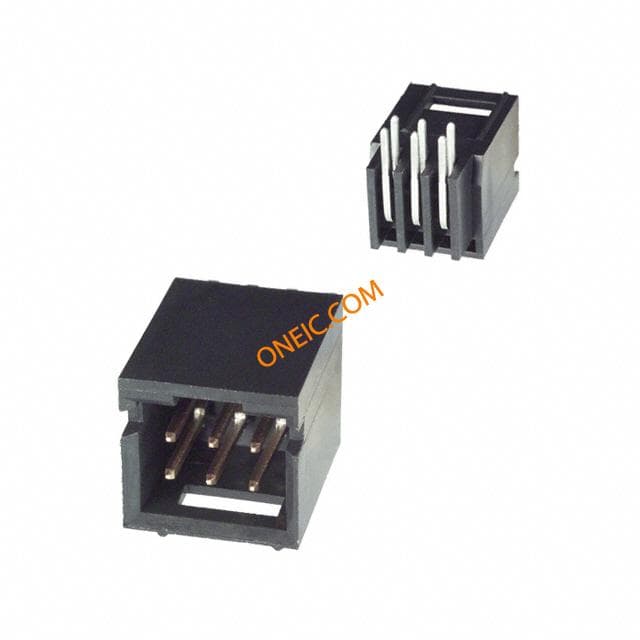

5-103166-1

te connectivity / amp

Conn Shrouded Header HDR 6 POS 2.54mm Solder RA Thru-Hole Tube .100 inch AMPMODU Headers CONN HEADER R/A .100 6POS 30AU Headers & Wire Housings SHROUDED RA DUAL 6 detent windows Conn Shrouded Header HDR 6 POS 2.54mm Solder RA Thru-Hole Tube Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 6Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, HEADER, RIGHT ANGLE, 2ROW, 6WAY 06 MODII HDR DRRA SHRD LF

¥4.4200

详情

102055-2

te connectivity / amp

Conn Shrouded Header HDR 6 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER 6POS DUAL R/A GOLD Headers & Wire Housings 6 MODII HEADER .100 3248 Conn Shrouded Header HDR 6 POS 2.54mm Solder RA Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 6Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 06 MODII HDR DRRA 3/4SHRD .100

¥5.3040

详情

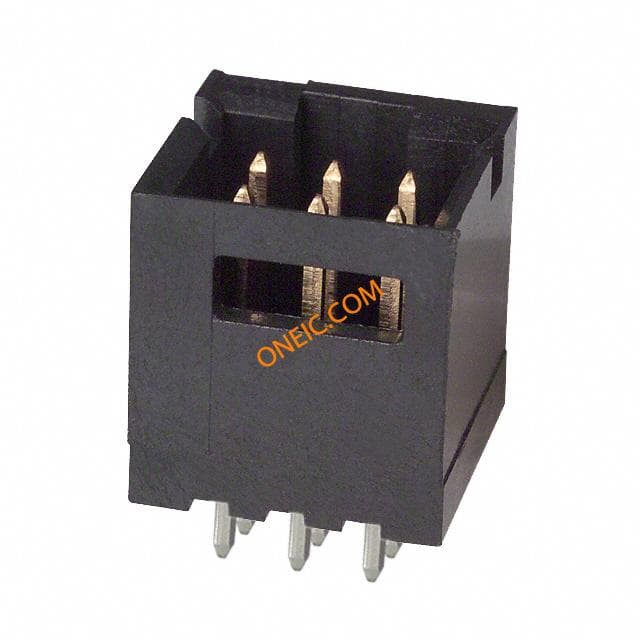

5-103168-1
