点击放大查看
104354-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Unshrouded Header HDR 6 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HDR BRKWAY 6POS R/A DUAL Headers & Wire Housings 06 MODII HDR DRRA B/A W/HLDWN 06 MODII HDR DRRA B/A W/HLDWN 06 MODII HDR DRRA B/A W/HLDWN Search Keywords:board to board, AMPMODU, pcb connectors, |
| 分类 |
商业参数
| 商标名 | AMPMODU | 标准包装规格 | 200 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Trays |
合规参数
| RoHS | Contains lead / RoHS non-compliant | 认可国家 | CSA LR7189, UL E28476 |
| 保护特性 | Without | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 额定交流电压 | 30 | 最大额定电流 | 3 A |
| 绝缘电阻 | 5000 MOhms | 保护额定电压（VPR） | 750 V |
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 底座类型 | 不带 | 包装方式 | Bulk |
| 壳体颜色 | 黑色 | 排间距 | 0.100" (2.54mm) |
| 稳定剂 | Without | 端接方式 | Solder |
| 触头类型 | Male Pin | 第一连接器 | 否 |
| 第二连接器 | Without | 触点形状 | Square |
| 安装类型 | Through Hole, Right Angle | 连接器类型 | Header, Unshrouded, Breakaway |
| 接触镀层 | Gold Over Nickel | 安装样式 | 标准 |
| 排数 | 2 | 插入件材料 | 磷青铜 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Thermoplastic |
| 安装特性 | 固定焊尾 | 包装数量 | 200 |
| 面板安装类型 | 通孔 | 端接样式 | Through Hole |
| 第一触头极性 | Pin (Male) | 外径 | .64 mm [ .025 in ] |
| 触点数 | 6 | 端接表面处理 | Matte Tin-Lead |
| 位数 | 6 | 柱体长度（配合） | 5.84 mm |
| 安装孔直径 | 不带 | 接触长度 - 配合 | 0.230" (5.84mm) |
| 端子柱长度 | 3.05 mm | 接触镀层厚度 | 15µin (0.38µm) |
| 静电放电屏蔽 | 不带 | 端接镀层厚度 | 100 – 200 |
产品信息
| 备注 | 参考客户图纸以确定板保持尾部的数量和位置。其他尾部长度也可用，请咨询 AMP Incorporated。 | 类型 | Unshrouded Header |
| 连接器性别 | HDR | 系列 | AMPMODU MOD II |
| 钥匙类型 | 否 | 产品子类型 | Headers |
| 选择性装载 | No | 加载位置数 | All |
环境参数
| 密封等级 | 不带 | 温度 | No |
| 工作温度 | - 65 C to + 105 C | 封装热阻 | 1.57 mm [ .062 in ] |
文档与媒体
相关型号
534206-3
te connectivity / amp
Conn Socket Strip SKT 6 POS 2.54mm Solder ST Thru-Hole Gang of Tubes .100 inch AMPMODU Receptacles CONN RECEPT 6POS .100 VERT DUAL Headers & Wire Housings REC 2X03P VRT T/H 4440 Conn Socket Strip SKT 6 POS 2.54mm Solder ST Thru-Hole Gang of Tubes Product Highlights:ConnectorConnector Type = Connector - ReceptacleMod II6 PositionsNumber of Rows = DualSearch Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal, 06 MODII VRT DR CE 100/115
535598-4
te connectivity / amp
Conn Socket Strip SKT 6 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Receptacles CONN RCPT 6POS .100 DUAL T/H AU 06 MODIV VRT DR CE RCPT ASSY
2-87977-8
te connectivity / amp
Conn Housing RCP 6 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 6POS .100 POL DUAL Headers & Wire Housings .100 MODIV HSNG Conn Housing RCP 6 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 6Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 06 MODIV HSG COMP DR .100 POL
1-86177-8
te connectivity / amp
Conn Housing RCP 6 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 6POS .100 DUAL ROW Headers & Wire Housings 06 HSG COMP DR .100CL Conn Housing RCP 6 POS 2.54mm Crimp ST Cable Mount Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 06 MODIV HSG COMP DR .100CL
102393-1
te connectivity / amp
Conn IDC Connector RCP 6 POS 2.54mm IDT ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RECEPT 6POS .100 IDC GOLD Headers & Wire Housings HSG DUAL 6P 30-26AWG Conn IDC Connector RCP 6 POS 2.54mm IDT ST Cable Mount Product Highlights:HousingPreloadedNumber of Positions = 6Housing Type = ReceptacleContact Type = ReceptacleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 06 AMPMODU MT ASSY DR .100CL
5-534206-3
te connectivity / amp
Conn Socket Strip SKT 6 POS 2.54mm Solder ST Thru-Hole Gang of Tubes .100 inch AMPMODU Receptacles CONN RECEPT 6POS .100 VERT DUAL Headers & Wire Housings REC 2X03P VRT T/H Conn Socket Strip SKT 6 POS 2.54mm Solder ST Thru-Hole Gang of Tubes Product Highlights:ReceptacleMod IINumber of Positions = 6Number of Rows = DualStandard ProfileSearch Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal, BOARD-BOARD CONN, RECEPTACLE, 6WAY, 2ROW VERTIIDRCERECASY,06MODIIVRTDRCE100/115 TE Connectivity AMPMODU Mod II 系列 2行 6路 直 2.54mm节距 通孔 印刷电路板插座, 板对板 06 MODII VRT DR CE 100/115
5-102398-1
te connectivity / amp
Conn IDC Connector RCP 6 POS 2.54mm IDT ST Cable Mount Headers & Wire Housings HSG DUAL 6P 26-22AWG .100 AMPMODU Headers, Housings & Contacts CONN RECEPT 6POS .100 IDC GOLD .100 AMPMODU Headers, Housings & Contacts Product Highlights:HousingHousing Type = Housing - ReceptacleAccepts Contact Type = Receptacle2.54 mm CenterlineRow-to-Row Spacing = 2.54 mmSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 06 AMPMODU MT ASSY DR.100CL SN
87133-7
te connectivity / amp
Conn Housing RCP 6 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 6POS .100 DUAL ROW Headers & Wire Housings CONN HOUSING 6 POS DUAL ROW Conn Housing RCP 6 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 6Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE Housing,Connector;Crimp-Snap;Dual;6;250VAC;3A;750V 06 LOCKING CLIP HSG DR .100CL

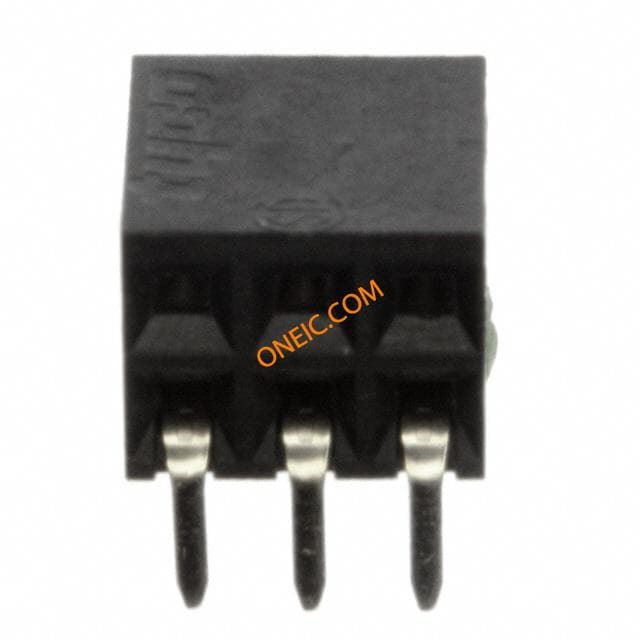

6-535512-2
