点击放大查看

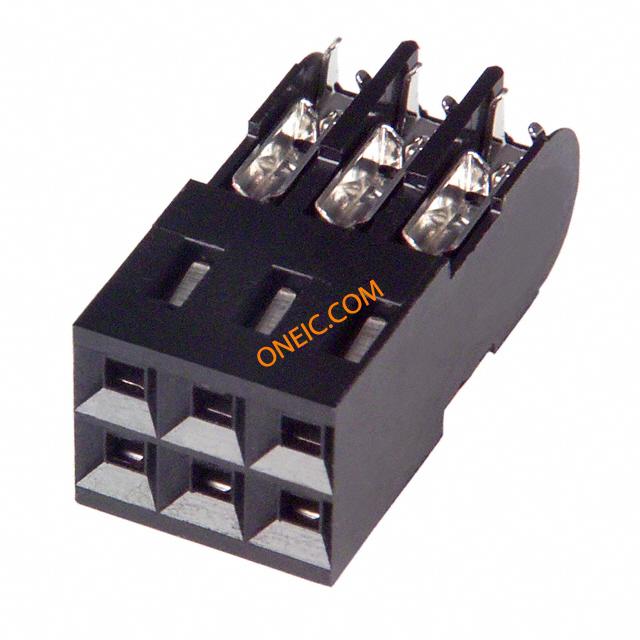

102393-1

制造商	TE Connectivity Ltd.
描述	Conn IDC Connector RCP 6 POS 2.54mm IDT ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RECEPT 6POS .100 IDC GOLD Headers & Wire Housings HSG DUAL 6P 30-26AWG Conn IDC Connector RCP 6 POS 2.54mm IDT ST Cable Mount Product Highlights:HousingPreloadedNumber of Positions = 6Housing Type = ReceptacleContact Type = ReceptacleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 06 AMPMODU MT ASSY DR .100CL
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

商标名	AMPMODU	产品类别	Headers & Wire Housings
标准包装数量	Trays	工厂包装数量	410

合规参数

RoHS	Contains lead / RoHS non-compliant	标准编号	CSA LR7189, UL E28476
材料阻燃等级	UL 94V-0

电气参数

接触电阻	15 mΩ	输入电阻	5000
连接器阻抗	刺破式压接 (IDC)	最大额定电流	3 A
保护额定电压（VPR）	600 V

机械参数

颜色	Black	间距	2.54 mm
高度	6.96 mm [ .24 in ]	长度	7.6 mm [ .3 in ]
锁定类型	不带	包装方式	Tray
导线类型	Discrete or Ribbon Cable	壳体颜色	黑色
导线线规	26-30 AWG	排间距	0.100" (2.54mm)
端接方式	IDT	触头类型	Female Socket
安装类型	Free Hanging (In-Line)	连接器类型	Receptacle
接触镀层	Gold Over Nickel	安装样式	Wire
排数	2	压力（PSI）	标准
插入件材料	磷青铜	触头材料	Phosphor Bronze
壳体材料	Thermoplastic	包装数量	410
电缆端接方式	IDC	端接样式	IDC
第一触头极性	Socket (Female)	触点数	6
绝缘直径	1.27 mm [ .05 in ]	位数	6
安装孔直径	不带	接触镀层厚度	30µin (0.76µm)

产品信息

类型	IDC Connector	连接器性别	RCP
系列	AMPMODU MT	产品特性	Closed End
产品子类型	Receptacles / Sockets - Housings	其他规格	是

环境参数

测试温度

标准部件 - 非辉光导线

工作温度

- 65 C to + 105 C
