146256-3

点击放大查看

146256-3

制造商
TE Connectivity Ltd.
描述Conn Unshrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER B/A 6POS DL PCB AU Headers & Wire Housings 06 MODII HDR DRST B/A .100CL 06 MODII HDR DRST B/A .100CL 06 MODII HDR DRST B/A .100CL Search Keywords:board to board, AMPMODU, pcb connectors,
分类
连接器解决方案板对板连接器带罩排针连接器
对参数有疑问？问 AI 助手

商业参数

商标名AMPMODU标准包装规格520
产品类别Headers & Wire Housings标准包装数量Bulk

合规参数

RoHSContains lead / RoHS non-compliant无铅定义Reflow solder capable to 245°C, Reflow solder capable to 260°C
标准编号CSA LR7189, UL E28476RoHS/ELV合规状态Not ELV/RoHS compliant
材料阻燃等级UL 94V-0

电气参数

额定交流电压30击穿电压750
最大额定电流3绝缘电阻5,000
保护额定电压（VPR）750 V

机械参数

颜色Black间距2.54 mm
底座类型带有锁定类型不带
包装方式Bulk壳体颜色黑色
引脚样式正方形稳定器不带
排间距0.100" (2.54mm)端接方式Solder
触头类型Male Pin柱间距2.54 x 2.54 [.100 x .100]
第一连接器No第二连接器Without
触点形状Square安装类型Vertical
连接器类型Breakaway接触镀层Gold Over Nickel
安装样式标准排数2
插入件材料磷青铜触头材料Phosphor Bronze
壳体材料Thermoplastic安装特性Without
包装数量520面板安装类型Without
尺寸/外形0.64 [.025]端接样式Through Hole
第一连接器类型分离第一触头极性Pin (Male)
外径.64 mm [ .025 in ]触点数6
端接表面处理不带位数6
柱体长度（配合）5.84 mm安装孔直径不带
接触长度 - 配合5.84 [0.230]表面贴装焊盘尺寸Yes
端子柱长度3.05 [0.120]接触镀层厚度15µin (0.38µm)
静电放电屏蔽不带第一连接器安装特征否

产品信息

类型Unshrouded Header连接器性别HDR
系列AMPMODU MOD II钥匙类型否
制造商全称AMP产品子类型Header
选择性装载No加载位置数All

环境参数

密封等级不带温度Yes
工作温度-65 – +105封装热阻1.57 mm [ .062 in ]
结工作温度是

相关型号

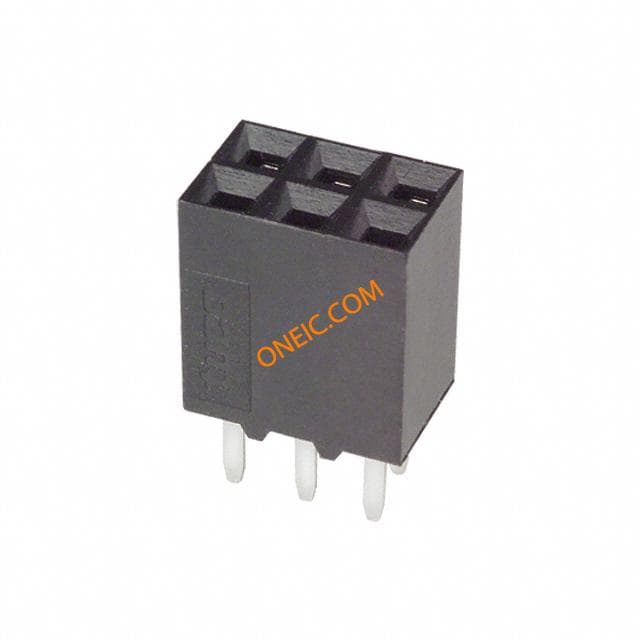

534206-3

534206-3

te connectivity / amp

Conn Socket Strip SKT 6 POS 2.54mm Solder ST Thru-Hole Gang of Tubes .100 inch AMPMODU Receptacles CONN RECEPT 6POS .100 VERT DUAL Headers & Wire Housings REC 2X03P VRT T/H 4440 Conn Socket Strip SKT 6 POS 2.54mm Solder ST Thru-Hole Gang of Tubes Product Highlights:ConnectorConnector Type = Connector - ReceptacleMod II6 PositionsNumber of Rows = DualSearch Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal, 06 MODII VRT DR CE 100/115

¥6.0112
详情
147105-3

147105-3

te connectivity / amp

Conn Socket Strip RCP 6 POS 2.54mm Solder ST SMD T/R .100 inch AMPMODU Receptacles CONN RCPT MOD IV 6POS DL GOLD Headers & Wire Housings 06 MODIV VRT DR Conn Socket Strip RCP 6 POS 2.54mm Solder ST SMD T/R Product Highlights:ReceptacleMod IVNumber of Positions = 6Number of Rows = DualStandard ProfileSearch Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal, 06 MODIV VRT DR SFMNT 30AU

¥3.2266
详情
535598-4

535598-4

te connectivity / amp

Conn Socket Strip SKT 6 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Receptacles CONN RCPT 6POS .100 DUAL T/H AU 06 MODIV VRT DR CE RCPT ASSY

详情

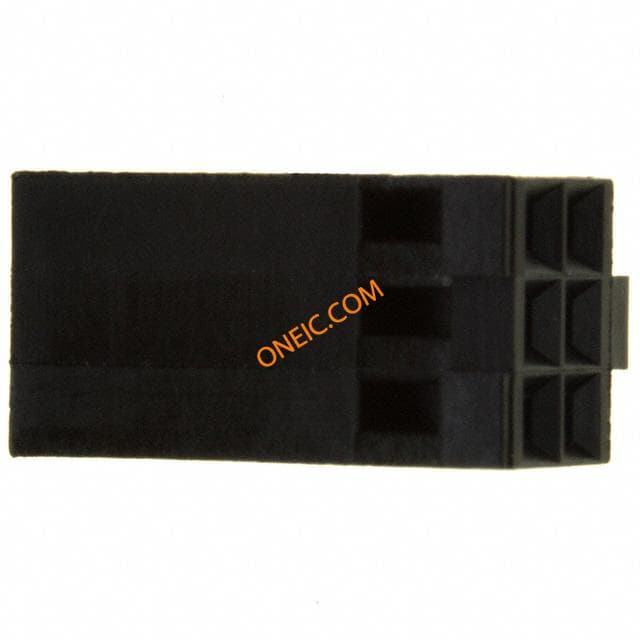

2-87977-8

2-87977-8

te connectivity / amp

Conn Housing RCP 6 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 6POS .100 POL DUAL Headers & Wire Housings .100 MODIV HSNG Conn Housing RCP 6 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 6Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 06 MODIV HSG COMP DR .100 POL

¥3.2844
详情
1-86177-8

1-86177-8

te connectivity / amp

Conn Housing RCP 6 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 6POS .100 DUAL ROW Headers & Wire Housings 06 HSG COMP DR .100CL Conn Housing RCP 6 POS 2.54mm Crimp ST Cable Mount Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 06 MODIV HSG COMP DR .100CL

¥11.1316
详情
102393-1

102393-1

te connectivity / amp

Conn IDC Connector RCP 6 POS 2.54mm IDT ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RECEPT 6POS .100 IDC GOLD Headers & Wire Housings HSG DUAL 6P 30-26AWG Conn IDC Connector RCP 6 POS 2.54mm IDT ST Cable Mount Product Highlights:HousingPreloadedNumber of Positions = 6Housing Type = ReceptacleContact Type = ReceptacleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 06 AMPMODU MT ASSY DR .100CL

¥9.6390
详情
5-534206-3

5-534206-3

te connectivity / amp

Conn Socket Strip SKT 6 POS 2.54mm Solder ST Thru-Hole Gang of Tubes .100 inch AMPMODU Receptacles CONN RECEPT 6POS .100 VERT DUAL Headers & Wire Housings REC 2X03P VRT T/H Conn Socket Strip SKT 6 POS 2.54mm Solder ST Thru-Hole Gang of Tubes Product Highlights:ReceptacleMod IINumber of Positions = 6Number of Rows = DualStandard ProfileSearch Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal, BOARD-BOARD CONN, RECEPTACLE, 6WAY, 2ROW VERTIIDRCERECASY,06MODIIVRTDRCE100/115 TE Connectivity AMPMODU Mod II 系列 2行 6路 直 2.54mm节距 通孔 印刷电路板插座, 板对板 06 MODII VRT DR CE 100/115

¥3.7121
详情
87456-1

87456-1

te connectivity / amp

Conn Housing RCP 6 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 6POS .100 DUAL Headers & Wire Housings MOD 4 HOUSING Conn Housing RCP 6 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 6Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE RECEPTACLE,AMPMODU,MODIV,6POSITION,.100IN,DUALROW 06 MODIV HSG COMP DR .100CL

¥3.1552
详情
5-102398-1

5-102398-1

te connectivity / amp

Conn IDC Connector RCP 6 POS 2.54mm IDT ST Cable Mount Headers & Wire Housings HSG DUAL 6P 26-22AWG .100 AMPMODU Headers, Housings & Contacts CONN RECEPT 6POS .100 IDC GOLD .100 AMPMODU Headers, Housings & Contacts Product Highlights:HousingHousing Type = Housing - ReceptacleAccepts Contact Type = Receptacle2.54 mm CenterlineRow-to-Row Spacing = 2.54 mmSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 06 AMPMODU MT ASSY DR.100CL SN

¥9.7920
详情
87133-7

87133-7

te connectivity / amp

Conn Housing RCP 6 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 6POS .100 DUAL ROW Headers & Wire Housings CONN HOUSING 6 POS DUAL ROW Conn Housing RCP 6 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 6Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE Housing,Connector;Crimp-Snap;Dual;6;250VAC;3A;750V 06 LOCKING CLIP HSG DR .100CL

¥9.0600
详情
535542-3

535542-3

te connectivity / amp

Conn Socket Strip SKT 6 POS 2.54mm Solder ST Thru-Hole Gang of Tubes .100 inch AMPMODU Receptacles CONN RECEPT 6POS .100 VERT DUAL Headers & Wire Housings 06 MODIV VRT DR CE 100/130 Conn Socket Strip SKT 6 POS 2.54mm Solder ST Thru-Hole Gang of Tubes Product Highlights:ReceptacleMod IVNumber of Positions = 6Number of Rows = DualLow ProfileSearch Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal, 06 MODIV VRT DR CE 100/130

¥3.5360
详情
87133-8

87133-8

te connectivity / amp

Conn Housing RCP 6 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 6POS .100 DUAL ROW Headers & Wire Housings CONN HOUSING 6 POS DUAL ROW 87133-8 Conn Housing RCP 6 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 6Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 06 LOCKING CLIP HSG DR MRKD

¥5.7800
详情
147102-3

147102-3

te connectivity / amp

Conn Socket Strip RCP 6 POS 2.54mm Solder ST SMD Gang of Tubes .100 inch AMPMODU Receptacles CONN RCPT 6POS DUAL VERT SMD Headers & Wire Housings 06 MODIV VRT DR 100/SFMNT 30AU 06 MODIV VRT DR 100/SFMNT 30AU 06 MODIV VRT DR 100/SFMNT 30AU Search Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal,

¥5.6100
详情
87631-2

87631-2

te connectivity / amp

Conn Housing RCP 6 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 6POS .100 POL DUAL 2.54mm,housing,6W,Mod IV,DR,snap in Headers & Wire Housings POLARIZED HSG 6 DBL detent latching Conn Housing RCP 6 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 6Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CRIMP HOUSING, 2 ROW, 2X3WAY Housing,Connector;Crimp-Snap;Dual;6;250VAC;3A;750V Crimp housing Pitch2.54 mm Poles 6 Contact DesignStamped Double row / straight / without polarization AMPMODU MOD IV, 87631-2, TE Connectivity TE Connectivity AMPMODU Mod IV 系列 2 行 2.54mm 节距 6 路 直 母 电缆安装 PCB 壳体 06 MODIV HSG DR MRKD .100 POL

¥3.1756
详情
5-102694-1

5-102694-1

te connectivity / amp

Conn IDC Connector RCP 6 POS 2.54mm IDT ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RECEPT 6POS .100 IDC GOLD Headers & Wire Housings HSG DUAL 6P 26-22AWG .100 IDC AMPMODU Housings & Contacts .100 IDC AMPMODU Housings & Contacts Product Highlights:Receptacle AssemblyWire Termination Type = Insulation Displacement Crimp (IDC)Number of Positions = 6Number of Rows = DualTerminate To WireSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 06 ampmodu mt assy dr.sn

¥13.1240
详情

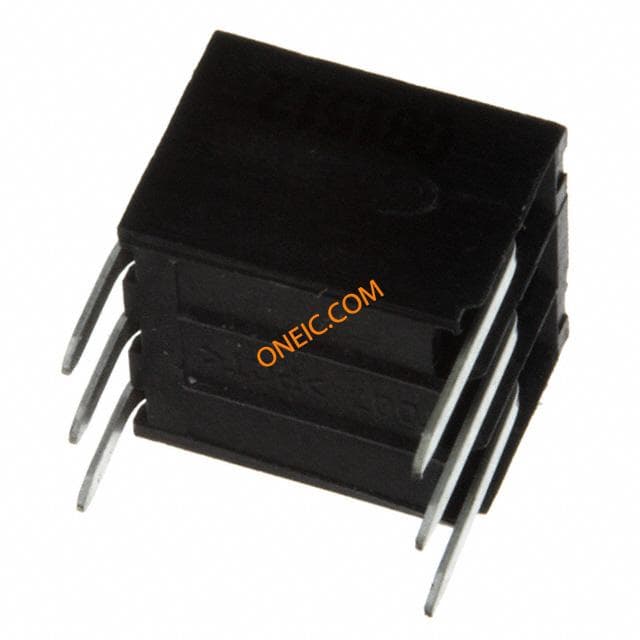

6-5535512-2
