点击放大查看

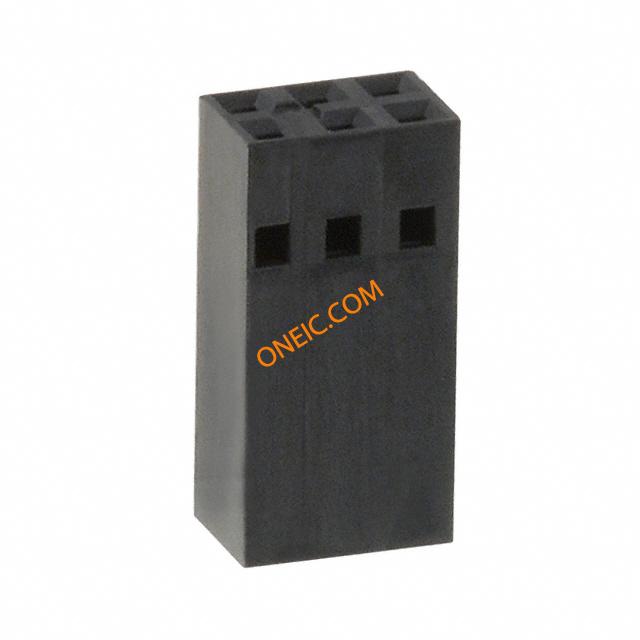

104482-2

制造商	TE Connectivity Ltd.
描述	Conn Housing RCP 6 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 6POS .100 DUAL ROW Conn Housing RCP 6 POS 2.54mm Crimp ST Cable Mount Product Highlights:ConnectorNot PreloadedHousing Gender = Connector - ReceptacleAccepts Contact Gender = Receptacle2.54 mm CenterlineSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE RECEPTACLE,AMPMODU,MODIV,6POSITION,DUALROW 06 SHORT PT RCPT HSG DR .100CL
分类	连接器解决方案矩形连接器高可靠性矩形连接器

对参数有疑问？问 AI 助手

商业参数

标准包装数量

Bulk

合规参数

RoHS	Lead free / RoHS Compliant	认可国家	CSA LR7189, UL E28476
材料阻燃等级	Yes

电气参数

供电电压	300 VAC	输入电阻	5000
连接器阻抗	压接	最大额定电流	3
保护额定电压（VPR）	750 V

机械参数

颜色	Black	间距	2.54 mm
包装方式	Bulk	壳体颜色	黑色
导线线规	20-32 AWG	排间距	0.100" (2.54mm)
端接方式	12 mΩ	触头类型	Female Socket
第二连接器	Without	安装类型	Straight
连接器类型	Receptacle	安装样式	不带
排数	2	高度（英寸）	.198
壳体材料	热塑塑料	总长度	.298
包装数量	1	面板安装类型	不带
主要材料	InterconnectSystem	端接样式	插座
触点数	6	接触件端接	Crimp
位数	6	兼容外壳尺寸（如TM-700等）	接触件
安装孔直径	不带	静电放电屏蔽	不带

产品信息

备注	Contacts Not Provided	类型	Housing
连接器性别	RCP	制造商全称	AMPMODU/MODIVSeries
产品子类型	连接器

环境参数

工作温度

-65 – 105
