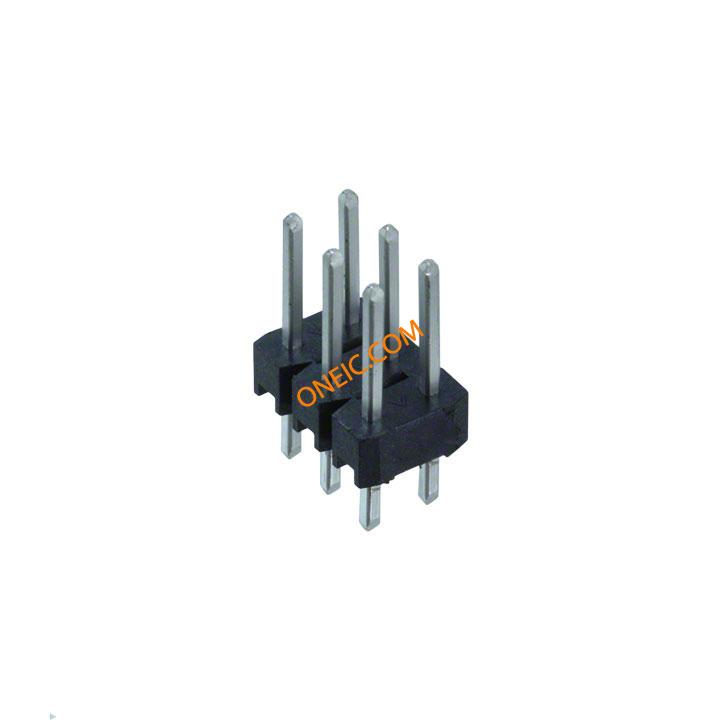

5-146254-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Unshrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER BRKWAY 6POS DL .100 Headers & Wire Housings 6P HEADER TIN double row Conn Unshrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole Product Highlights:ConnectorHousing Gender = Header - PinContact Gender = PinHeader Type = Breakaway6 PositionsSearch Keywords:board to board, AMPMODU, pcb connectors, 06 MODII HDR DRST B/A .100CL |
| 分类 |
商业参数
| 商标名 | AMPMODU | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | CSA LR7189, UL E28476 |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 额定交流电压 | 30 | 连接器阻抗 | 不带 |
| 最大额定电流 | 3 A | 绝缘电阻 | 5000 MOhms |
| 保护额定电压（VPR） | 750 V | ||
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 底座类型 | 带有 | 包装方式 | Bulk |
| 壳体颜色 | 黑色 | 引脚样式 | 直角 |
| 排间距 | 0.100" (2.54mm) | 稳定剂 | Without |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 第一连接器 | 否 | 第二连接器 | Without |
| 安装类型 | Through Hole | 连接器类型 | Header, Unshrouded, Breakaway |
| 接触镀层 | Matte Tin Over Nickel | 安装样式 | 标准 |
| 排数 | 2 | 插入件材料 | 磷青铜 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Thermoplastic |
| 包装数量 | 520 | 面板安装类型 | 表面贴装, 通孔 |
| 端接样式 | Through Hole | 第一触头极性 | Pin (Male) |
| 外径 | .64 mm [ .025 in ] | 触点数 | 6 |
| 端接表面处理 | Matte Tin-Lead | 位数 | 6 |
| 柱体长度（配合） | 5.84 mm | 安装孔直径 | 不带 |
| 接触长度 - 配合 | 0.230" (5.84mm) | 端子柱长度 | 3.05 mm |
| 接触镀层厚度 | 100µin (2.54µm) | 静电放电屏蔽 | 不带 |
| 端接镀层厚度 | 100 – 200 | ||
产品信息
| 类型 | Unshrouded Header | 连接器性别 | HDR |
| 系列 | AMPMODU MOD II | 钥匙类型 | 否 |
| 产品子类型 | Headers | 选择性装载 | No |
| 加载位置数 | All | ||
环境参数
| 密封等级 | 不带 | 温度 | Yes |
| 工作温度 | - 65 C to + 105 C | 封装热阻 | 1.57 mm [ .062 in ] |
相关型号
