点击放大查看

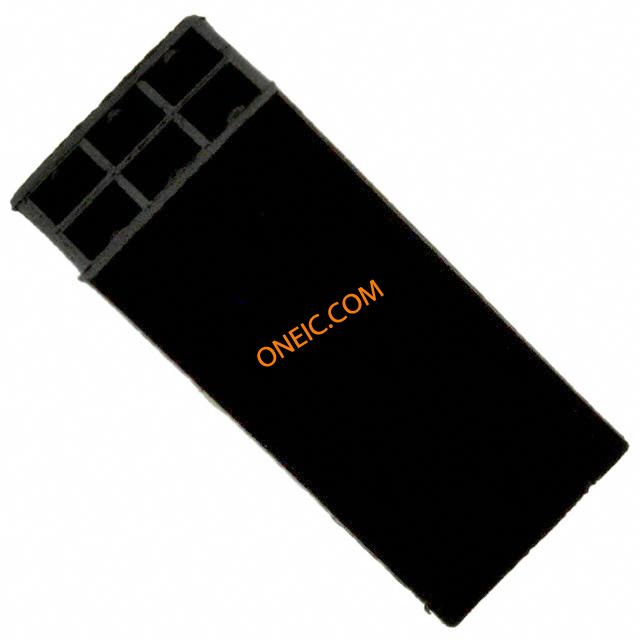

87133-7

制造商	TE Connectivity Ltd.
描述	Conn Housing RCP 6 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 6POS .100 DUAL ROW Headers & Wire Housings CONN HOUSING 6 POS DUAL ROW Conn Housing RCP 6 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 6Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE Housing,Connector;Crimp-Snap;Dual;6;250VAC;3A;750V 06 LOCKING CLIP HSG DR .100CL
分类	连接器解决方案矩形连接器高可靠性矩形连接器

对参数有疑问？问 AI 助手

商业参数

商标名	AMPMODU	产品类别	Headers & Wire Housings
标准包装数量	Bulk	工厂包装数量	1

合规参数

RoHS	Lead free / RoHS Compliant	标准	ULE28476,CSALR7189,RoHSCompliant,ELVCompliant
标准编号	CSA LR7189, UL E28476	材料阻燃等级	UL94V-0

电气参数

额定电压	250 VAC	供电电压	250 VAC
接触电阻	12 mΩ	输入电阻	5000
连接器阻抗	压接	击穿电压	750V
最大额定电流	3 A	绝缘电阻	5000Megohms
保护额定电压（VPR）	750 V

机械参数

颜色	Black	间距	2.54 mm
高度	7.62 mm [ .3 in ]	长度	8.03 mm [ .316 in ]
锁定类型	不带	包装方式	Bulk
壳体颜色	黑色	排间距	0.100" (2.54mm)
端接方式	CrimpSnap-In	触头类型	Female Socket
极化	No	安装类型	Straight
行程角度	Straight	连接器类型	Receptacle
排数	2	插入件材料	磷青铜
壳体材料	Polyester	总长度	0.316"
包装数量	1	主要材料	InterconnectSystem
连接器 - 电缆	No	插针孔直径	0.1"
端接样式	Crimp	第一触头极性	Socket (Female)
触点数	6	接触件端接	Crimp
位数	6	安装孔直径	不带

产品信息

备注	Contacts Not Provided	类型	Housing
连接器性别	RCP	系列	AMPMODU Locking Clip
制造商全称	AMPMODU	产品子类型	Connectors
其他规格	否	应用细节	Board-to-Board
矩阵（列×行）	0.100x0.100in.

环境参数

测试温度

标准部件 - 非辉光导线

工作温度

- 65 C to + 105 C

文档与媒体

在线文档

87133-7

在线文档

87133-7?RQPN=87133-7
