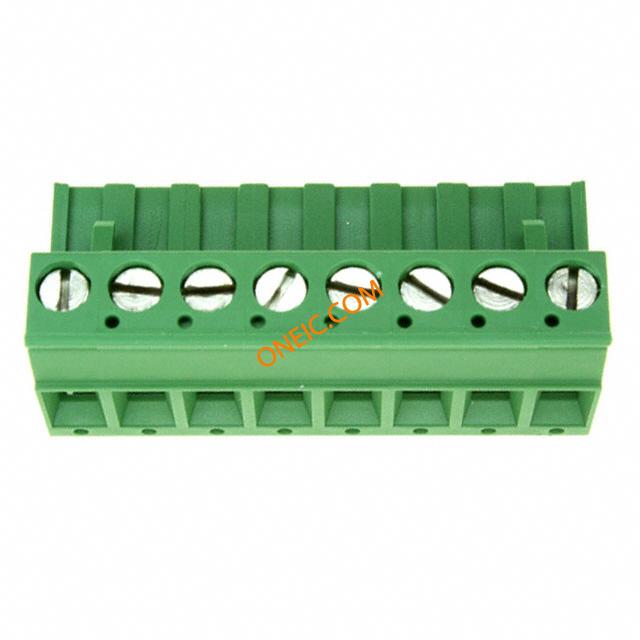

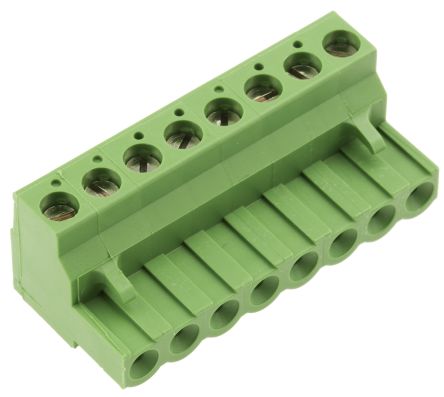

796634-8
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Terminal Block F 8 POS 5.08mm Screw RA Cable Mount 15A/Contact TERM BLOCK PLUG 8POS STR 5.08MM Non-Fused Terminal Block Cable Mount 8 Way, Screw Down, 300V ac Pluggable Terminal Blocks 5.08MM RA PLUG 8P Conn Terminal Block F 8 POS 5.08mm Screw RA Cable Mount 15A/Contact Product Highlights:ConnectorConnector Type = PlugNot ShroudedHousing Color = GreenSide StackableSearch Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end PLUG, TERMINAL BLOCK, 5.08MM, 8WAY Conn;TermBlk;Plug;Screw;8;5.08mm;RightAngle;30-12AWG;Green;15A;300V;M3 Pluggable terminal block; plug; female; 5.08mm; ways:8; 15A; green TE Connectivity 8 路 印刷电路板接线端子块, 电缆安装, 螺钉拧紧端接, 300 V 交流 8 POS 5.08MM R/A PLUG,TRM BLK |
| 分类 |
商业参数
| 产品 | Pluggable Terminal Blocks | 产品类别 | Pluggable Terminal Blocks |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366930 |
| 抗辐射加固 | No | 认证机构 | ULRecognized |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 电流 | 15A | 电压 | 300V |
| 额定电压 | 300 V ac | 极数 | 8Poles |
| 最大额定电流 | 15A | 最小供电电压 | 300VAC |
机械参数
| 颜色 | Green | 深度 | 18.4 mm |
| 间距 | 5.08 mm | 高度 | 15.5 mm |
| 长度 | 40.64mm | 重量 | 0.02 |
| 材料（通用） | Nylon | 包装方式 | Bulk |
| 遮蔽类型 | No | 引脚样式 | Side |
| 导线线规 | 12-30 AWG | 端接方式 | Screw |
| 柱间距 | 5.08mm | 基体材料 | polyamide |
| 外壳颜色 | Green | 安装类型 | Cable Mount |
| 连接器类型 | :Eurostyle Terminal Block | 接触镀层 | Tin |
| 安装样式 | Cable | 排数 | 1 |
| 插头进线方向 | 180° | 触头材料 | Phosphor Bronze |
| 壳体材料 | Polyamide (PA) | 总长度 | 40.64 mm |
| 主要材料 | PCB | 尺寸/外形 | see |
| 连接器 - 电缆 | plug | 插针孔直径 | 0.2(5.08)In.(mm) |
| 连接器颜色 | green | 触点数 | 8 |
| 位数 | 8 | 接线端子类型 | Plug, Female Sockets |
| 进线位置 | Front | 线规或范围 - AWG | 30-12 |
| 线规或范围 - mm² | 12 | 第一连接器安装类型 | :Cable |
| 每排/每行位置数 | 8 | ||
产品信息
| 类型 | Terminal Block | 级别 | SingleLevel |
| 连接器性别 | F | 系列 | :- |
| 产品特性 | Retention Latches (Non-Wire Side) | 制造商全称 | Buchanan |
| 单元数量 | 1 | 层数 | 1 |
| 每层位数 | 8 | ||
环境参数
| 工作温度 | -40...105°C | ||
文档与媒体
相关型号

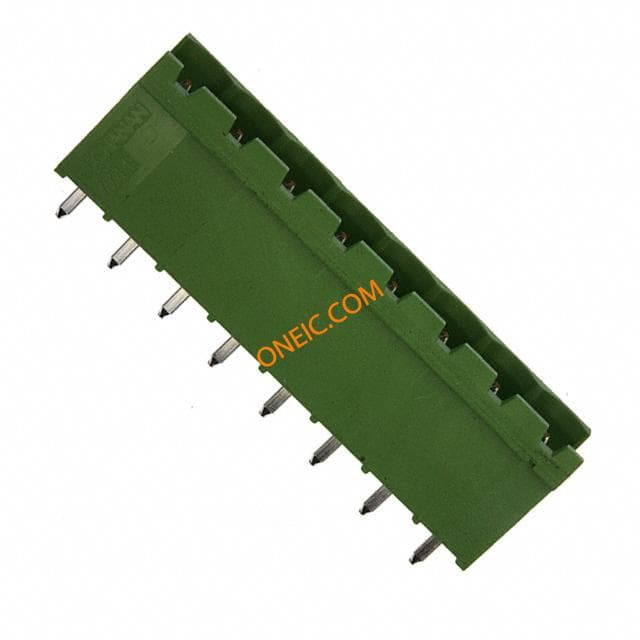

282825-8
te connectivity / amp
Conn Shrouded Header HDR 8 POS 5.08mm Solder ST Thru-Hole Terminal Block Connectors TERM BLOCK HDR 8POS VERT 5.08MM TE Connectivity 282825 Series 5.08mm Pitch 8 Way 1 Row Straight PCB Header, Solder Termination, 15A Pluggable Terminal Blocks 8 POS SHROUDED HDR Terminal Block Connectors Product Highlights:ConnectorConnector Type = HeaderShroudedHousing Color = GreenSide StackableSearch Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end 8WVERTICALHEADER TE Connectivity Buchanan 系列 5.08mm节距 8路 (1排) 直 印刷电路板接线端子块, 焊接端接, 15A , 通孔 TERMI-BLOK HEADER,ASSY90 8P.5,
282815-8
te connectivity / amp
Conn Shrouded Header HDR 8 POS 5.08mm Solder RA Thru-Hole Pluggable Terminal Blocks TERMI-BLOK HEADER ASSM90 8P.5 Terminal Block Connectors TERM BLOCK HDR 8POS R/A 5.08MM TERMI-BLOK HEADER,ASSY90 8P.5 TERMI-BLOK HEADER,ASSY90 8P.5 Search Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end
1776167-8
te connectivity / amp
Conn Shrouded Header HDR 16 POS 5.08mm Solder RA Thru-Hole Pluggable Terminal Blocks 8P TERMI-BLOK HDR HIGH TEMP Terminal Block Connectors TERM BLOCK HDR 16POS R/A 5.08MM 8P TERMI-BLOK HDR,HIGH TEMP

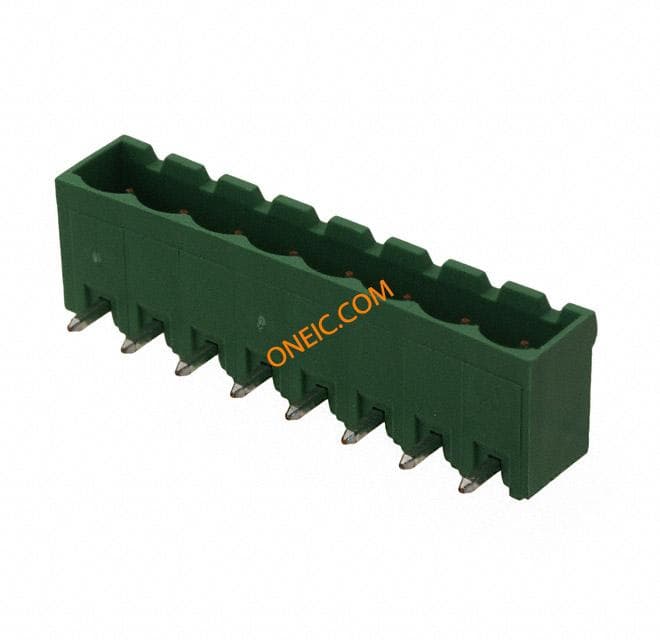

796638-8
