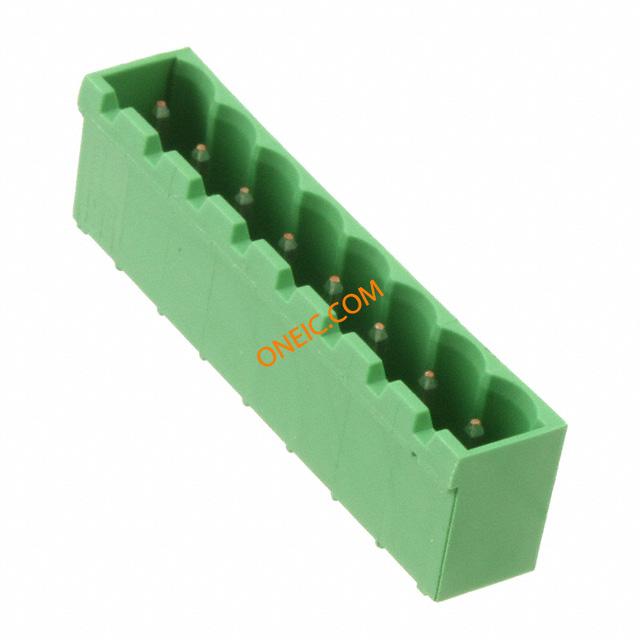

796636-8
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Shrouded Header HDR 8 POS 5.08mm Solder ST Thru-Hole Pluggable Terminal Blocks 5.08MM VERT HDR 8P TERM BLOCK HDR 8POS VERT 5.08MM Conn Shrouded Header HDR 8 POS 5.08mm Solder ST Thru-Hole Product Highlights:ConnectorConnector Type = HeaderShroudedHousing Color = GreenNot Side StackableSearch Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end Conn;TermBlk;PCB;Header;SnglLvl;ClosedEnd;Sldr;8Pole;5.08mmPitch;Buchanan Header Shrouded 8 Position 5.08 mm Pitch Euro Style Terminal Block 8POS 5.08MM CE VRT HDR,TRM BLK |
| 分类 |
商业参数
| 产品 | Pluggable Terminal Blocks | 产品类别 | Pluggable Terminal Blocks |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | RoHS Compliant By Exemption | 认证机构 | UL,ELV,RoHS |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 电流 | 15A | 电压 | 300V |
| 额定电压 | 300 VAC | 极数 | 8Poles |
| 供电电压 | 300V | 额定交流电压 | 300 |
| 跳闸电流 | 15 | 最大额定电流 | 15 A |
| 最小供电电压 | 300VAC | ||
机械参数
| 颜色 | Green | 深度 | 8.35 mm |
| 间距 | 5.08 mm | 高度 | 12 mm |
| 端部样式 | 带有 | 包装方式 | Bulk |
| 壳体颜色 | 绿色 | 引脚样式 | Right Angle |
| 端接方式 | Solder | 引脚长度（针脚） | 3.5 mm [ .138 in ] |
| 第二连接器 | 否 | 外壳颜色 | Green |
| 安装类型 | Vertical | 连接器类型 | 头 |
| 接触镀层 | Tin | 法兰特征 | 是 |
| 安装样式 | Through Hole | 排数 | 1 |
| 插入件材料 | 磷青铜 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Polyamide (PA) | 总长度 | 42.46 mm |
| 包装数量 | 100 | 主要材料 | PCB |
| 插针孔直径 | 5.08mm | 排针方向 | Vertical |
| 触点数 | 8 | 位数 | 8 |
| 接线端子类型 | Header, Male Pins, Shrouded (4 Side) | 螺纹/螺钉/孔尺寸 | 不带 |
| 每层极数 | 8 | 第二连接器安装特性 | Vertical |
产品信息
| 类型 | Shrouded Header | 级别 | SingleLevel |
| 连接器性别 | HDR | 产品特性 | ClosedEnd |
| 制造商全称 | Buchanan | 层数 | 1 |
| 互连系统 | 不带 | 每层位数 | 8 |
| 并排堆叠 | 否 | ||
环境参数
| 工作温度 | -40C to 105C | ||
文档与媒体
相关型号
284041-8
te connectivity / amp
Conn Terminal Block F 8 POS 5.08mm Screw ST Cable Mount 15A/Contact Pluggable Terminal Blocks PLUG 8P VERT 5.08mm Terminal Block Connectors TERM BLOCK PLUG 8POS 5.08MM Conn Terminal Block F 8 POS 5.08mm Screw ST Cable Mount 15A/Contact Product Highlights:ConnectorConnector Type = Plug (left-hand)Housing Color = GreenSide StackableWithout Screw FlangeSearch Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end TERMINAL BLOK VERTICAL PLUG ST
796634-8
te connectivity / amp

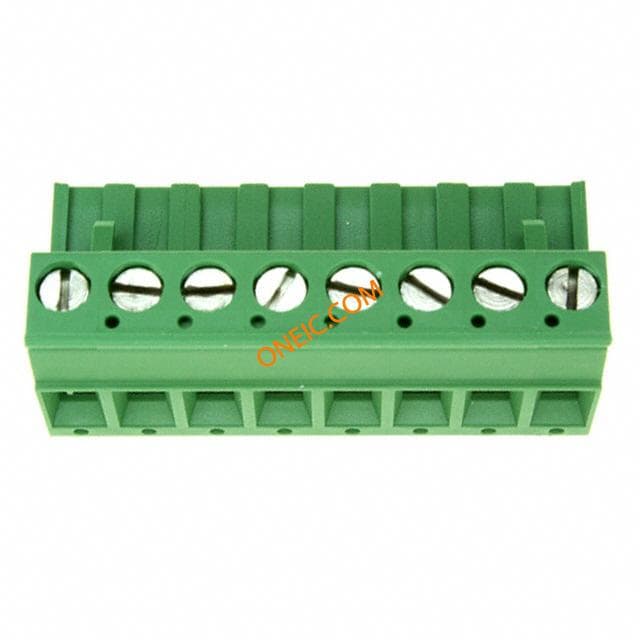

Conn Terminal Block F 8 POS 5.08mm Screw RA Cable Mount 15A/Contact TERM BLOCK PLUG 8POS STR 5.08MM Non-Fused Terminal Block Cable Mount 8 Way, Screw Down, 300V ac Pluggable Terminal Blocks 5.08MM RA PLUG 8P Conn Terminal Block F 8 POS 5.08mm Screw RA Cable Mount 15A/Contact Product Highlights:ConnectorConnector Type = PlugNot ShroudedHousing Color = GreenSide StackableSearch Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end PLUG, TERMINAL BLOCK, 5.08MM, 8WAY Conn;TermBlk;Plug;Screw;8;5.08mm;RightAngle;30-12AWG;Green;15A;300V;M3 Pluggable terminal block; plug; female; 5.08mm; ways:8; 15A; green TE Connectivity 8 路 印刷电路板接线端子块, 电缆安装, 螺钉拧紧端接, 300 V 交流 8 POS 5.08MM R/A PLUG,TRM BLK
