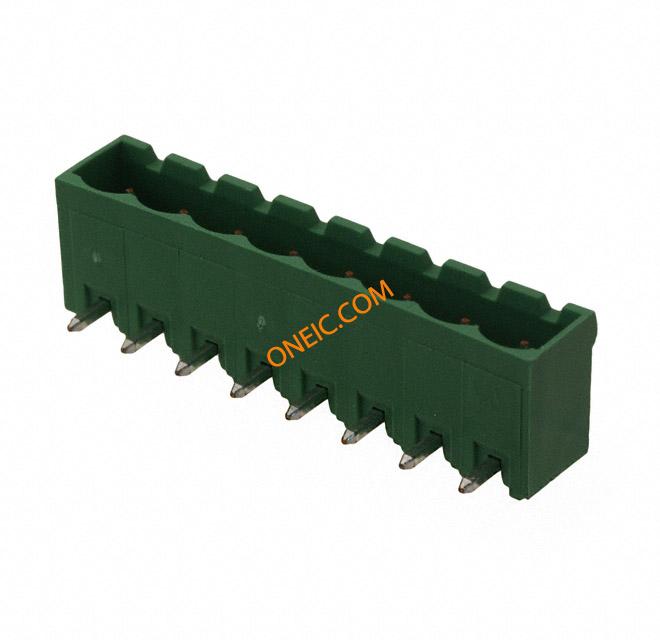

796638-8
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Shrouded Header HDR 8 POS 5.08mm Solder RA Thru-Hole TERM BLOCK HDR 8POS R/A 5.08MM Termi-Block Header 8 way pcb r/a Pluggable Terminal Blocks 5.08MM RA HDR 8P Conn Shrouded Header HDR 8 POS 5.08mm Solder RA Thru-Hole Product Highlights:ConnectorConnector Type = HeaderShroudedHousing Color = GreenNot Side StackableSearch Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end HEADER, 5.08MM, 8WAY Conn;TermBlk;PCB;Header;SnglLvl;90DegAngl;Sldr;8Pole;5.08mmPitch;Buchanan Pluggable terminal block; socket; male; angled 90°; 5.08mm; 15A TE Connectivity Buchanan 系列 5.08mm节距 8路 (1排) 直角 印刷电路板接线端子块, 焊接端接, 15A , 通孔 8POS 5.08MM CE R/A HDR,TRM BLK |
| 分类 |
商业参数
| 产品 | Pluggable Terminal Blocks | 产品类别 | Pluggable Terminal Blocks |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | RoHSCompliant,ELVCompliant,ULListed |
| 海关税号 | 85366930 | 认证机构 | UL,ELV,RoHS |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 电流 | 15A | 电压 | 300V |
| 量程（°/s） | :- | 额定电压 | 300 V ac |
| 极数 | 8Poles | 最大额定电流 | 15A |
| 最小供电电压 | 300VAC | ||
机械参数
| 颜色 | Green | 深度 | 12 mm |
| 间距 | 5.08 mm | 高度 | 8.35 mm |
| 长度 | 42.46mm | 重量 | 0.025 |
| 包装方式 | Bulk | 遮蔽类型 | Yes |
| 引脚样式 | Right Angle | 方向 | angled 90° |
| 端接方式 | Solder | 柱间距 | 5.08mm |
| 基体材料 | polyamide | 外壳颜色 | Green |
| 安装类型 | Through Hole | 连接器类型 | Header |
| 接触镀层 | Tin | 安装样式 | Through Hole |
| 排数 | 1 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Polyamide (PA) | 总长度 | 42.46 mm |
| 包装数量 | 400 | 主要材料 | PCB |
| 尺寸/外形 | see | 连接器 - 电缆 | socket |
| 插针孔直径 | 5.08mm | 连接器颜色 | green |
| 排针方向 | 90°, Right Angle | 触点数 | 8 |
| 接触件端接 | :PCB | 位数 | 8 |
| 接线端子类型 | Header, Male Pins, Shrouded (4 Side) | 中心触点表面处理 | 0.2 |
| 触点镀层 | Tin | ||
产品信息
| SPG | 400 | 类型 | Shrouded Header |
| 级别 | SingleLevel | 连接器性别 | HDR |
| 系列 | Eurostyle | 产品特性 | 90Deg |
| 可堆叠 | No | 制造商全称 | Buchanan |
| 单元数量 | 1 | 层数 | 1 |
| 每层位数 | 8 | ||
环境参数
| 工作温度 | -40C to 105C | ||
文档与媒体
相关型号
