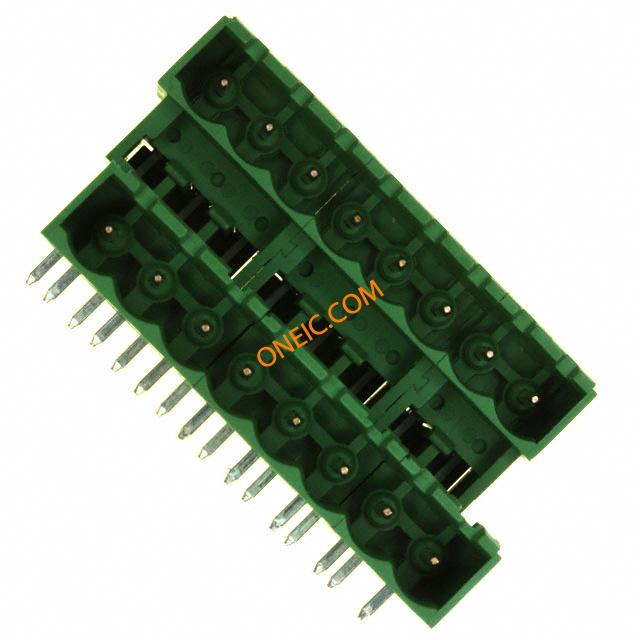

284061-8
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Shrouded Header HDR 8 POS 5.08mm Solder RA Thru-Hole Pluggable Terminal Blocks HDR 8P R/A 5.08MM Terminal Block Connectors TERM BLOCK HDR 16POS R/A 5.08MM Terminal Block Connectors Product Highlights:ConnectorType of Connector = HeaderShroudedHousing Color = GreenNot Side StackableSearch Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end TERMI-BLOK HDR 90, 5,08MM P.MU |
| 分类 |
商业参数
| 产品 | Pluggable Terminal Blocks | 标准包装规格 | 50 |
| 产品类别 | Pluggable Terminal Blocks | 标准包装数量 | Bulk |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | RoHS Compliant | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 电流 | 12A | 电压 | 300V |
| 额定电压 | 300 VAC | 额定交流电压 | 300 |
| 跳闸电流 | 15 | 最大额定电流 | 15 A |
机械参数
| 颜色 | Green | 间距 | 5.08 mm |
| 端部样式 | 带有 | 包装方式 | Bulk |
| 壳体颜色 | 绿色 | 引脚样式 | Straight |
| 导线线规 | 30 | 端接方式 | Solder |
| 引脚长度（针脚） | 3.5 mm [ .138 in ] | 第二连接器 | 是 |
| 安装类型 | Right | 连接器类型 | 头 |
| 接触镀层 | Tin | 法兰特征 | 是 |
| 安装样式 | Through Hole | 排数 | 2 |
| 插入件材料 | 铜合金 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Polyamide (PA) | 包装数量 | 50 |
| 端接样式 | Screw | 排针方向 | 90°, Right Angle |
| 触点数 | 8 | 位数 | 16 |
| 接线端子类型 | Header, Male Pins, Shrouded (4 Side) | 螺纹/螺钉/孔尺寸 | 不带 |
| 线规或范围 - AWG | 30-12 | 线规或范围 - mm² | 12 |
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 产品特性 | Side Stacking (Interlocking) | 层数 | 2 |
| 互连系统 | 不带 | 每层位数 | 8 |
| 并排堆叠 | 否 | ||
