点击放大查看

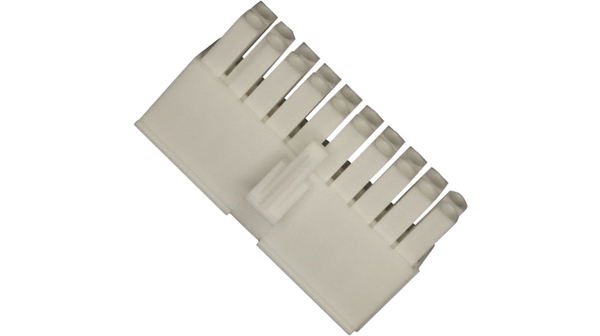

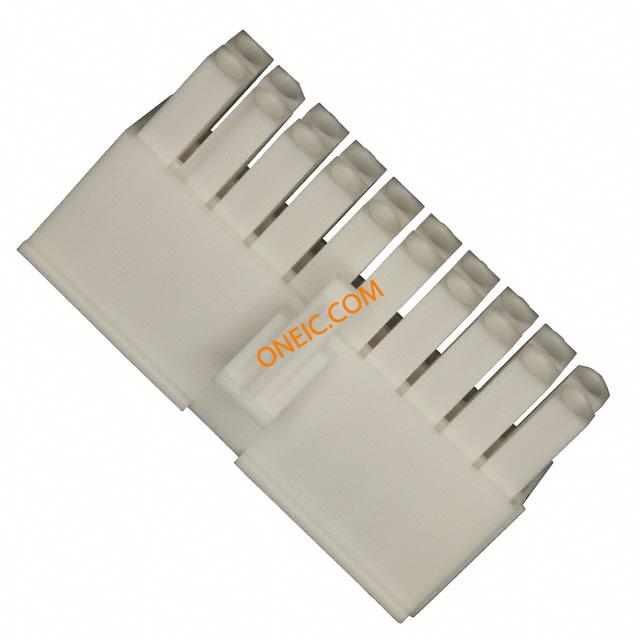

770585-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing M 20 POS 4.14mm Crimp ST Cable Mount Individual .163" Centerline, 600 V, 9.5 A max. CONN PLUG 20POS MINI UNIV-MATE Male Compact Power Connector Cable Mount,9.5A 600V ac/dc Pin & Socket Connectors FREE HNG PLUG 20P Conn Housing M 20 POS 4.14mm Crimp ST Cable Mount Individual Product Highlights:HousingMini-Universal MATE-N-LOKNumber of Circuits = 204.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP PLUG HOUSING, 20WAY CONNECTOR,SOFTSHELL,MINI-UNIVERSALMATE-N-LOK,20POSITION,NYLON,WHITE Plug; wire-board; male/female; w/o terminals; 4.14mm; PIN:20; 600V Pin housing Pitch4.14 mm Poles 2 x 10 Double row / accepts male or female contacts / straight MATE-N-LOK, 770585-1, TE Connectivity TE Connectivity 线对线连接器 公, 电缆安装安装, 9.5A 600 V 交流/直流, -55 → +105 °C 20P MINI UMNL PLUG HSG |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | 600 V ac/dc | 供电电压 | 600 |
| 最大额定电流 | 9.5A | 最小供电电压 | 600VDC/600VAC |
| 连接器类型 - 电压输入 | Mini-Universal MATE-N-LOK | ||
机械参数
| 颜色 | White | 深度 | 15.19 mm |
| 间距 | 4.14 mm | 宽度 | :43.10mm |
| 高度 | 23.83 mm | 长度 | :23.83mm |
| 重量 | 0.001 | 材料（通用） | :Nylon |
| 锁定类型 | Positive Lock | 包装方式 | Bulk |
| 导线线规 | 16-30 AWG | 排间距 | 0.163" (4.14mm) |
| 触头类型 | Male or Female | 柱间距 | 4.14mm |
| 外壳颜色 | White | 安装类型 | Straight |
| 连接器类型 | Plug | 紧固类型 | Latch Lock |
| 安装样式 | Free Hanging | 排数 | 2 |
| 封装形式 | :Dual Row | 锁定特性 | lock |
| 壳体材料 | Nylon | 总长度 | 43.1 mm |
| 包装数量 | One Piece Housing | 连接器 - 电缆 | plug |
| 端接样式 | Solder | 第一触头极性 | Pin (Male) |
| 连接器颜色 | :White | 触点数 | 20 |
| 接触件端接 | Crimp | 位数 | 20 |
| 中心触点材料 | 4.14 x 4.14 [.163 x .163] | 典型触点布局 | Double-Row |
| 接触镀层厚度 | 0.99 [0.039] | 线规或范围 - AWG | 30-16 |
| 第一连接器安装特征 | 2x10 | ||
产品信息
| SPG | 50 | 备注 | Contacts Not Provided |
| 类型 | Housing | 连接器性别 | M |
| 系列 | Mate-N-Lok | CAD图纸 | 3D CAD Model |
| 产品子类型 | Housing | 适配器系列 | Mini Universal MATE-N-LOK |
| 单元数量 | 1 | 模块/板类型 | No |
| 电路数 | 20 | 适用产品/相关产品 | :Mini-Universal MATE-N-LOK Connectors |
环境参数
| 工作温度 | +105°C | ||
