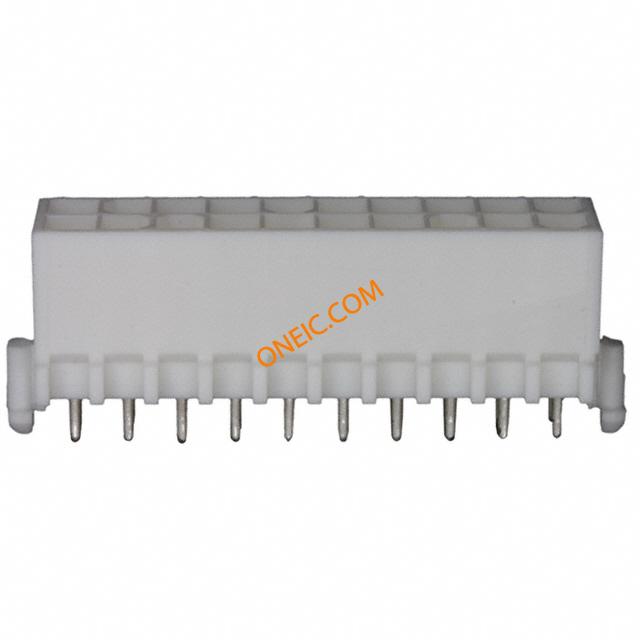

点击放大查看
794070-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Wire to Board PIN 20 POS 4.14mm Solder ST Thru-Hole .163" Centerline, 600 V, 9.5 A max. CONN HDR 20POS STR DUAL .163 AU Power to the Board 20P MINI UMNL HDR W/ 200 Conn Wire to Board PIN 20 POS 4.14mm Solder ST Thru-Hole Product Highlights:Header - PinThrough Hole Contact Termination TypeMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 24.14 mm CenterlineTerminate To Printed Circuit BoardSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP |
| 分类 |
商业参数
| 产品类别 | Power to the Board | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Contains lead / RoHS non-compliant | ||
电气参数
| 额定电压 | 600 V | 最大额定电流 | 9.5 A |
机械参数
| 颜色 | White | 间距 | 0.163" (4.14mm) |
| 包装方式 | Bulk | 排间距 | 0.163" (4.14mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 安装类型 | Through Hole | 连接器类型 | Header, Shrouded |
| 接触镀层 | Gold | 紧固类型 | Locking Ramp |
| 安装样式 | Through Hole | 排数 | 2 |
| 触头材料 | Brass | 壳体材料 | Polyamide (PA) |
| 第一触头极性 | Pin (Male) | 触点数 | 20 |
| 位数 | 20 | 接触镀层厚度 | 30µin (0.76µm) |
产品信息
| 产品特性 | Board Lock | 产品子类型 | Headers |
| 加载位置数 | All | ||
