点击放大查看

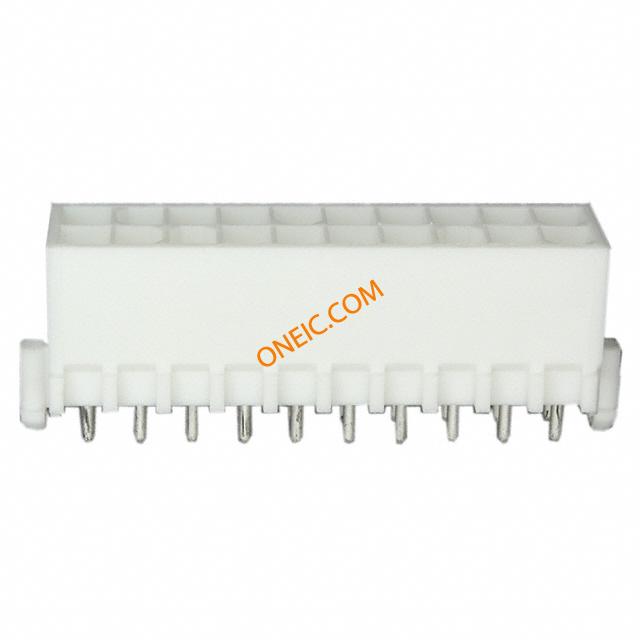

1-794070-0
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Wire to Board PIN 20 POS 4.14mm Solder ST Thru-Hole Headers & Wire Housings HEADER 20 POS TIN DUAL ROW .163" Centerline, 600 V, 9.5 A max. CONN HDR 20POS STR DUAL .163 TIN TE Connectivity MATE-N-LOK Series 4.14mm Pitch 20 Way 2 Row Straight PCB Header, Solder Termination, 9.5A Conn Wire to Board PIN 20 POS 4.14mm Solder ST Thru-Hole Product Highlights:Header - PinThrough Hole Contact Termination TypeMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 24.14 mm CenterlineTerminate To Printed Circuit BoardSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP HOUSING VERTICAL, 20WAY 20P MINI UMNL HDR W/DH SN LF |
| 分类 |
商业参数
| 商标名 | MATE-N-LOK | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 认证机构 | :CSA, UL, VDE | 材料阻燃等级 | :UL94V-0 |
电气参数
| 量程（°/s） | :TE - Mini-Universal MATE-N-LOK Series | 测试电压 | :1500V |
| 额定电压 | 600 V | 开关功能 | Latched |
| 最大额定电流 | 9.5 A | 最大触点电流 | :10.5A |
| 绝缘电阻 | :100Mohm | 最小供电电压 | 600VAC |
机械参数
| 颜色 | White | 间距 | 4.14 mm |
| 高度 | 13.49 mm | 重量 | 0.0529 |
| 包装方式 | Bulk | 排间距 | 4.14 mm |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 外壳颜色 | White | 安装类型 | Vertical |
| 连接器类型 | Header, Shrouded | 接触镀层 | Tin Over Nickel |
| 紧固类型 | Locking Ramp | 安装样式 | Through Hole |
| 排数 | 2 | 触头材料 | Brass |
| 壳体材料 | Nylon | 端接样式 | Solder Pin |
| 第一触头极性 | Pin (Male) | 连接器颜色 | :White |
| 触点数 | 20 | 接触件端接 | :Through Hole Vertical |
| 位数 | 20 | 接触镀层厚度 | 150µin (3.81µm) |
| 第一连接器安装类型 | :PCB | ||
产品信息
| 类型 | Wire to Board | 连接器性别 | PIN |
| 系列 | Mini Universal Mate-N-Lok | 产品特性 | Board Lock |
| CAD图纸 | 3D CAD Model | 产品子类型 | Headers - Shrouded |
| 加载位置数 | All | ||
环境参数
| 工作温度 | -20C to 105C | ||
