644753-6

点击放大查看

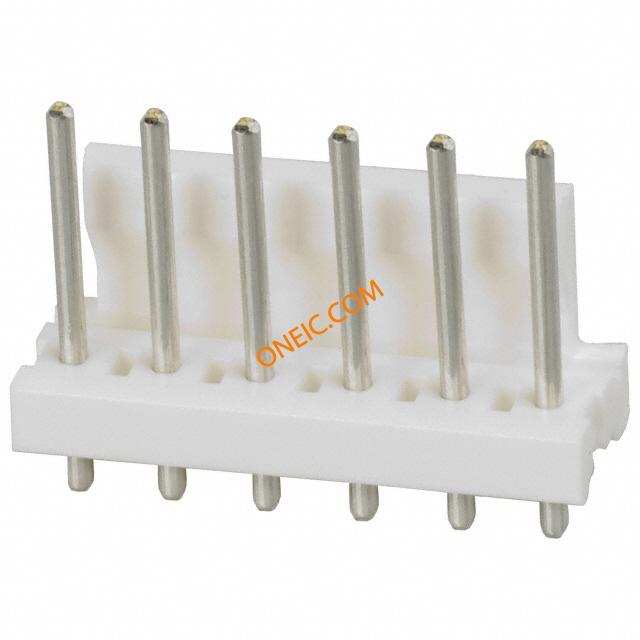

644753-6

制造商
TE Connectivity Ltd.
描述Conn Wire to Board HDR 6 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 6POS .156 TIN Headers & Wire Housings HDR 06P VRT F-LOCK RD Conn Wire to Board HDR 6 POS 3.96mm Solder ST Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 6Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 06P MTA156 HDR ASSY RN STR F/L
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

产品类别Headers & Wire Housings标准包装数量Bulk
工厂包装数量1

合规参数

RoHSLead free / RoHS Compliant欧盟RoHSCompliant
UL等级获得认可零件状态E28476
CSA档案号LR7189标准编号CSA, UL
CSA认证CertifiedUL阻燃等级UL 94V-0
材料阻燃等级UL 94 V-0

电气参数

额定电压600 V开关功能Friction Lock
供电电压600接触电阻3 mohm
最大额定电流7 A最小输入电压600VAC
最小供电电压600VAC

机械参数

颜色Natural深度7.62 mm
间距3.96 mm高度13.33 mm
长度23.77 mm [ .936 in ]密封型Not Sealed
包装方式Bulk端接方式Solder
触头类型Male Pin外壳颜色Natural
安装类型Through Hole连接器类型Header, Unshrouded
接触镀层Tin触点时序Without
紧固类型Friction Lock安装样式Through Hole
引脚数6排数1
封装形式Plug壳体镀层Nickel
插入件材料铜合金触头材料Copper Alloy
壳体材料Polyester总长度23.77 mm
包装数量1面板安装类型通孔 - 焊接
端接样式Through Hole第一触头极性Pin (Male)
触点数6位数6
兼容外壳尺寸（如TM-700等）MTA .156 连接器组件或 SL .156 连接器组件安装孔直径不带
接触件表面处理 - 配合锡典型触点布局直插式
接触长度 - 配合0.400" (10.16mm)端子柱长度4.45 mm
静电放电屏蔽不带

产品信息

类型Wire to Board连接器性别HDR
系列MTA-156产品子类型Headers
应用细节Wire-to-Board加载位置数All

环境参数

测试温度标准件 - 非灼热丝工作温度-55C to 105C

文档与媒体

在线文档
644753-6

相关型号

3-640426-6

3-640426-6

te connectivity / amp
