3-640477-6

点击放大查看

3-640477-6

制造商
TE Connectivity Ltd.
描述Conn IDC Connector F 6 POS 3.96mm IDT RA Cable Mount T/R MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 6POS 18AWG .156 ORANGE Headers & Wire Housings 06 CIR MTA156 ASSY MTA, CST-100 II, MT-6 and SL Connectors and Headers Product Highlights:6 PositionsPreloadedHousing Gender = PlugContact Gender = ReceptacleConnector Style = Closed EndSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 06 CIR MTA156 ASSY ON TAPE LF
分类
连接器解决方案板对板连接器板对板连接器

商业参数

标准包装规格800产品类别Headers & Wire Housings
标准包装数量Tape & Reel工厂包装数量800

合规参数

RoHSLead free / RoHS CompliantUL等级获得认可
UL档案号E28476CSA档案号LR7189
标准编号CSA, ULCSA分类已认证
材料阻燃等级UL 94V-2

电气参数

额定电压600 VAC供电电压600
连接器阻抗IDC最大额定电流7 A

机械参数

颜色Orange间距3.96 mm
高度9.02 mm [ .355 in ]长度23.77 mm [ .936 in ]
包装方式Tape & Reel (TR)导线类型Discrete or Ribbon Cable
壳体颜色白色电缆类型分离式导线, 绞线
导线线规18 AWG端接方式IDT
触头类型Female Socket安装类型Free Hanging (In-Line)
连接器类型Receptacle接触镀层Tin Over Nickel
触点时序Without安装样式Wire
排数1壳体镀层Nickel
外壳材料（壳体）标准插入件材料铜合金
触头材料Copper Alloy壳体材料Nylon
包装数量800面板安装类型不带
电缆端接方式IDC端接样式IDC
第一触头极性Socket (Female)触点数6
端接表面处理带有绝缘直径2.41 mm [ .095 in ]
位数6兼容外壳尺寸（如TM-700等）MTA .156 头
安装孔直径不带接触件表面处理 - 配合锡
典型触点布局同轴表面贴装焊盘尺寸Without
接触镀层厚度80µin (2.03µm)静电放电屏蔽带有
护套（绝缘）厚度.762 µm, 30 µin

产品信息

类型IDC Connector连接器性别F
系列MTA-156产品特性Closed End
可密封否产品子类型Connector Assemblies

环境参数

工作温度-55 – 105 °C [ -67 – 221 °F ]

文档与媒体

3-640477-6?RQPN=3-640477-6

相关型号

640445-6

640445-6

te connectivity / amp

Conn Wire to Board HDR 6 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 6POS .156 TIN TE Connectivity MTA-156 Series 3.96mm Pitch 6 Way 1 Row Straight PCB Header, Solder Termination, 7A Headers & Wire Housings FRCTN LK HDR STR 6P Square post tin Conn Wire to Board HDR 6 POS 3.96mm Solder ST Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 6Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP HEADER, VERTICAL, 0.156", 6WAY Connector,MTA-156;Male;6;CopperAlloy;7;600;0.156in.;Polyester;White Connector: wire-board; Series: MTA-156; 3.96mm; male; socket; PIN:6 Pin header straight 6P, 640445-6, TE Connectivity TE Connectivity MTA-156 系列 3.96mm节距 6路 (1排) 直 PCB 针座, 焊接端接, 7A , 通孔 06P MTA156 HDR ASSY FL/STR SN

¥1.0584
详情
3-641208-6

3-641208-6

te connectivity / amp

Conn Wire to Board HDR 6 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 6POS .156 30 GOLD Headers & Wire Housings FRCTN LK HDR STR 6P Square post gold Conn Wire to Board HDR 6 POS 3.96mm Solder ST Thru-Hole Product Highlights:Connector6 PositionsConnector Type = Header - PinMTA-156 Product LineWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR HEADER 6POS, 3.96MM MTA-156HEADERGOLD,06PMTA156HDRASSYFLSTLF 06P MTA156 HDR ASSY FL ST LF

¥5.3280
详情
641210-6

641210-6

te connectivity / amp

Conn Wire to Board HDR 6 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RT/A .156 6POS 30AU Headers & Wire Housings FRCTN LK HDR RA 6P Square post gold Conn Wire to Board HDR 6 POS 3.96mm Solder RA Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 6Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 06P MTA156 HRD FL RA FB 30AU

¥7.0560
详情
644751-6

644751-6

te connectivity / amp

Conn Unshrouded Header HDR 6 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 6POS .156 TIN Headers & Wire Housings 6P HDR ASSY R/A 06P MTA156 HDR ASSY R/A

¥1.4400
详情
640383-6

640383-6

te connectivity / amp

Conn Unshrouded Header HDR 6 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 6POS .156 TIN Headers & Wire Housings FLAT HEADER STRT 6P Square post tin Conn Unshrouded Header HDR 6 POS 3.96mm Solder ST Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 6Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP Connector,MTA-156;Male;6;CopperAlloy;7;600;0.156in.;Polyester;White 06P MTA156 HDR ASSY STR SQ SN

¥1.2312
详情
644753-6

644753-6

te connectivity / amp

Conn Wire to Board HDR 6 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 6POS .156 TIN Headers & Wire Housings HDR 06P VRT F-LOCK RD Conn Wire to Board HDR 6 POS 3.96mm Solder ST Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 6Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 06P MTA156 HDR ASSY RN STR F/L

¥1.4465
详情
641208-6

641208-6

te connectivity / amp

Conn Wire to Board HDR 6 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT .156 6POS 30AU Headers & Wire Housings FRCTN LK HDR STR 6P Square post gold Conn Wire to Board HDR 6 POS 3.96mm Solder ST Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 6Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 06P MTA156 HDR ASSY FL ST 30AU

¥9.7920
详情
3-641120-6

3-641120-6

te connectivity / amp

Conn Wire to Board HDR 6 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 6POS VERT .156 GOLD Headers & Wire Housings 06P MTA156 HDR ASSY FL/ST LF Conn Wire to Board HDR 6 POS 3.96mm Solder ST Thru-Hole Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 06P MTA156 HDR ASSY FL/ST LF

¥4.6426
详情
暂无图片

641121-6

te connectivity / amp

Conn Wire to Board HDR 6 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 6POS R/A .156 15GOLD Headers & Wire Housings 06P MTA156 HDR ASSY FL/RA 15AU Conn Wire to Board HDR 6 POS 3.96mm Solder RA Thru-Hole Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP

¥7.8480
详情
暂无图片

644611-6

te connectivity / amp

Conn Wire to Board HDR 6 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 6POS .156 TIN Headers & Wire Housings 06P MTA156 HDR POL STR WO PEGS 06P MTA156 HDR POL STR WO PEGS 06P MTA156 HDR POL STR WO PEGS Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP

¥7.4880
详情
640385-6

640385-6

te connectivity / amp

Conn Unshrouded Header HDR 6 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 6POS .156 TIN Headers & Wire Housings FLAT HEADER R.A. 6P Square post tin Conn Unshrouded Header HDR 6 POS 3.96mm Solder RA Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 6Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 06P MTA156 HDR ASSY SQ R/A

¥1.5120
详情
644759-6

644759-6

te connectivity / amp

Conn Wire to Board HDR 6 POS 3.96mm Solder ST Thru-Hole Headers & Wire Housings 6P HEADER ASSY MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 6POS VERT .156 GOLD

详情
暂无图片

641207-6

te connectivity / amp

Conn Wire to Board HDR 6 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 6POS R/A .156 30GOLD Headers & Wire Housings 06P MTA156 HDR ASSY FL RA 30AU 06P MTA156 HDR ASSY FL RA 30AU 06P MTA156 HDR ASSY FL RA 30AU Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP

¥6.1992
详情
640389-6

640389-6

te connectivity / amp

Conn Wire to Board HDR 6 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 6POS .156 TIN Headers & Wire Housings FRCTN LK HDR RA 6P Square post tin Conn Wire to Board HDR 6 POS 3.96mm Solder RA Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 6Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP HEADER, RIGHT ANGLE, 0.156", 6WAY Connector,MTA-156;Male;6;CopperAlloy;7;600;0.156in.;Polyester;White Pin strip 90° 6P, 640389-6, TE Connectivity TE Connectivity MTA-156 系列 6路 3.96mm节距 (1排) 直角 PCB 针座 , 焊接端接, 7A, 通孔 06P MTA156 HDR ASSY SQ R/A F/L

¥1.6466
详情
暂无图片

644767-6

te connectivity / amp

Conn Wire to Board HDR 6 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 6POS VERT .156 GOLD 06P MTA156 HDR ASSY FL ST 15AU 06P MTA156 HDR ASSY FL ST 15AU Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP

¥5.5440
详情
640384-6

640384-6

te connectivity / amp

Conn Unshrouded Header HDR 6 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 6POS .156 TIN Headers & Wire Housings FLAT HEADER STRT 6P Round post tin Conn Unshrouded Header HDR 6 POS 3.96mm Solder ST Thru-Hole Product Highlights:6 PositionsWith ContactsHousing Gender = Header - PinContact Gender = PinMTA-156 Product LineSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 06P MTA156 HDR ASSY STR RND SN

¥1.1592
详情
644752-6

644752-6

te connectivity / amp

Conn Wire to Board HDR 6 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 6POS .156 TIN Headers & Wire Housings 6P MTA156 HEADER Conn Wire to Board HDR 6 POS 3.96mm Solder ST Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 6Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR HEADER 6POS, 3.96MM MTA-156HEADER-TIN,06PMTA156HDRASSYSQSTRF/L TE Connectivity MTA-156 系列 3.96mm节距 6路 (1排) 直 PCB 针座, 焊接端接, 7A , 通孔 06P MTA156 HDR ASSY SQ STR F/L

¥1.1592
详情
644756-6

644756-6

TE Connectivity / AMP

Headers & Wire Housings 06P MTA156 HDR ASSY STR SQ AU MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 6POS VERT .156 GOLD

详情
暂无图片

647123-6

te connectivity / amp

Conn Shrouded Header HDR 6 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 6POS VERT .156 TIN Headers & Wire Housings 06P MTA156 SHRD HDR ASSY SQ SN 06P MTA156 SHRD HDR ASSY SQ SN 06P MTA156 SHRD HDR ASSY SQ SN Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP

¥7.3440
详情

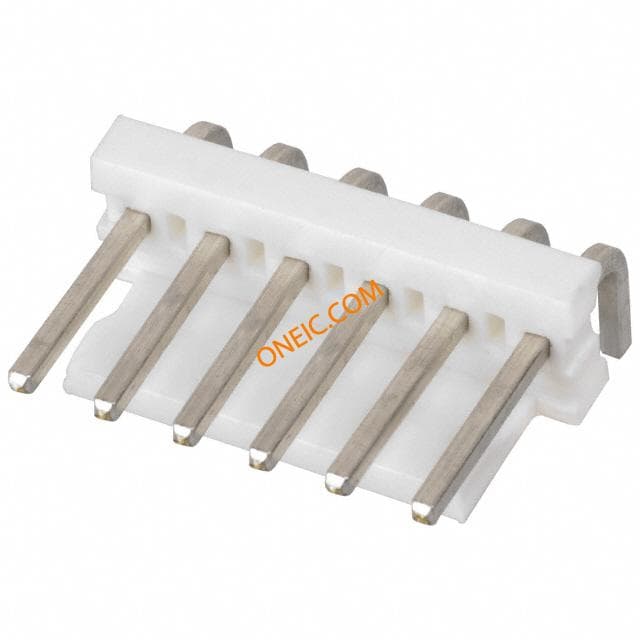

640387-6
