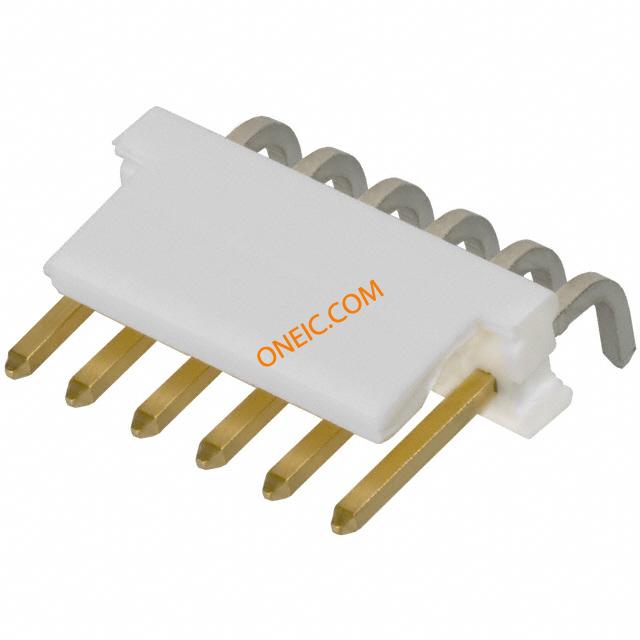

641210-6

点击放大查看

641210-6

制造商
TE Connectivity Ltd.
描述Conn Wire to Board HDR 6 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RT/A .156 6POS 30AU Headers & Wire Housings FRCTN LK HDR RA 6P Square post gold Conn Wire to Board HDR 6 POS 3.96mm Solder RA Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 6Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 06P MTA156 HRD FL RA FB 30AU
分类
连接器解决方案板对板连接器板对板连接器

商业参数

其他名称A26189产品类别Headers & Wire Housings
标准包装数量Bulk工厂包装数量1

合规参数

RoHSContains lead / RoHS non-compliantUL等级获得认可
UL档案号E28476CSA档案号LR7189
标准编号CSA, ULCSA认证Certified
材料阻燃等级UL 94 V-0

电气参数

额定电压600 V开关功能Friction Lock
供电电压600连接器阻抗焊接
最大额定电流7 A

机械参数

颜色Natural间距3.96 mm
高度10.8 mm [ .425 in ]长度23.77 mm [ .936 in ]
包装方式Bulk壳体颜色自然
端接方式Solder触头类型Male Pin
触点形状Square安装类型Through Hole, Right Angle
连接器类型Header, Unshrouded接触镀层Gold Over Nickel
触点时序Without紧固类型Friction Lock
安装样式不带排数1
壳体镀层Tin-Lead外壳材料（壳体）摩擦锁
插入件材料铜合金触头材料Copper Alloy
壳体材料Polyester包装数量1000
面板安装类型通孔 - 焊接端接样式Through Hole
第一触头极性Pin (Male)触点数6
端接表面处理不带位数6
兼容外壳尺寸（如TM-700等）MTA .156 连接器组件或 SL .156 连接器组件触头长度-柱3.18 mm [ .125 in ]
安装孔直径不带接触件表面处理 - 配合锡铅
典型触点布局同轴接触长度 - 配合0.400" (10.16mm)
表面贴装焊盘尺寸Without端子柱长度3.18 mm
接触镀层厚度30µin (0.76µm)静电放电屏蔽不带
直角致动器长度Front护套（绝缘）厚度1.27 µm, 50 µin

产品信息

类型Wire to Board连接器性别HDR
系列MTA-156可密封否
产品子类型Headers应用细节Wire-to-Board
加载位置数All

环境参数

工作温度-55 – 105 °C [ -67 – 221 °F ]封装热阻1.6 mm [ .063 in ]
