点击放大查看

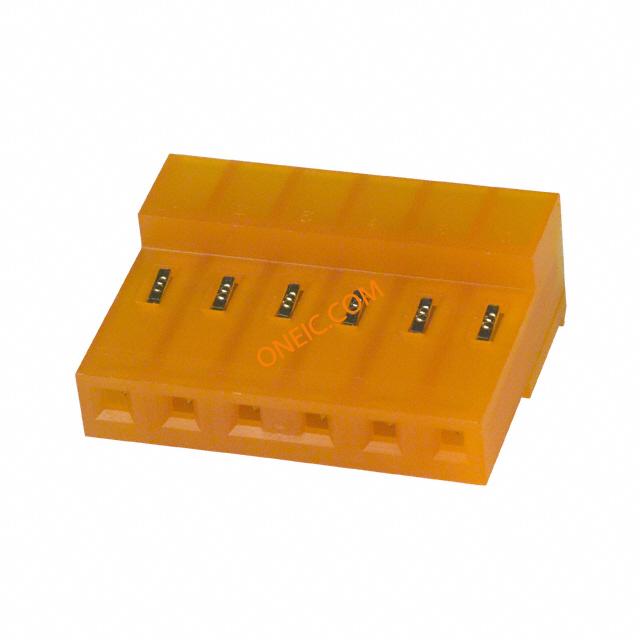

3-640431-6
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn IDC Connector F 6 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 6POS 18AWG MTA156 MTA, CST-100 II, MT-6 and SL Connectors and Headers Product Highlights:MTA-156 Connectors6 PositionsMating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR RECEPTACLE, 6POS, 3.96MM 06P MTA156 CONN ASSY 18AWG ORA |
| 分类 |
商业参数
| 标准包装规格 | 250 | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
电气参数
| 接触电阻 | 3 mohm | 最大额定电流 | 7/Contact A |
| 最小供电电压 | 600VAC | ||
机械参数
| 颜色 | Orange | 深度 | 9.02 mm |
| 间距 | 3.96 mm | 高度 | 18.42 mm |
| 重量 | 0.00001 | 包装方式 | Bulk |
| 导线类型 | Discrete or Ribbon Cable | 导线线规 | 18 AWG |
| 端接方式 | IDT | 触头类型 | Female Socket |
| 外壳颜色 | Orange | 安装类型 | Free Hanging (In-Line) |
| 连接器类型 | Receptacle | 接触镀层 | Tin Over Nickel |
| 安装样式 | Cable | 排数 | 1 |
| 触头材料 | Copper Alloy | 壳体材料 | Nylon |
| 总长度 | 23.77 mm | 电缆端接方式 | IDC |
| 触点数 | 6 | 接触件端接 | :IDC / IDT |
| 位数 | 6 | 接触镀层厚度 | 80µin (2.03µm) |
产品信息
| 类型 | IDC Connector | 连接器性别 | F |
| 系列 | :MTA-156 | 产品特性 | Closed End |
环境参数
| 工作温度 | -55C to 105C | ||
