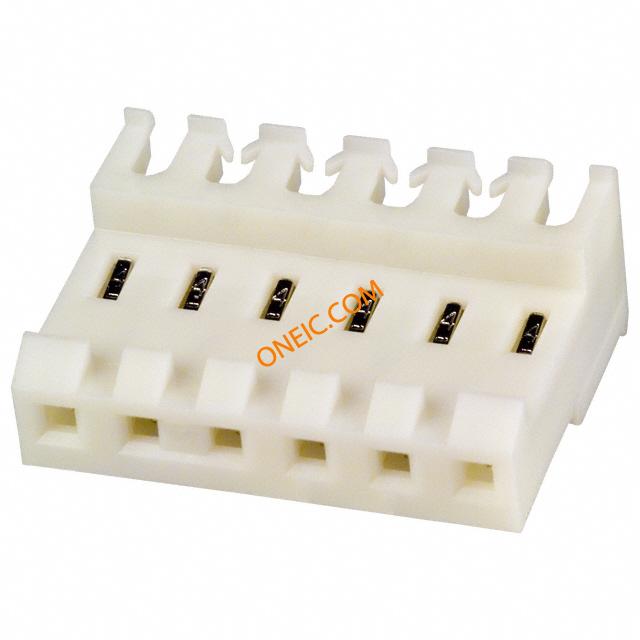

640602-6

点击放大查看

640602-6

制造商
TE Connectivity Ltd.
描述Conn IDC Connector F 6 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 6POS 24AWG MTA156 Headers & Wire Housings FEED THRU WO TAB 6P L.R. natural 24 AWG Conn IDC Connector F 6 POS 3.96mm IDT RA Cable Mount Product Highlights:MTA-156 ConnectorsNumber of Positions = 6Mating Type = ReceptacleConnector Type = Feed ThruWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 06P MTA156 CONN ASSY 24AWG WHT
分类
连接器解决方案板对板连接器板对板连接器

商业参数

其他名称A19724产品类别Headers & Wire Housings
标准包装数量Bulk工厂包装数量1

合规参数

RoHSContains lead / RoHS non-compliantUL等级获得认可
UL档案号E28476CSA档案号LR7189
标准编号CSA, ULCSA认证Certified
材料阻燃等级UL 94V-2

电气参数

额定电压600 VAC开关功能Locking Ramp
供电电压600连接器阻抗IDC
最大额定电流7 A

机械参数

颜色White间距3.96 mm
高度9.78 mm [ .385 in ]长度19.81 mm [ .78 in ]
包装方式Bulk导线类型Discrete or Ribbon Cable
壳体颜色白色电缆类型分离式导线, 绞线
导线线规24 AWG端接方式IDT
触头类型Female Socket安装类型Free Hanging (In-Line)
连接器类型Receptacle接触镀层Tin-Lead Over Nickel
触点时序Without紧固类型Locking Ramp
安装样式Wire排数1
外壳材料（壳体）标准插入件材料铜合金
触头材料Copper Alloy壳体材料Nylon
包装数量250面板安装类型不带
电缆端接方式IDC端接样式IDC
第一触头极性Socket (Female)触点数6
端接表面处理带有接触件端接Locking Lance
绝缘直径2.41 mm [ .095 in ]位数6
兼容外壳尺寸（如TM-700等）MTA .156 头安装孔直径不带
接触件表面处理 - 配合锡铅典型触点布局同轴
表面贴装焊盘尺寸Without接触镀层厚度80µin (2.03µm)
静电放电屏蔽带有

产品信息

类型IDC Connector连接器性别F
系列MTA-156产品特性Feed Through
可密封否产品子类型Connector Assemblies

环境参数

工作温度-55 – 105 °C [ -67 – 221 °F ]

文档与媒体

在线文档
640602-6?RQPN=640602-6
