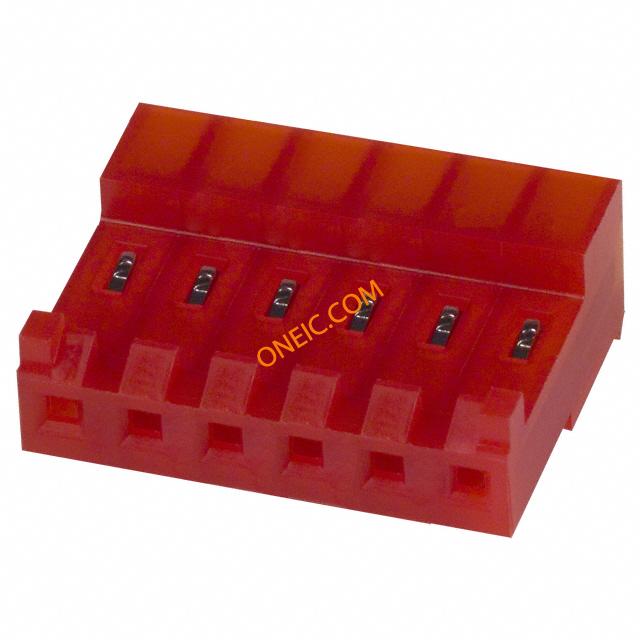

3-643819-6

点击放大查看

3-643819-6

制造商
TE Connectivity Ltd.
描述Conn IDC Connector F 6 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 6POS 22AWG MTA156 Conn IDC Connector F 6 POS 3.96mm IDT RA Cable Mount Product Highlights:MTA-156 ConnectorsNumber of Positions = 6Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP MTA-156CONNECTORTIN,06PMTA156CONNASSY22AWGRED TE Connectivity MTA-156 系列 6路 3.96mm节距 母 IDC 连接器 , 电缆安装 06P MTA156 CONN ASSY 22AWG RED
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

标准包装数量Bulk

合规参数

RoHSLead free / RoHS CompliantUL等级获得认可
零件状态E28476CSA档案号LR7189
标准编号CSA, ULCSA认证Certified
UL阻燃等级UL 94V-2

电气参数

额定电压600 V 交流供电电压600
接触电阻3 mohm连接器阻抗刺破式压接 (IDC)
最大额定电流7/Contact A最小供电电压600VAC

机械参数

颜色Red深度9.02 mm
间距3.96 mm高度18.42 mm
长度23.77密封型Not Sealed
包装方式Bulk导线类型Discrete or Ribbon Cable
壳体颜色红色电缆类型分离式导线
导线线规22 AWG方向直
端接方式IDT触头类型Female Socket
外壳颜色Red安装类型Free Hanging (In-Line)
连接器类型Receptacle接触镀层Tin Over Nickel
触点时序Without紧固类型Locking Ramp
安装样式Cable引脚数6
排数1封装形式Receptacle
壳体镀层Nickel外壳材料（壳体）标准外形
高度（英寸）9.02插入件材料铜合金
触头材料Copper Alloy壳体材料Nylon
总长度23.77 mm包装数量250
面板安装类型不带主要材料InterconnectSystem
端接排数IDC电缆端接方式IDC
端接样式插座触点数6
接触件端接Locking Lance绝缘直径2.41 mm [ .095 in ]
位数6兼容外壳尺寸（如TM-700等）MTA .156 公端
安装孔直径带有接触件表面处理 - 配合锡
典型触点布局直插式接触镀层厚度80µin (2.03µm)
静电放电屏蔽带有护套（绝缘）厚度30 µm [ .762 µin ]

产品信息

类型IDC Connector连接器性别F
系列MTA-156产品特性Closed End, Polarizing Key
制造商全称MTA-156产品子类型连接器组件
安装类型Closed End输出配置90°

环境参数

测试温度标准件 - 非灼热丝工作温度-55C to 105C

文档与媒体

在线文档
TE.Connect?C=1&PN=643819-6&M=BYPN&LG=1&I=13

相关型号
