644752-4

点击放大查看

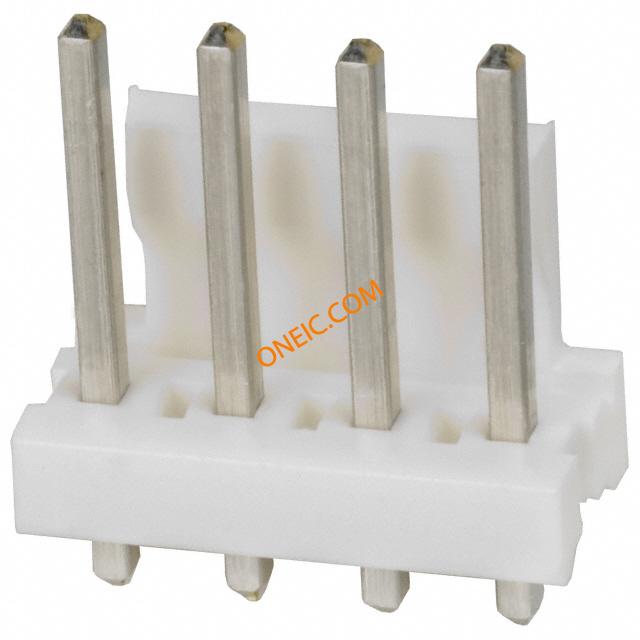

644752-4

制造商
TE Connectivity Ltd.
描述Conn Wire to Board HDR 4 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 4POS .156 TIN Headers & Wire Housings 04P MTA156 HDR ASSY Conn Wire to Board HDR 4 POS 3.96mm Solder ST Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 4Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR HEADER 4POS, 3.96MM MTA-156HEADER-TIN,04PMTA156HDRASSYSQSTRF/L 04P MTA156 HDR ASSY SQ STR F/L
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

产品类别Headers & Wire Housings标准包装数量Bulk
工厂包装数量2000

合规参数

RoHSLead free / RoHS Compliant海关税号85369010
材料阻燃等级UL 94 V-0

电气参数

额定电压600 V开关功能Friction Lock
接触电阻3 mohm最大额定电流7 A
最小供电电压600VAC

机械参数

颜色Natural深度7.62 mm
间距3.96 mm高度13.33 mm
重量0包装方式Bulk
端接方式Solder触头类型Male Pin
外壳颜色Natural安装类型Through Hole
连接器类型Header, Unshrouded接触镀层Tin
紧固类型Friction Lock安装样式Through Hole
排数1触头材料Copper Alloy
壳体材料Polyester总长度15.85 mm
主要材料InterconnectSystem端接样式Through Hole
第一触头极性Pin (Male)触点数4
接触件端接:Through Hole Vertical位数4
接触长度 - 配合0.400" (10.16mm)端子柱长度4.45 mm

产品信息

类型Wire to Board连接器性别HDR
系列MTA-156制造商全称MTA-156
产品子类型Headers应用细节Wire-to-Board
加载位置数All

环境参数

工作温度-55C to 105C

文档与媒体

在线文档
644752-4
