3-640472-4

点击放大查看

3-640472-4

制造商
TE Connectivity Ltd.
描述Conn IDC Connector F 4 POS 3.96mm IDT RA Cable Mount T/R MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 4POS 18AWG .156 ORANGE Headers & Wire Housings 04P MTA156 ASSY ON TAPE LF MTA, CST-100 II, MT-6 and SL Connectors and Headers Product Highlights:MTA-156 ConnectorsNumber of Positions = 4Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 04P MTA156 ASSY ON TAPE LF
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

标准包装规格1,100产品类别Headers & Wire Housings
标准包装数量Bulk工厂包装数量4400

合规参数

RoHSLead free / RoHS CompliantUL等级获得认可
UL档案号E28476CSA档案号LR7189
标准编号CSA, ULCSA分类已认证
材料阻燃等级UL 94V-2

电气参数

额定电压600 VAC开关功能Locking Ramp
供电电压600连接器阻抗IDC
最大额定电流7 A

机械参数

颜色Orange间距3.96 mm
高度9.02 mm [ .355 in ]长度15.85 mm [ .624 in ]
包装方式Tape & Reel (TR)导线类型Discrete or Ribbon Cable
壳体颜色白色电缆类型分离式导线, 绞线
导线线规18 AWG端接方式IDT
触头类型Female Socket安装类型Free Hanging (In-Line)
连接器类型Receptacle接触镀层Tin Over Nickel
触点时序Without紧固类型Locking Ramp
安装样式Wire排数1
壳体镀层Nickel外壳材料（壳体）标准
插入件材料铜合金触头材料Copper Alloy
壳体材料Nylon包装数量1100
面板安装类型不带电缆端接方式IDC
端接样式IDC第一触头极性Socket (Female)
触点数4端接表面处理带有
绝缘直径2.41 mm [ .095 in ]位数4
兼容外壳尺寸（如TM-700等）MTA .156 头安装孔直径不带
接触件表面处理 - 配合锡典型触点布局同轴
表面贴装焊盘尺寸Without接触镀层厚度80µin (2.03µm)
静电放电屏蔽带有护套（绝缘）厚度.762 µm, 30 µin

产品信息

类型IDC Connector连接器性别F
系列MTA-156产品特性Closed End
可密封否产品子类型Connector Assemblies

环境参数

工作温度-55 – 105 °C [ -67 – 221 °F ]

文档与媒体

在线文档
3-640472-4?RQPN=3-640472-4

相关型号

644759-4

644759-4

te connectivity / amp

Conn Wire to Board HDR 4 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 4POS VERT .156 GOLD

详情
647141-4

647141-4

te connectivity / amp

Conn Shrouded Header HDR 4 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 4POS R/A .156 GOLD

详情
644753-4

644753-4

te connectivity / amp

Conn Wire to Board HDR 4 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 4POS .156 TIN Header Vertical 4 way Pin MTA-156 Headers & Wire Housings HDR 04P VRT F-LOCK Conn Wire to Board HDR 4 POS 3.96mm Solder ST Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 4Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP HeaderVertical4wayPinMTA-156 TE Connectivity MTA-156 系列 3.96mm节距 4路 (1排) 直 PCB 针座, 焊接端接, 7A , 通孔 04P MTA156 HDR ASSY RN STR F/L

¥0.9122
详情
643995-4

643995-4

te connectivity / amp

Conn IDC Connector M 4 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN PLUG 4POS 22AWG MTA-156 Headers & Wire Housings 04P MTA156 PSTD CONN CE 22AWG MTA, CST-100 II, MT-6 and SL Connectors and Headers Product Highlights:MTA-156 Posted Wire-to-Wire ConnectorsNumber of Positions = 4Mating Type = PlugConnector Type = Closed EndWire-to-Wire ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 04P MTA156 PSTD CONN CE 22AWG

¥7.9920
详情
647476-4

647476-4

te connectivity / amp

Conn IDC Connector M 4 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN PLUG 4POS 18AWG BLUE .156 Headers & Wire Housings 04P MTA156 PSTD CONN CE 18AWG MTA, CST-100 II, MT-6 and SL Connectors and Headers Product Highlights:MTA-156 Posted Wire-to-Wire ConnectorsNumber of Positions = 4Mating Type = PlugConnector Type = Closed EndWire-to-Wire ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 04P MTA156 PSTD CONN CE 18AWG

¥9.3600
详情
644751-4

644751-4

te connectivity / amp

Conn Unshrouded Header HDR 4 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 4POS .156 TIN Headers & Wire Housings 4P HDR ASSY R/A Conn Unshrouded Header HDR 4 POS 3.96mm Solder RA Thru-Hole Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 04P MTA156 HDR ASSY R/A

¥1.1743
详情
640389-4

640389-4

te connectivity / amp

Conn Wire to Board HDR 4 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 4POS .156 TIN TE Connectivity MTA-156 Series 3.96mm Pitch 4 Way 1 Row Right Angle PCB Header, Solder Termination, 7A Headers & Wire Housings FRCTN LK HDR RA 4P Square post tin Conn Wire to Board HDR 4 POS 3.96mm Solder RA Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 4Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP HEADER, RIGHT ANGLE, 0.156", 4WAY Connector,MTA-156;Male;4;CopperAlloy;7;600;0.156in.;Polyester;White Pin strip 90° 4P, 640389-4, TE Connectivity TE Connectivity MTA-156 系列 3.96mm节距 4路 (1排) 直角 PCB 针座, 焊接端接, 7A , 通孔 04P MTA156 HDR ASSY SQ R/A F/L

¥1.3867
详情
644760-4

644760-4

te connectivity / amp

Conn Wire to Board HDR 4 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 4POS VERT .156 GOLD

详情
暂无图片

641202-4

te connectivity / amp

Conn Unshrouded Header HDR 4 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 4POS STR .156 30GOLD Headers & Wire Housings 04P MTA156 HDR ASSY PL ST 30AU 04P MTA156 HDR ASSY PL ST 30AU 04P MTA156 HDR ASSY PL ST 30AU Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP

¥3.5712
详情
640385-4

640385-4

te connectivity / amp

Conn Unshrouded Header HDR 4 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 4POS .156 TIN Headers & Wire Housings FLAT HEADER R.A. 4P Square post tin Conn Unshrouded Header HDR 4 POS 3.96mm Solder RA Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 4Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 04P MTA156 HDR ASSY SQ R/A

¥0.9144
详情
641522-4

641522-4

te connectivity / amp

Conn IDC Connector M 4 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN PLUG 4POS 18AWG ORANGE .156 Headers & Wire Housings 04P MTA156 POST CON ASSY ORNG Conn IDC Connector M 4 POS 3.96mm IDT RA Cable Mount Product Highlights:MTA-156 Posted Wire-to-Wire ConnectorsNumber of Positions = 4Mating Type = PlugConnector Type = Feed ThruWire-to-Wire ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 04P MTA156 POST CON ASSY ORNG

¥3.6720
详情
3-641210-4

3-641210-4

te connectivity / amp

Conn Wire to Board HDR 4 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RT/A .156 4POS 30AU Headers & Wire Housings FRCTN LK HDR RA 4P Square post gold Conn Wire to Board HDR 4 POS 3.96mm Solder RA Thru-Hole Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR HEADER 4POS, 3.96MM 04P MTA156 HDR FLRA FB 30AU LF

¥6.5088
详情
641524-4

641524-4

te connectivity / amp

Conn IDC Connector PL 4 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN PLUG 4POS 22AWG MTA-156 Headers & Wire Housings 04P MTA156 POST CON ASSY RED MTA, CST-100 II, MT-6 and SL Connectors and Headers Product Highlights:MTA-156 Posted Wire-to-Wire Connectors4 PositionsMating Type = PlugConnector Type = Feed ThruWire-to-Wire ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 04P MTA156 POST CON ASSY RED

¥3.0240
详情
644752-4

644752-4

te connectivity / amp

Conn Wire to Board HDR 4 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 4POS .156 TIN Headers & Wire Housings 04P MTA156 HDR ASSY Conn Wire to Board HDR 4 POS 3.96mm Solder ST Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 4Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR HEADER 4POS, 3.96MM MTA-156HEADER-TIN,04PMTA156HDRASSYSQSTRF/L 04P MTA156 HDR ASSY SQ STR F/L

¥0.8064
详情
644767-4

644767-4

te connectivity / amp

Conn Wire to Board HDR 4 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 4POS VERT .156 GOLD 04P MTA156 HDR ASSY FL ST 15AU 04P MTA156 HDR ASSY FL ST 15AU Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP

¥3.6720
详情
641120-4

641120-4

te connectivity / amp

Conn Wire to Board HDR 4 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 4POS VERT .156 GOLD Headers & Wire Housings 04P MTA156 HDR ASSY FL/ST 15AU Conn Wire to Board HDR 4 POS 3.96mm Solder ST Thru-Hole Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP

¥3.7440
详情

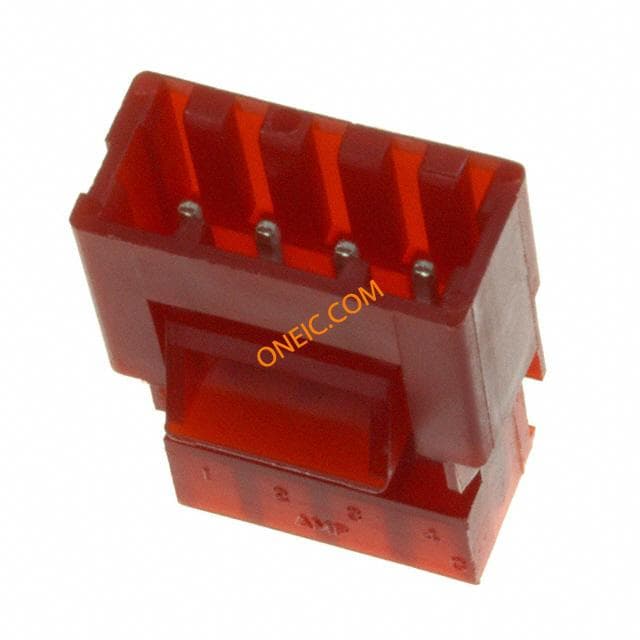

3-641437-4
