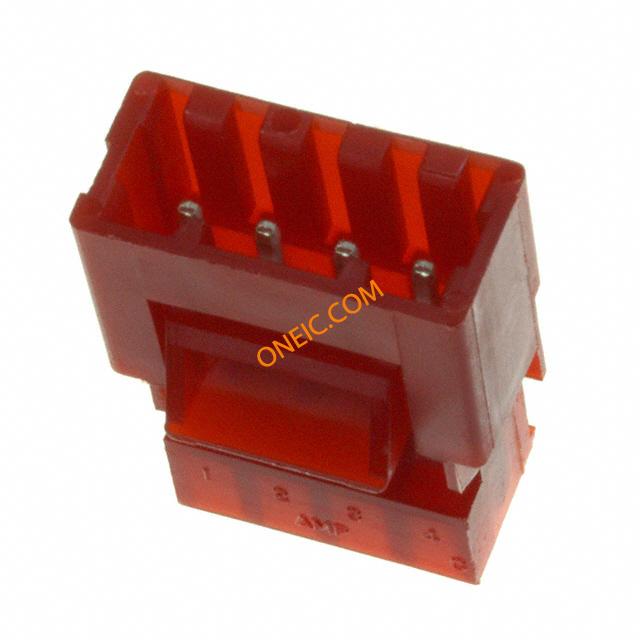

3-641437-4

点击放大查看

3-641437-4

制造商
TE Connectivity Ltd.
描述Conn IDC Connector PL 4 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN PLUG 4POS IDC 22AWG .156 Headers & Wire Housings 4P CLOSED END POSTED 22G RED Conn IDC Connector PL 4 POS 3.96mm IDT RA Cable Mount Product Highlights:MTA-156 Posted Wire-to-Wire ConnectorsNumber of Positions = 4Mating Type = PlugConnector Type = Closed EndWire-to-Wire ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR, PLUG, 4POS, 3.96MM Cable plug, straight 4P, 3-641437-4, TE Connectivity 04P MTA156 PSTD CONN ASSY RED
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

产品类别Headers & Wire Housings标准包装数量Bulk
工厂包装数量1500

合规参数

RoHSLead free / RoHS Compliant海关税号85369010
无铅定义Not relevant for lead free processRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-2

电气参数

额定电压600 V开关功能Ramp Lock
接触电阻3 mohm最大额定电流7 A
最小供电电压600VAC

机械参数

颜色Red深度12.37 mm
间距3.96 mm高度25.65 mm
重量0包装方式Bulk
遮蔽类型Yes导线类型Discrete or Ribbon Cable
出线方向90°导线线规22 AWG
端接方式IDT触头类型Male Pin
第二连接器With触点形状Square
外壳颜色Red安装类型Free Hanging (In-Line)
连接器类型Closed End接触镀层Tin
安装样式Wire排数1
连接器用途Plug触头材料Copper Alloy
壳体材料Nylon总长度19.81 mm
安装特性Without面板安装类型Without
电缆端接方式IDC端接样式IDC
第一触头极性Pin (Male)配接方向Without
触点数4接触件端接:IDC / IDT
位数4典型触点布局3.96 [0.156]
接触镀层厚度80µin (2.03µm)线规或范围 - mm²0.3-0.4² [22]

产品信息

备注MTA-156 posted connectors (Closed End and Feed-Thru) will ONLY mate with MTA-15类型IDC Connector
连接器性别PL系列MTA-156
产品特性Closed End制造商全称AMP
产品子类型MTA-156 Posted Wire-to-Wire Connectors连接类型Wire

环境参数

工作温度-55C to 105C
