644751-4

点击放大查看

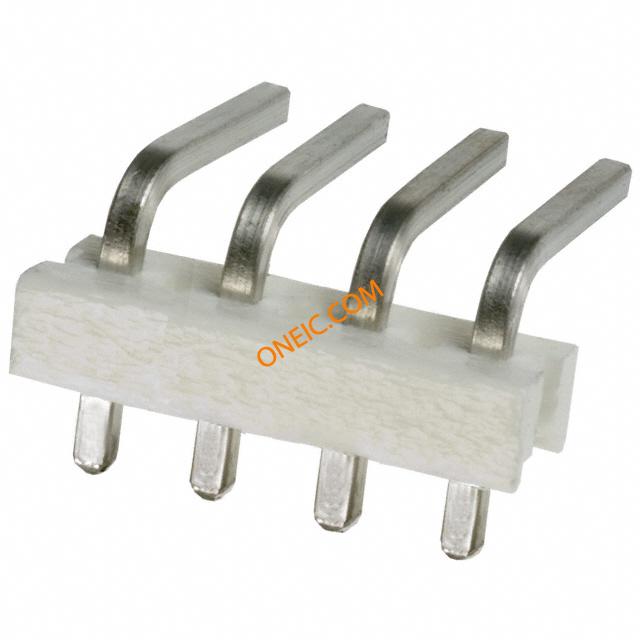

644751-4

制造商
TE Connectivity Ltd.
描述Conn Unshrouded Header HDR 4 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 4POS .156 TIN Headers & Wire Housings 4P HDR ASSY R/A Conn Unshrouded Header HDR 4 POS 3.96mm Solder RA Thru-Hole Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 04P MTA156 HDR ASSY R/A
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

产品类别Headers & Wire Housings标准包装数量Bulk
工厂包装数量2000

合规参数

RoHSLead free / RoHS CompliantUL等级获得认可
UL档案号E28476CSA档案号LR7189
标准编号CSA, ULCSA认证Certified
材料阻燃等级UL 94 V-0

电气参数

额定电压600 V供电电压600
接触电阻3 mohm连接器阻抗焊接
最大额定电流7 A最小供电电压600VAC

机械参数

颜色Natural深度16.25 mm
间距3.96 mm高度5.71 mm
长度15.85 mm [ .624 in ]包装方式Bulk
壳体颜色自然端接方式Solder
触头类型Male Pin触点形状Square
外壳颜色White安装类型Through Hole, Right Angle
连接器类型Header, Unshrouded接触镀层Tin
触点时序Without安装样式Through Hole
排数1壳体镀层Tin
外壳材料（壳体）普通扁平插入件材料铜合金
触头材料Copper Alloy壳体材料Polyester
总长度15.85 mm包装数量1
面板安装类型通孔 - 焊接端接样式Through Hole
第一触头极性Pin (Male)触点数4
端接表面处理不带位数4
兼容外壳尺寸（如TM-700等）MTA .156 连接器组件或 SL .156 连接器组件触头长度-柱电源
安装孔直径不带接触件表面处理 - 配合锡
典型触点布局同轴接触长度 - 配合0.390" (9.91mm)
端子柱长度4.45 mm接触镀层厚度2.54 µm [ 100 µin ]
静电放电屏蔽不带护套（绝缘）厚度1.27 µm, 50 µin

产品信息

类型Unshrouded Header连接器性别HDR
系列MTA-156可密封否
产品子类型Headers应用细节Wire-to-Board
加载位置数All

环境参数

工作温度-55C to 105C封装热阻1.6 mm [ .063 in ]

文档与媒体

在线文档
644751-4

相关型号

641220-4

641220-4

te connectivity / amp
