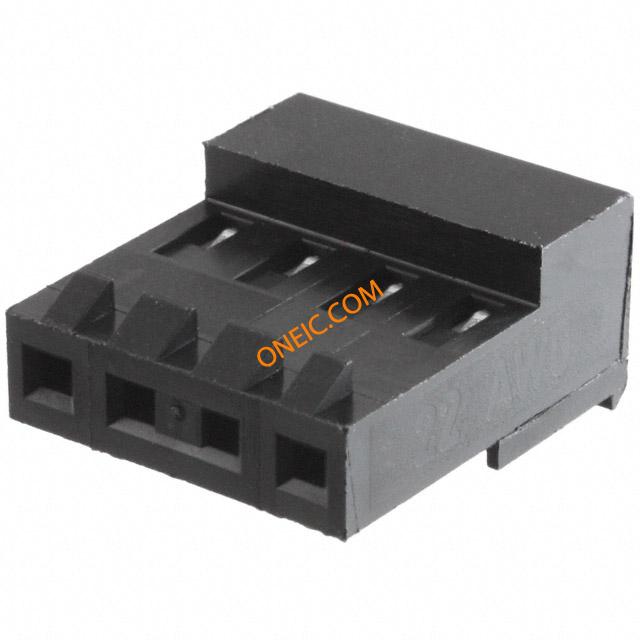

3-644371-4

点击放大查看

3-644371-4

制造商
TE Connectivity Ltd.
描述Conn IDC Connector F 4 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 4POS 22AWG MTA-156 04P MTA156 QUAD ASSY,NO/TBS LF 04P MTA156 QUAD ASSY,NO/TBS LF Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
分类
连接器解决方案矩形连接器FPC/FFC矩形连接器
对参数有疑问？问 AI 助手

商业参数

其他名称36443714标准包装规格1
标准包装数量Bulk

合规参数

RoHSLead free / RoHS Compliant无铅定义Not relevant for lead free process
RoHS/ELV合规状态RoHS compliant, ELV compliant材料阻燃等级UL 94V-0

机械参数

颜色Black间距3.96 mm
包装方式Bulk遮蔽类型No
导线类型Discrete or Ribbon Cable出线方向90°
导线线规22 AWG端接方式IDT
触头类型Female Socket第二连接器With
外壳颜色Black安装类型Free Hanging (In-Line)
连接器类型Closed End接触镀层Tin Over Nickel
紧固类型Locking Ramp排数1
连接器用途Receptacle锁定特性Locking Ramp
触头材料High Conductivity Copper Alloy壳体材料Nylon
安装特性Without面板安装类型Without
电缆端接方式IDC配接方向Without
触点数4位数4
典型触点布局3.96 [0.156]接触镀层厚度80µin (2.03µm)
恢复后小径No线规或范围 - mm²0.3-0.4² [22]

产品信息

备注Mates with tin-plated square posts only类型IDC Connector
连接器性别F产品特性Closed End
制造商全称AMP产品子类型MTA-156 Connectors
连接类型Wire跳过的位置数None
