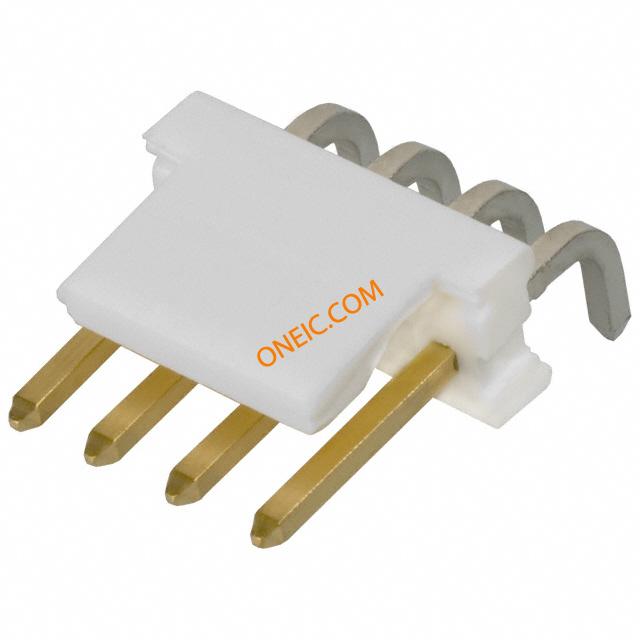

641210-4

点击放大查看

641210-4

制造商
TE Connectivity Ltd.
描述Conn Wire to Board HDR 4 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RT/A .156 4POS 30AU Headers & Wire Housings FRCTN LK HDR RA 4P Square post gold Conn Wire to Board HDR 4 POS 3.96mm Solder RA Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 4Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 04P MTA156 HRD FL RA FB 30AU
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

其他名称A26187产品类别Headers & Wire Housings
标准包装数量Bulk工厂包装数量1

合规参数

RoHSContains lead / RoHS non-compliantUL等级获得认可
零件状态E28476CSA档案号LR7189
标准编号CSA, ULCSA认证Certified
UL阻燃等级UL 94V-0材料阻燃等级UL 94 V-0

电气参数

额定电压600 V开关功能Friction Lock
供电电压600最大额定电流7 A

机械参数

颜色Natural间距3.96 mm
高度10.8 mm [ .425 in ]长度15.85 mm [ .624 in ]
密封型Not Sealed包装方式Bulk
端接方式Solder触头类型Male Pin
安装类型Through Hole, Right Angle连接器类型Header, Unshrouded
接触镀层Gold Over Nickel触点时序Without
紧固类型Friction Lock安装样式不带
引脚数4排数1
封装形式Plug壳体镀层Nickel
插入件材料铜合金触头材料Copper Alloy
壳体材料Polyester包装数量2000
面板安装类型通孔 - 焊接端接样式Through Hole
第一触头极性Pin (Male)触点数4
位数4兼容外壳尺寸（如TM-700等）MTA .156 连接器组件或 SL .156 连接器组件
安装孔直径不带接触件表面处理 - 配合锡铅
典型触点布局直插式接触长度 - 配合0.400" (10.16mm)
端子柱长度3.18 mm接触镀层厚度30µin (0.76µm)
静电放电屏蔽不带直角致动器长度Front

产品信息

类型Wire to Board连接器性别HDR
系列MTA-156产品子类型Headers
应用细节Wire-to-Board加载位置数All

环境参数

测试温度标准件 - 非灼热丝工作温度-55 – 105 °C [ -67 – 221 °F ]
封装热阻2.36 mm [ .093 in ]
