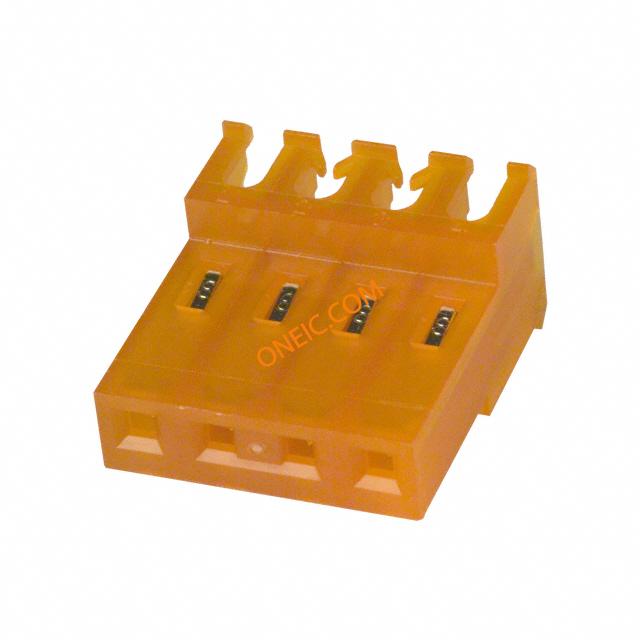

3-640604-4

点击放大查看

3-640604-4

制造商
TE Connectivity Ltd.
描述Conn IDC Connector F 4 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 4POS 18AWG MTA156 MTA, CST-100 II, MT-6 and SL Connectors and Headers Product Highlights:MTA-156 ConnectorsNumber of Positions = 4Mating Type = ReceptacleConnector Type = Feed ThruWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 04P MTA156 CONN ASSY 18AWG LF
分类
连接器解决方案矩形连接器FPC/FFC矩形连接器
对参数有疑问？问 AI 助手

商业参数

标准包装规格250标准包装数量Bulk

合规参数

RoHSLead free / RoHS CompliantUL等级获得认可
零件状态E28476CSA档案号LR7189
标准编号CSA, ULCSA分类已认证
UL阻燃等级UL 94V-2

电气参数

供电电压600连接器阻抗刺破式压接 (IDC)
最大额定电流7

机械参数

颜色Orange间距3.96 mm
高度9.78 mm [ .385 in ]长度15.85 mm [ .624 in ]
密封型Not Sealed包装方式Bulk
导线类型Discrete or Ribbon Cable壳体颜色橙色
电缆类型分离式导线导线线规18 AWG
端接方式IDT触头类型Female Socket
安装类型Free Hanging (In-Line)连接器类型Receptacle
接触镀层Tin Over Nickel触点时序Without
安装样式不带引脚数4
排数1壳体镀层Nickel
外壳材料（壳体）标准外形插入件材料铜合金
壳体材料尼龙包装数量250
面板安装类型不带电缆端接方式IDC
端接样式插座触点数4
绝缘直径2.41 mm [ .095 in ]位数4
外壳尺寸-插件母端, 母端兼容外壳尺寸（如TM-700等）MTA .156 公端
安装孔直径不带接触件表面处理 - 配合锡
典型触点布局直插式接触镀层厚度80µin (2.03µm)
静电放电屏蔽带有护套（绝缘）厚度30 µm [ .762 µin ]

产品信息

类型IDC Connector连接器性别F
产品特性Feed Through产品子类型连接器组件
安装类型Feed Through输出配置90°

环境参数

测试温度标准件 - 非灼热丝工作温度-55 – 105 °C [ -67 – 221 °F ]
