640389-4

点击放大查看

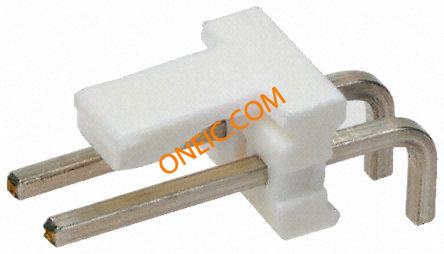

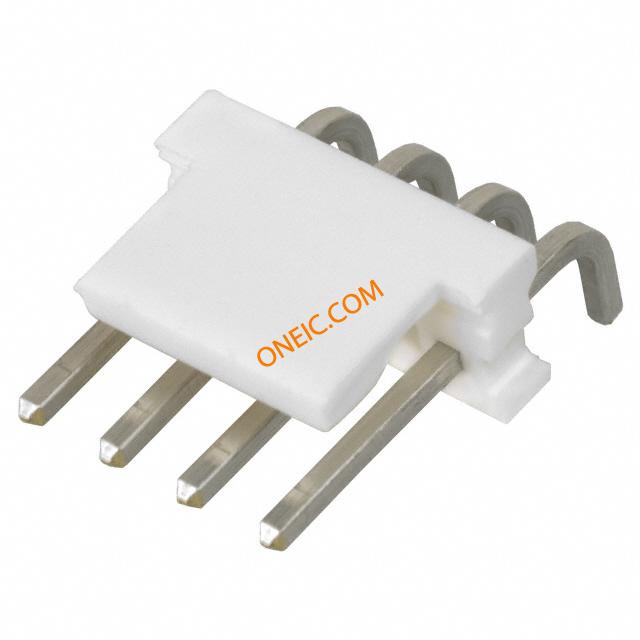

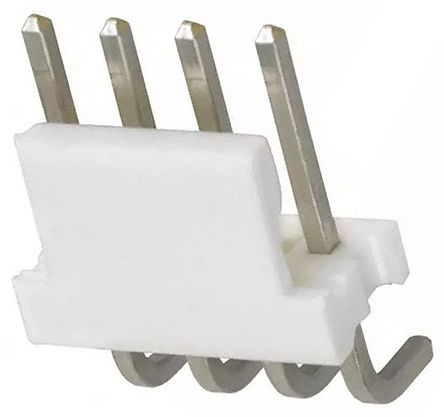

640389-4

制造商
TE Connectivity Ltd.
描述Conn Wire to Board HDR 4 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 4POS .156 TIN TE Connectivity MTA-156 Series 3.96mm Pitch 4 Way 1 Row Right Angle PCB Header, Solder Termination, 7A Headers & Wire Housings FRCTN LK HDR RA 4P Square post tin Conn Wire to Board HDR 4 POS 3.96mm Solder RA Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 4Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP HEADER, RIGHT ANGLE, 0.156", 4WAY Connector,MTA-156;Male;4;CopperAlloy;7;600;0.156in.;Polyester;White Pin strip 90° 4P, 640389-4, TE Connectivity TE Connectivity MTA-156 系列 3.96mm节距 4路 (1排) 直角 PCB 针座, 焊接端接, 7A , 通孔 04P MTA156 HDR ASSY SQ R/A F/L
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

产品类别Headers & Wire Housings标准包装数量Bulk
工厂包装数量1

合规参数

RoHSLead free / RoHS Compliant标准UL94V-0HousingFlammabilityRating,RoHSCompliant,ELVCompliant
海关税号85369010认证机构CSA,UL
材料阻燃等级UL 94 V-0

电气参数

量程（°/s）:TE - MTA-156 Series额定电压600 V ac
开关功能Friction Lock工作电压:250V
接触电阻3 mohm最大额定电流7A
最小供电电压600VAC

机械参数

颜色Natural深度18.72 mm
间距3.96 mm高度7.62 mm
重量0.002包装方式Bulk
导线线规26-18端接方式Solder
触头类型Male Pin引脚间距:3.96mm
引脚长度（针脚）0.125"外壳颜色White
安装类型Through Hole, Right Angle行程角度Right
连接器类型Header, Unshrouded接触镀层Tin Over Nickel
紧固类型Friction Lock安装样式Through Hole
排数1触头材料Copper Alloy
壳体材料Polyester总长度15.85 mm
主要材料InterconnectSystem插针孔直径0.156"
端接样式Through Hole第一触头极性Pin (Male)
触点数4接触件端接:Through Hole Right Angle
绝缘直径0.095"(SingleWire),0.07"(MassTerminationWires)位数4
中心触点镀层工艺0.156in.柱体长度（配合）0.125in.
安装孔直径0.07"接触长度 - 配合0.400" (10.16mm)
端子柱长度3.18 mm

产品信息

类型Wire to Board连接器性别HDR
系列MTA-156产品特性IDC,Pinstrip
制造商全称MTA-156Series产品子类型Headers
应用细节Wire-to-Board加载位置数All

环境参数

工作温度-55C to 105C

文档与媒体

PDF 文档
99997.pdf
在线文档
TE.Connect?C=1&PN=640389-4&M=BYPN&LG=1&I=13
在线文档
640389-4
